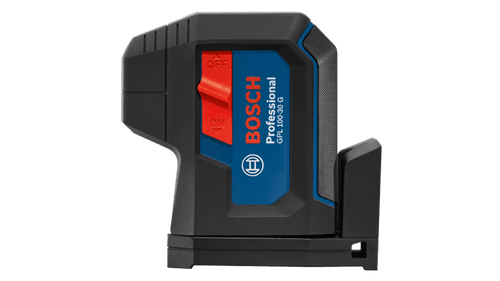

Bosch BOS-GPL100-30G Green-Beam Three-Point Self-Leveling Alignment Laser


The Bosch GPL100-30G features a three-point, self-leveling laser with ±1/8 In. accuracy at 30 Ft. for up/down plumb, align and level applications. This unit features green-beam technology, which is up to 4X brighter than standard red beams. It also has the Bosch-exclusive VisiMax technology, which delivers maximum beam brightness in most jobsite conditions. The unit includes point projection to the front, so it can be used in a variety of positions for flexibility on the job. It is faster than a standard manual plumb bob. The unit includes several durability features, such as the Smart Pendulum System to lock the laser when switched off, 360 degree rotation, a hard carrying case and full rubber overmold housing. The integrated multipurpose laser mount features strong magnets and allows the user to mount the laser virtually anywhere.


  • (1) GPL100-30G Green-Beam Three-Point Self-Leveling Alignment Laser
  • (1) Built-In Multipurpose Mount
  • (2) AA Batteries
  • (1) Hard Carrying Case


  • Three-point plumb and level point projection – accurately transfers and aligns level, plumb, 90° and grade points
  • Built-in VisiMax technology – monitors power consumption to maximize line visibility and extend battery life
  • Bright green-beam laser – up to 4X brighter than standard red beams
  • Full rubber overmold housing – helps to protect every major impact point, with a design similar to a roll cage
  • Smart Pendulum System – allows tool to self-level, and it indicates out-of-level condition
  • Secure laser transport – after switching off, pendulum is locked, plus 360 degree rotation for extra protection
  • Integrated multipurpose laser mount – positions and mounts with magnets or threaded mounts (1/4 In.-20)


  • Height: 4.5"
  • IP Rating: IP 65
  • Laser Beam Color: Green
  • Laser Diode: Class 2, 500-540 nm
  • Length: 4.5"
  • Leveling Type: Self-Leveling, Up to 4°
  • Material: Plastic
  • Mount Threading: 1/4-20
  • Range: Up to 125-ft.
  • Weight: 0.77lb
  • Width: 2.0"
  • Works With
    • Tripod: BT 150
    • Telescoping Pole System: BP350
    • Mounts and Positioning Devices: BM 1, BM3, LB10, MM 2
