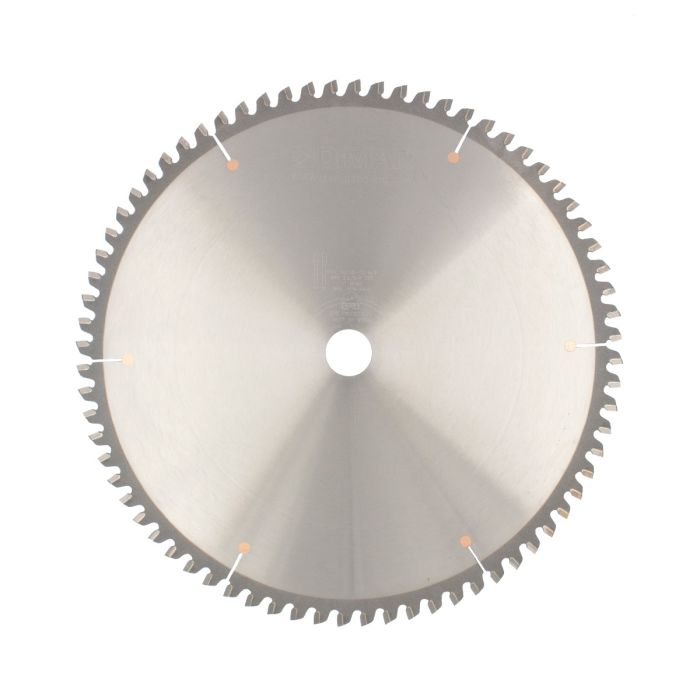

Dimar DIM-12-72-NF 12in Dia, Carbide Tipped, Non Ferrous Saw Blade, .126" (3.2mm) Kerf, 72 Teeth, MTCG

$159.99
Brand:
SKU:
DIM-12-72-NF

For cutting aluminum sheets, tubing extrusions, and other nonferrous metals such as copper, brass, lead, and magnesium. For smooth cutting, use lots of lubricants and a clamping device.

Note: The material must be clamped firmly to the table on both sides during the cutting operation. The use of coolant is very important.

  • Carbide tipped for maximum performance
  • This blade is furnished with a Negative 6° hook angle for a reasonable finish
  • This hook angle prevents self-feeding of materials and gives the operator maximum control over the feed of the cut

Specifications

  • Diameter 12"
  • Teeth 72
  • Kerf (B) .126” (3.2mm)
  • Bore 1"

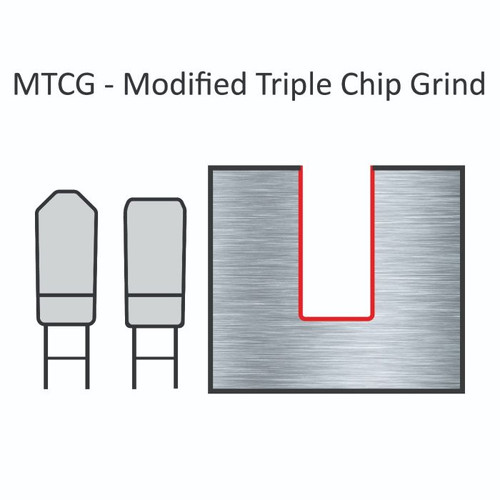

  • Grind MTCG- Modified Triple Chip Grind
  • Hook Angle - 6°
  • Technology Carbide Tipped
  • Material Non-Ferrous Material
  • Tools Miter Saw, Sliding Miter Saw , Radial Arm Saw, Stationary Table Saw, Vertical Panel Saw
  • Max. RPM 4,400
