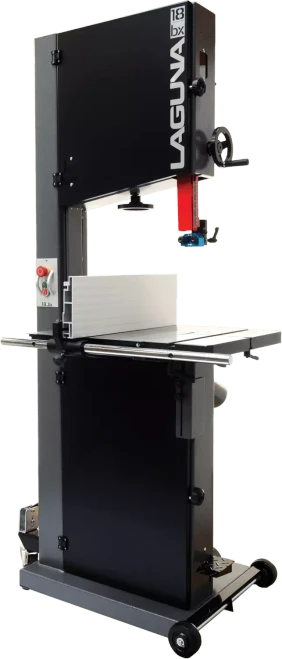

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145in (368 cm) blade for consistent results, cut-after-cut, regardless of material.
Specifications
- Motor: 3HP, 220V, 1 Ph. 12 Amp.
- Recommended Breaker: 20 Amp.
- Magnetic Starter: Yes
- Min-Max Blade Width: 1/8in - 1-1/4in
- Resaw Capacity: 16in
- Throat: 18in
- Blade Length: 145in

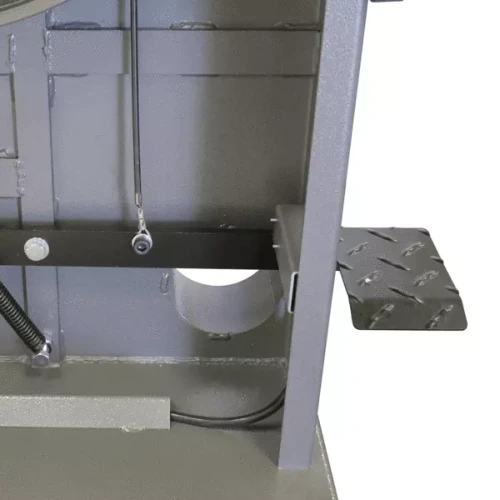

- Disc-Brake with Micro Switch: Yes
- 220V Outlet on Back for Light: Yes
- Window for Tension: Yes
- Window for Tracking: Yes
- Magnetic Blade Tension Guide: Yes
- Worm Gear & Pinion Upper Guide: Yes
- 10 Point Laguna Ceramic Guides: Yes
- Flat Poly-Groove Drive Belt: Yes
- Premium Anodized Insert with Micro Adjustment: Yes
- Dynamically Balanced Cast Iron Wheels: Yes
- Urethane Single Piece Snap-on Tire: Yes
- Cast Table Size: 20 x 26in
- Table Tilt: -6°, +45°
- Quick-Release Tension: Yes
- Hi/Low Anodized Aluminum Fence: 22-1/2 x 5-3/4 x 1/2in
- Table Height: 38in
- Dust Ports: 2 x 4in
- Overall Height: 77-3/4in
- Dimensions, Base: 27 x 20in
- Dimensions Overall: 36 x 30in
- Dimensions Box: 82 x 34 x 24in
- Weight (Net/Ship): 410/460 Lbs.
