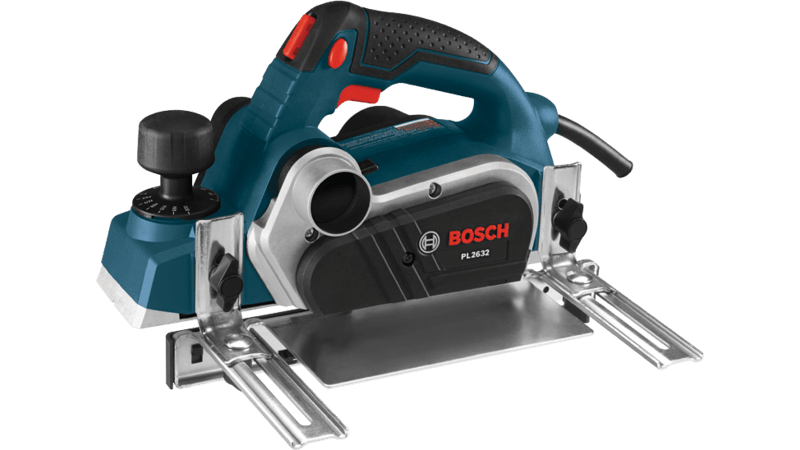

The Bosch PL2632K 3-1/4 In. Planer Kit features a tool with a 6.5 Amp motor that produces 16,500 RPM for fast stock removal and smooth finishes. The aluminum front and rear shoes are precision-machined together for accuracy, and the tool has a machined groove for chamfering. The tool also provides a spring-loaded stand that elevates the planer to protect the blade and the tool-resting spot. Equipped with reversible Bosch Woodrazor Micrograin carbide blades, the Bosch PL2632 gives users the option of a two-blade system to accommodate high-speed steel blades (optional accessories are required). The dual-mount guide fence can be mounted on either side of tool, and its plastic overshoe prevents marring of door or workpiece face. The tool's ambidextrous lock-off release button helps prevent avoid accidental starts, and it has a lock-on button for extended operation, a combination that is unique to Bosch planers. The chip-ejection switch can be moved to discharge the shavings left or right, and dust ports are located on both sides of the tool to accommodate a large shavings bag. This planer is built with a poly micro-V drive belt for enhanced belt durability and a ball-joint cord swivel for enhanced ease of positioning the tool and cord.

Includes

• (1) PA1202 Woodrazor Mini Micrograin Blades (2)
• (1) Dual-Mount Guide Fence
• (1) Straight No-Mar Plastic Overshoe for Fence
• (1) PA209 3-Degree No-Mar Plastic Overshoe for Fence
• (1) PL2632 3-1/4 In. Planer
• (1) Shavings Bag
• (1) Blade Wrench
• (1) Carrying Case

Features

• 6.5 Amp motor producing 16,500 RPM – for fast stock removal and smooth finish
• Dual-mount guide fence – mounts to either side of tool and helps ensure consistent Planing through entire workpiece; includes protective shield and 0° and 3° no-mar plastic overshoes
• Ambidextrous lock-off release button – helps prevent accidental starts; includes a lock-on button for extended operation
• Aluminum front and rear shoes – precision-machined together after assembly to ensure accuracy
• Ratcheting depth knob – for foolproof depth-increment setting 0 to 2.6 mm (3/32 In.) within one revolution, eliminating the need to re-zero the depth
• Ejection control – allows shavings to be directed left or right
• Ball-joint cord swivel – for enhanced ease of positioning the tool and cord
• Reversible Bosch Woodrazor Micrograin carbide blades – lasts up to 30% longer than standard carbide blades
• Versatile two-blade system – can be converted for use with large high-speed steel blades (optional accessories required)
• Spring-loaded stand elevates tool – protects blade and tool resting spot
• Separate inch and metric depth scales – for easy setting of Planing depth
• Machined groove – for chamfering
• Poly micro-V drive belt – provides enhanced belt durability

Specifications

• Amperage: 6.5
• Case Type: Heavy-duty plastic
• Height: 6.5in
• Length: 11.125in
• No Load RPM: 16,500
• Planing Depth: 0in - .09375in
• Planing Width: 0in - 3.25in
• Power Source: Corded
• Rabbet Depth: 5/16in
• Rabbet Width: 3-1/4in
• Rating: 120V AC
• Voltage: 120V
• Weight: 6.3lb
• Width: 6.5in

Recommendations

• VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses
• VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses
• VAC002
• VAC020
