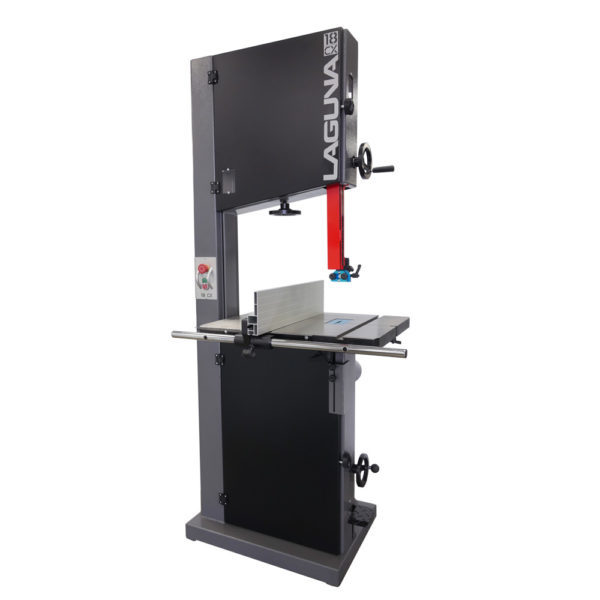

Laguna LAG-MBAND18CX110175 18 Cx Bandsaw for Metal & Wood

$5,299.00
Brand:
SKU:
LAG-MBAND18CX110175
LAG-BBPF-150-1/4XX,LAG-MBA18BX-CX-WS,LAG-ALAREVO18-LIGHT,LAG-BBPF-145-1/2XX,LAG-BBPF-145-1/4XX,LAG-BBPF-145-3/4XX,LAG-BBPF-145-3/8XX,LAG-BBRK-145-1-1/4XX,LAG-BBRK-145-1XX,LAG-BBRK-145-3/4XX,LAG-BBSF-145-1/2XX,LAG-BBSF-145-1XX,LAG-BBSF-145-5/8XX

The 18|CX Bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw.

The 18|CX features variable speed control to cut through metals and wood with ease.

Specifications

  • Part Number: MBAND18CX110175
  • Motor: 1.75HP, 100V, 14/7 Amp.
  • Recommended Breaker: 20 Amp.
  • Magnetic Starter: Yes
  • Min-Max Blade Width: 1/8-1-1/4in
  • Resaw Capacity: 16in
  • Throat: 18-7/32in
  • Blade Length: 145in
  • Disc-Brake with Micro Switch: Yes
  • 110V Outlet on Back for Light: Yes
  • Window for Tension: Yes
  • Window for Tracking: Yes
  • Magnetic Blade Tension Guide: Yes
  • Worm Gear & Pinion Upper Guide: Yes
  • 10 Point Laguna Ceramic Guides: Yes
  • Mechanical Variable Speed Drive: Yes
  • Low Blade Speed: 100-290 FPM
  • High Blade Speed: 1200-3500 FPM
  • Anodized Insert w/Micro Adjustment: Yes
  • Dynamically Balanced Cast Iron Wheels: Yes
  • Urethane Single Piece Snap-on Tire: Yes
  • Cast Table Size: 20 x 26in
  • Table Tilt: -6°, +45°
  • Quick-Release Tension: Yes
  • Hi/Low Anodized Aluminum Fence: 22-3/4 x 7-1/4 x 11/16in
  • Table Height: 38in
  • Dust Ports: 2 x 4in
  • Overall Height: 77-3/4in
  • Dimensions, Base: 27 x 20in
  • Dimensions Overall: 38 x 36in
  • Dimensions Box: 82 x 34 x 36in
  • Weight (Net/Ship): 480/545 Lbs.
