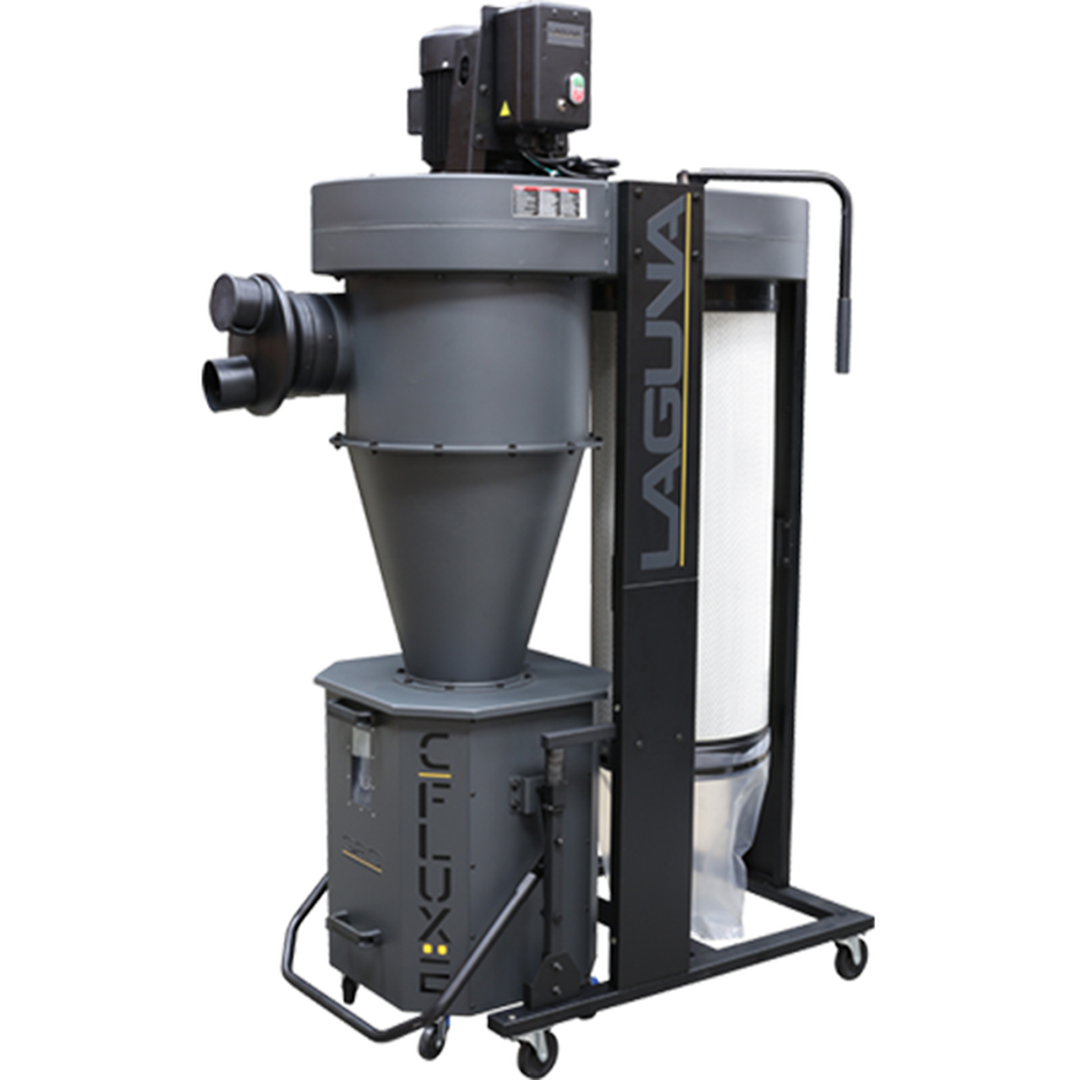

Laguna LAG-MDCCF22201 C|Flux 2HP Cyclone Dust Collector

$3,199.00
Brand:
SKU:
LAG-MDCCF22201
LAG-P-6142423011-S,KING-K-1033-50,IVAC-PBG-04-NA,KING-K-1054

The C|Flux series, a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance.

The C|Flux:2 comes standard with a 1 micron canister providing filtration of 99.7% of particles 1 micron or larger & features 109 sq./ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.

This design allows for much better portability as you are not forcing 4 wheels into the floor while pushing the unit.

Specifications

  • Motor HP: 2 HP
  • Phase: 1
  • Voltage: 220v
  • Amps: 14 Amps
  • Recommended Breaker: 20 AMP
  • Hertz: 60
  • Plug: No
  • RPM: 3450
  • Switch type: Radio Frequency Remote switch – Black Box
  • Hand held remote control: HF
  • Shop Setting CFM: 1166
  • Inlet CFM: 1740
  • Max Static Pressure (inches of water): 9.3in
  • Impeller/Fan Size: 14.5in
  • Impeller Material: Steel
  • Impeller type: Radial Fin
  • Balanced To:: ISO 1940
  • Inlet Diameters: 8in main to  4in x 2 ports
  • Drum Capacity: 46 Gal.
  • Octagon drum: Metal drum insert
  • Drum collection bag (Dia. x L): Plastic bag (610 x 950mmL)
  • Canister Filter type: 1 Micron
  • Filtration efficiency: 0.2-2micron @ 99.97%
  • MERV rating: 12
  • Canister diameter: 400mm (15.75in)
  • Canister length: 900mm (19.69in)
  • Filter Surface Area: 9.5m²/109ft²
  • Canister cleaning: Manual Handle Crank
  • Canister filter lower dust collection: Plastic bag (400 x 600mmL)
  • Base with perforated sheet across canister floor: N/A
  • Wheels: 4in Flat Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 88 d B(A) (@9.8ft)
  • Machine weight: 134kgs/296Lbs
  • Shipping weight: 165kgs/364Lbs
  • Assembled Dimensions (L x W x H): 46 x 27 x 79in | 1178x690x2025mm
