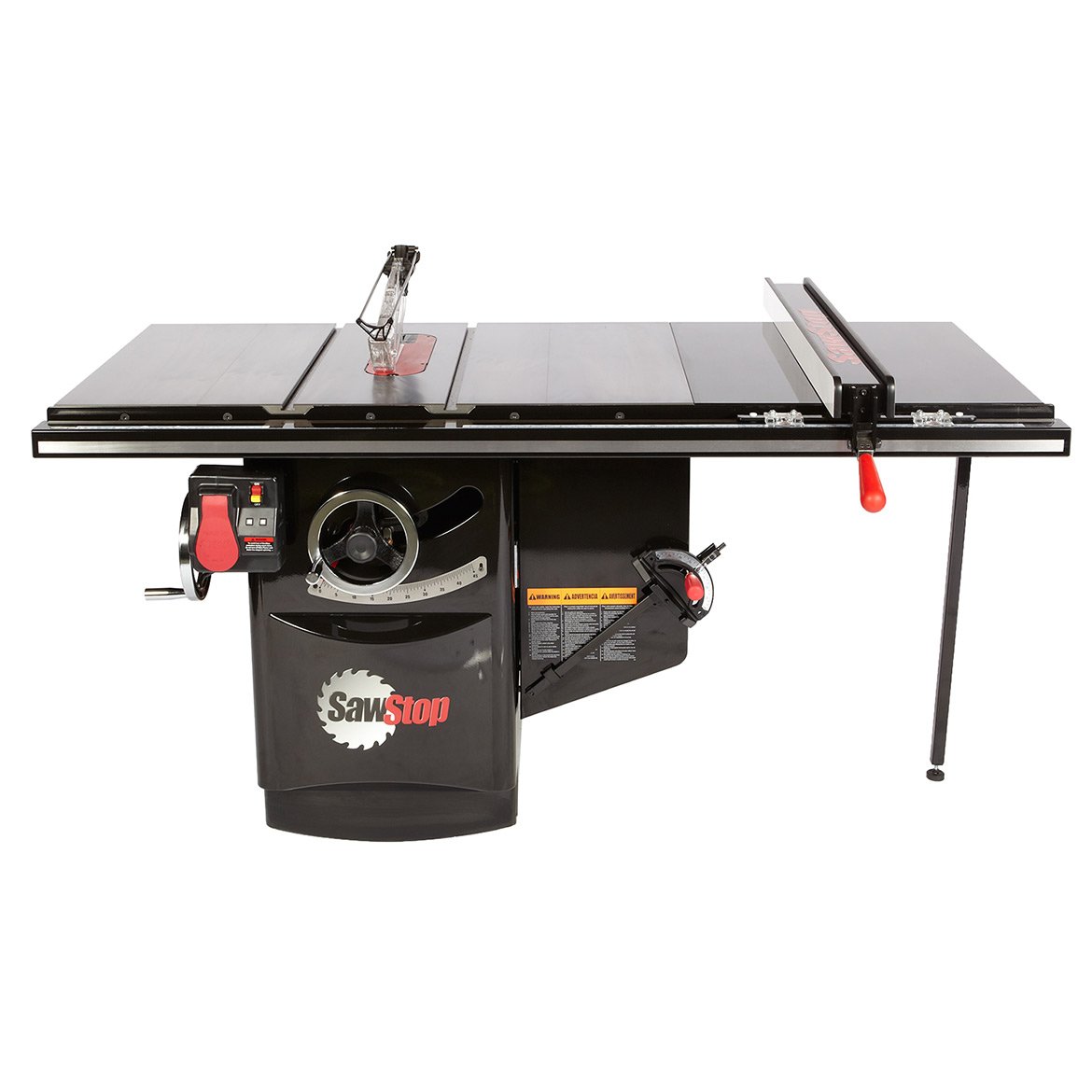

Sawstop SAW-ICS31230-36 ICS 3HP 230V Industrial Cabinet Saw 36" T-Glide Fence System

$5,615.00
SKU:
SAW-ICS31230-36

The SawStop 10" Industrial Cabinet Saw is the reference by which all other saws are measured—precise, heavy-duty construction, the revolutionary safety feature that’s made SawStop famous, and a 99% dust collection system that’s second-to-none. It is, simply put, the finest SawStop saw ever made.

Plus, it's equipped with a safety brake that stops the blade and shuts off the motor on contact with skin. The blade carries a small electrical signal, and when skin contacts the blade, the signal changes because the human body is conductive. The safety system activates within 5 milliseconds! Watch the video below to see the SawStop safety system in action:

  • Fully enclosed cabinet, with safety lockout switches
  • Cabinet, rails, tube and fence constructed with heavy-gauge steel
  • Heavy-duty cast iron trunnion
  • Large hand wheels for easy adjustment
  • Industrial lock-out/tag-out switch and interrupt switches on all access doors
  • Riving knife minimizes kickback
  • Two fence options available:
  • Industrial 36" T-Glide Fence Assembly with 36" rip capacity | Dimensions: 69-1/4" w x 36-1/2" d x 34" h
  • Industrial 52" T-Glide Fence Assembly with 52" rip capacity | Dimensions: 85-1/4" w x 36-1/2" d x 34" h

Specifications:

  • Motor: (ICS31230) 3 hp, 1 phase, 230V, 13 A
  • Cabinet footprint: 20" w x 25" d
  • Cast iron table: 24" w x 30" d
  • Extension wings: 10" w x 30" d each
  • Shipping weight (approx.): 640 lb (table saw only)
  • Blade diameter: 10"
  • Blade tilt: left
  • Max. depth of cut, blade at 0º: 3-1/8"
  • Max. depth of cut, blade at 45º: 2-1/4"
  • Max. rip, right of blade: 36-1/2" (with 36" rails) / 52-1/2" (with 52" rails)
  • Max. rip, left of blade: 12-1/2"
  • Dado capacity: 13/16" (8" dado)
  • Dust collection port diameter: 4"


Includes:

  • Cast iron extension wings (2)
  • Miter gauge
  • Dust collection blade guard
  • Riving knife
  • Blade wrenches (2)
  • Push stick
  • 10" blade
  • Standard brake cartridge
  • Owner’s manual
  • Hardware packs
  • 3 mm hex key
  • 5 mm hex key
  • 8 mm hex key
  • Blade spacing adjustment gauge
