SET-3G is an epoxy-based anchoring adhesive with high design strength and proven performance. SET-3G is a 1:1 ratio, two-component, anchoring adhesive for concrete (cracked and uncracked). SET-3G installs and performs in a variety of environmental conditions and temperature extremes.
Features:
- Exceptional performance - superior bond strengths permit ductile solutions in high seismic areas.
- Design flexibility- improved sustained load performance at elevated temperature.
- Jobsite versatility can be specified for all base material conditions when in-service temperatures range from -40°F (-40°C) to 176°F (80°C).
- Recognized per ICC ES AC308 for post-installed rebar development and splice length design provisions.
- Approved for installation with multiple vacuum-drill bit systems without further hole cleaning. See Code Report (ESR-4057) and Engineering Letter for approved systems.
- Wire brush hole-cleaning system for conventional blow-brush-blow cleaning method for anchoring.
- With higher bond strengths, ductile solutions can often be achieved with SET-3G in high seismic areas.
- Low-Odor formulation.
- Manufactured in the USA using global materials.

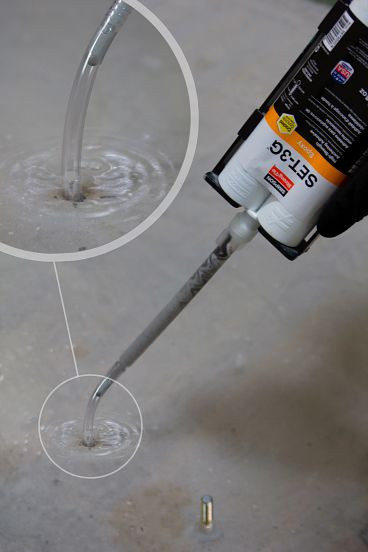

- During the installation of SET-3G, when the correct installation processes are followed, there is no performance difference between water-saturated concrete, water-filled holes, or submerged concrete.
- For use with potable water.
- Mix Ratio/Type: 1:1 epoxy
- Mixed Color: Gray
- Base Materials: Concrete and masonry — cracked and uncracked
- Base Material Conditions: Dry, water-saturated, water-filled and submerged
- Anchor Type: Threaded rod or rebar
- Substrate Installation Temperature: 40°F (4°C) to 100°F (38°C)
- In-Service Temperature Range: -40°F (-40°C) to 176°F (80°C)
- Storage Temperature: 45°F (7°C) and 90°F (32°C)
- Shelf Life: 24 Months
- Volatile Organic Compound (VOC): 2 g/L
Specifications:
- Option: 8.5-oz. coaxial cartridge Includes (1) EMN22i mixing nozzle and (1) extension
- Package Quantity: 1
- Carton Qty.: 12
- Compatible Tools: CDT10S dispensing tool / EMN22i mixing nozzle
Applications:
- Threaded rod anchor and rebar dowel installations in cracked and uncracked concrete under a wide variety of environmental installation and use conditions
- Installation in downward, horizontal and upwardly inclined (including overhead) orientations
- Qualified for use in structures assigned to Seismic Design Categories A through F
Installation:
- Surfaces to receive epoxy must be clean per approved hole cleaning method.
- Base-material temperatures must be 40°F (4°C) or above at the time of installation. For best results, adhesive should be conditioned to a temperature between 70°F (21°C) and 80°F (37°C) at the time of installation.
- To warm cold adhesive, store cartridges in a warm, uniformly heated area or storage container. Do not immerse cartridges in water or use microwave to facilitate warming.
- Mixed material can harden in the dispensing nozzle within 30 minutes at 70°F (21°C).
- Use only Simpson Strong-Tie mixing nozzles in accordance with Simpson Strong-Tie instructions. Modification or improper use of mixing nozzle may impair SET-3G adhesive performance.
Test Criteria:
- SET-3G has been tested in accordance with ICC-ES AC308, ACI 355.4 and applicable ASTM test methods.
