Overview:

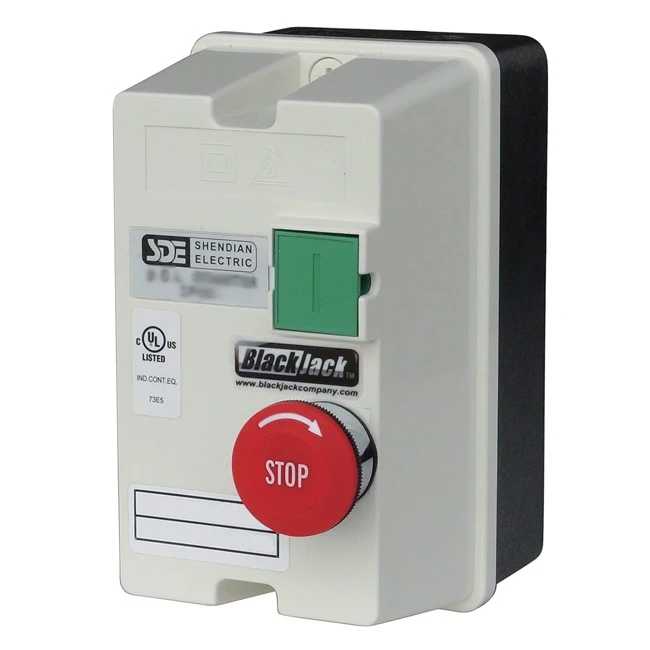

The BlackJack 16300 is a CSA-approved magnetic disconnect switch rated for 110-120V single-phase motors drawing 8 to 12 amps (0.75 hp and 1 hp). Magnetic disconnect switches prevent machinery from restarting automatically after a power interruption — the motor stays off until the operator presses the green start button again. The switch also protects the motor from thermal overload by limiting available current. A wiring diagram is included inside the cover. Dimensions are 3-3/8in wide x 6-1/2in high x 5-1/2in deep. Professional installation by a qualified electrician is recommended.
Features:
- Magnetic disconnect prevents unexpected automatic restart after a power interruption — operator must press green start button to resume
- Thermal overload protection limits current to safeguard the connected motor
- Rated for 110-120V single-phase, 8 to 12 amp motors (0.75 hp and 1 hp)
- CSA approved
- Wiring diagram included inside the cover
Specifications:
- Voltage: 110-120V
- Amperage: 8 to 12A
- Motor Rating: 0.75 hp and 1 hp
- Phase: Single Phase
- Certification: CSA Approved
- Dimensions: 3-3/8in W x 6-1/2in H x 5-1/2in D
