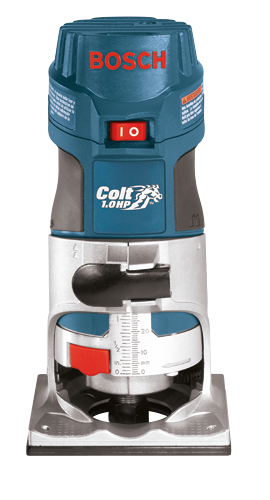

The Bosch PR20EVS Colt electronic variable-speed palm router combines power, precision and versatility in a small-sized tool. It has a 1.0 HP, 5.6 Amp motor that spins at a variable speed of 16,000 to 35,000 RPM. The variable speed dial is conveniently mounted on top of the tool body. The router features Constant Response circuitry, which maintains a consistent speed by detecting heavy loads and increasing power to maintain the selected RPM. It features soft-start circuitry, which reduces startup torque. Additionally, depth adjustment is simple; just align and lower the motor and then lock the router in position with the clamping level. Micro-fine adjustments are equally effortless, thanks to the wheel on the back of the router's base. It accepts standard 1/4 In. bits for flexibility, with an impressive max cutter diameter of 1-5/16 In. The motor housing has a palm-shaped, rubber over-molded grip that allows for comfortable operation. And the included rugged aluminum fixed base is durable, solid and precise.
Features:
- Powerful 5.6 Amp motor – produces 1.0-hp max. and 16,000 to 35,000 RPM
- Rugged aluminum fixed base — durable, solid and precise
- Fast and precise depth adjustment system — allows both macro and micro adjustment
- Unique finger support pockets — for additional stability, especially when trimming edges
- Enhanced bit capacity — fixed base accepts bits up to 1-5/16 In. in diameter
- Soft-start circuitry — reduces start-up torque
- Constant Response circuitry — monitors and maintains speed under load for consistent performance
- Versatile bit-changing system – fast, easy bit changes using two wrenches or spindle lock and one wrench
- Quick-clamp system — allows motor to be easily adjusted or moved from base to base
- Palm-grip design with soft grip — the most comfortable router in its class
- Angled cord exit — helps keep cord out of the way
- Variable speed dial — for matching speed to workpiece and task
Specifications:
- Amperage: 5.6
- Base Opening: 1-9/16"
- Case Type: No Case Included
- Collet Capacity: 1/4"
- Dust Collection: No
- Fixed-Base Depth Range: 1-3/16"
- Height: 7.5 in
- Length: 3.5 in
- Max Tool HP: 1
- No Load RPM: 16,000 - 35,000
- Plunge Depth: 1-3/16"
- Subbase Length: 3-1/2"
- Subbase Width: 3-3/4"
- Variable Speed: Yes
- Voltage: 120V
- Weight: 3.3 lb
- Width: 3.75 in
Works With:
- Edge Guide (PR102)
- Roller Guide (PR003)
- Offset Base (PR004)
- Tilt Base (PR005)
- Underscribe Attachment (PR006)
- Side Handle Subbase and Dust Collection Attachment (PR007)
- Plastic Cover for Fixed Base (PR008)
- Subbase for RA-Series Template Guides (PR009)
- Subbase for Threaded Template Guides (PR110)
- Plunge Base (PR011)
Includes:
- (1) PR20EVS Palm Router
- (1) PR001 Fixed Base
- (1) 1/4 in Self-Releasing Collet Chuck
- (1) Shaft Wrench
- (1) Collet Wrench
