Overview:

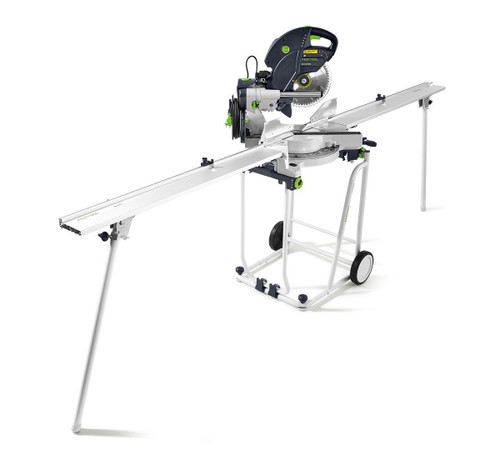

Step into precise cutting with a complete Kapex system built for accuracy, stability, and efficiency. This limited-time bundle combines the KS 120 sliding compound miter saw with the UG stand, extension wings, and a 36mm hose - giving you a fully supported cutting setup from day one. At the center is the Kapex KS 120, engineered for exceptional accuracy and clean, consistent results. From trim work to finish carpentry, it delivers precise angles and smooth cuts you can rely on. The UG stand and extension wings transform the saw into a stable, ergonomic workstation. Material is properly supported for better control and accuracy, while fast setup and fold-down transport keep you moving efficiently from one job to the next. The included 36mm hose supports effective dust extraction at the source, helping reduce airborne dust and maintain clear visibility while cutting. Together, this system helps you cut with confidence, maintain precision, and work more efficiently from setup through final cut.
Specifications:
- Crown moulding diagonal cut 45°/90°: 6-5/8in (168mm)
- Special cutting depth 45°/90° (right): 3/4in x 4-3/4in (20mm x 120mm)
- Special cutting depth 45°/90° (left): 1-1/2in x 4-3/4in (40mm x 120mm)
- Special cutting depth 90°/90°: 2-1/4in x 4-3/4in (60mm x 120mm)
- Crown moulding diagonal cut at 90°/90°: 6-5/8in (168mm)
- Saw blade diameter: 10-1/4in (260mm)
- Drive type: 120 VAC
- Power consumption: 1600W
- Idle engine speed: 1400-3600RPM
- Inclination angle: 47/47°
- Mitre angle: 50/60°
- Dust extraction connection dia.: 1-1/16in/1-7/16in (27/36mm)
- Dimensions (W x D x H): 28in x 19-3/4in x 18-1/2in (713mm x 500mm x 470mm)
- Work height: 35-1/2in (900mm)
- Cable length: 11.482ft (3.50m)
- Weight: 50.93lb (24.30kg)
Includes:
- HW 260X2.5X30 W60 circular saw blade
- Angle transfer device
- Hold Down Clamp
- Hex key 6mm
- Underframe (UG stand)
- KA-UG-KS 120 R/L cross-cut fence
- Suction Hose D36x1.4m-AS/CTR
