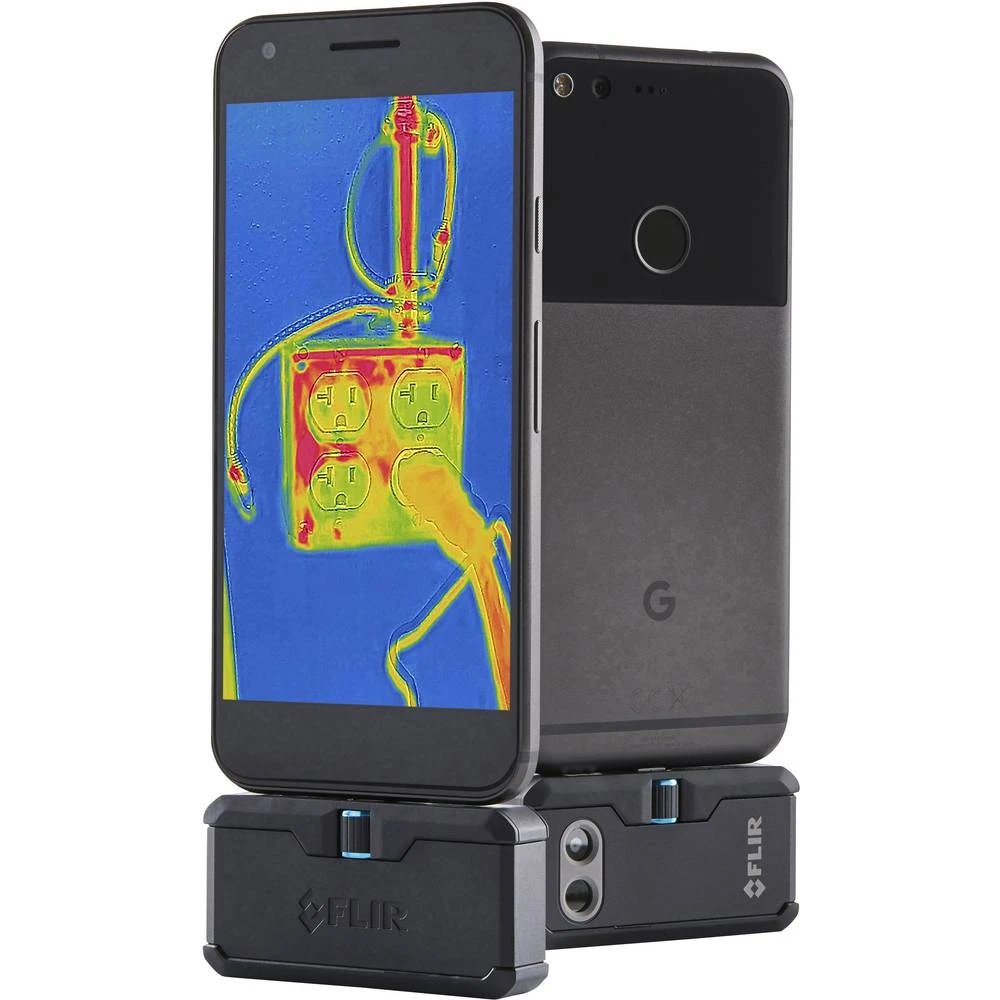

FLIR ONE Pro LT has the power to find hidden problems faster than ever. With the enhanced resolution of FLIR VividIR processing, added perspective of FLIR MSX, and the convenience of the OneFit adjustable connector, FLIR ONE Pro LT works as hard as you do. Whether you're a professional or just focused on DIY projects, the FLIR ONE Pro LT has the powerful features you need at an affordable price.

Image Processing

Unique image processing technology that enhances resolution and accuracy, to help you catch potential problems early and reliably diagnose problems.

Flir One Fit Connector

Adjustable connector extends by up to 4 mm, so you can secure your FLIR ONE Pro LT to your mobile device while its still in the protective case.

Hard-Working App

Work-based features such as multiple spot meters, level/span controls, and reporting through the FLIR Tools Mobile App support more professional problem solving and functionality.

Specifications

• Thermal Resolution 160 × 120
• Battery life Approximately 1 hr.
• Object Temperature Range -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
• Phone Android (USB-C)
• Accuracy ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
• Operating Temperature 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)
• Spot Meter Hottest, Coldest and 3 spot measurement

Imaging and Optical

• Adjustable MSX distance 0.3 m — Infinity
• Focus Fixed 15 cm — Infinity
• Frame Rate 8.7 Hz
• General Description Thermal and Visual Cameras with MSX
• HFOV/VFOV 55° ±1° / 43° ±1°
• Palette Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
• Shutter Automatic/Manual
• Thermal Resolution 160 × 120
• Thermal Sensor Pixel size 12 µm, 8 — 14 µm spectral range
• Video and Still Image Display/Capture Saved as 1440 × 1080
• Visual Resolution 1440 × 1080

Power

• Battery charge time 40 min
• Battery life Approximately 1 hr.

Measurement and Analysis

• Accuracy ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
• Object Temperature Range -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
• Spot Meter Hottest, Coldest and 3 spot measurement

General

• Battery charge monitor 0 — 100%
• Dimensions (H x W x D) 68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in)
• Phone Android (USB-C)
• Weight 36.5 g

Environmental and Certifications

• Certifications MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
• Emissivity Settings Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
• Non-Operating Temperature -20°C — 60°C (-4°F — 140°F)
• Operating Temperature 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)

Communication and Data Storage

• Capture modes Video, Still image
• Charging Female USB-C (5V/1A)
• Connector OneFit connector, adjustable height
• File Formats Radiometric JPG, MPEG-4 (file format MP4)
• Video Male USB-C
