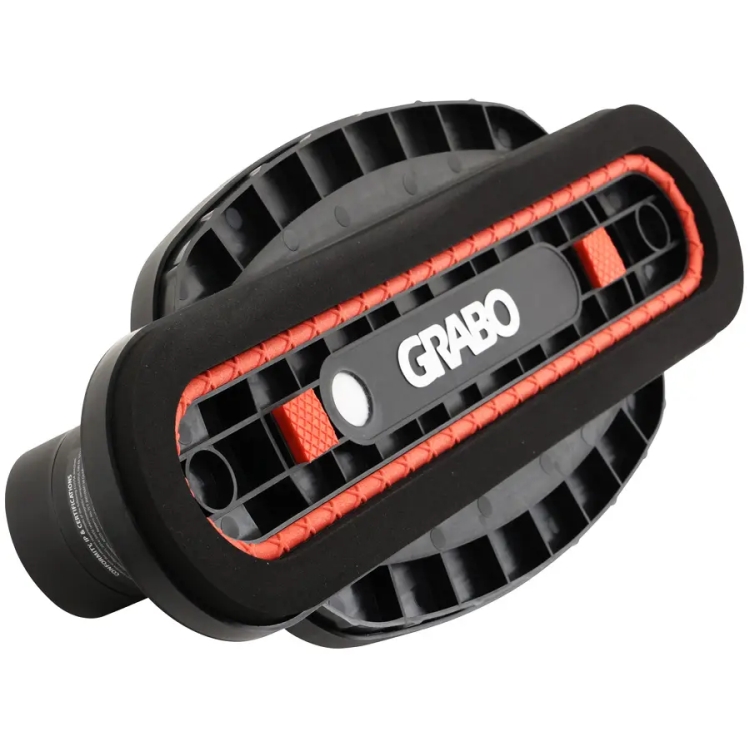

Slender Seal is a new seal system that fits all GRABO models, including Nemo GRABO, GRABO Pro lifter-20, RTC tools GRABO, FXAH-120 Probst GRABO, Topspin Power tools GRABO and other co-branded units.
For lifting surfaces with a longer narrow surface area - such as long Tiles - Pavers- Pipes -Cut to size bench tops
Maximum Capacity lifting is 132 lb (60 kg)
Specifications
| Black foam seal |
|---|
| Material |
SBR rubber foam sponge |
|---|
| Color |
Black |
|---|
| L x W x H |
16.2 x 6.9 x 1.24in (411 x 175 x 31.5 mm) |
|---|
| Dimension of seal |
371 x 65 mm |
|---|
| Density |
10.6 Lb/cft (170 kg/m^3) |
|---|
| Hardness, Shore C |
10_2 |
|---|
| Tearing pressure |
1800 Psi (126 kg/cm^2) |
|---|
| Compression to 25% size at |
8.5 Psi (6000 kg/m^2) |
|---|
| Lifetime (Compressions till performance reduction). |
~900 |
|---|
| Water Absorption, % |
<=5 |
|---|
| Shrinkage at 160F (70C) for 24 hrs., % |
<=20 |
|---|
| Recommended Storage Temperature |
Room temperature |
|---|
| Red seal |
|---|
| Material |
Silicon Foam |
|---|
| Color |
Red |
|---|
| L x W x H |
16.2 x 6.9 x 1.24in (411 x 175 x 31.5 mm) |
|---|
| Density |
40.5 Lb/cft (650 kg/m^3) |
|---|
| Hardness, Shore C |
55_5 |
|---|
| Water Absorption, % |
|
|---|
| Recommended Storage Temperature |
Room temperature |
|---|
| Full seal |
|---|
| Features |
Combined seal on plastic frame Slender profile |
|---|
Lifting Capacity
 | Perpendicular Hold Z | Parallel Hold Y | Parallel Hold X |
|---|
| Maximum value | Safe value（50%) | Maximum value | Safe value（50%) | Maximum value | Safe value（50%) |
|---|
| Glass |
225 Lbs (100kg) |
110 Lbs (50kg) |
110 Lbs (50kg) |
55 Lbs (25kg) |
220 Lbs (100kg) |
110 Lbs (50kg) |
|---|
| Metal |
145 Lbs (66kg) |
72.5 Lbs (33kg) |
110 Lbs (50kg) |
55 Lbs (25kg) |
220 Lbs (100kg) |
110 Lbs (50kg) |
|---|
| Wood |
132 Lbs (60kg) |
66 Lbs (30kg) |
66 Lbs (30kg) |
33 Lbs (15 kg) |
176 Lbs (80kg) |
88 Lbs (40kg) |
|---|
| Rough Concrete |
105 Lbs (48kg) |
52.5 Lbs (24kg) |
110 Lbs (50kg) |
33 Lbs (15 kg) |
220 Lbs (100kg) |
110 Lbs (50kg) |
|---|
