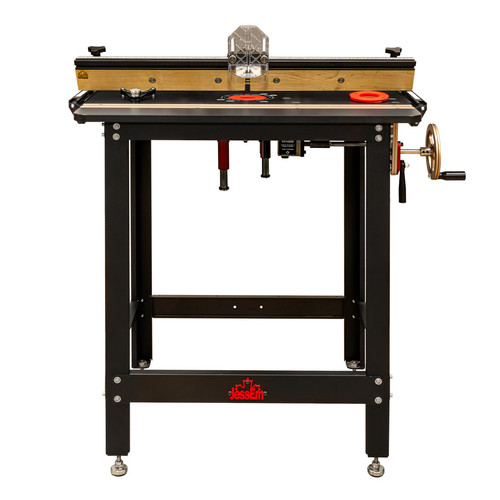

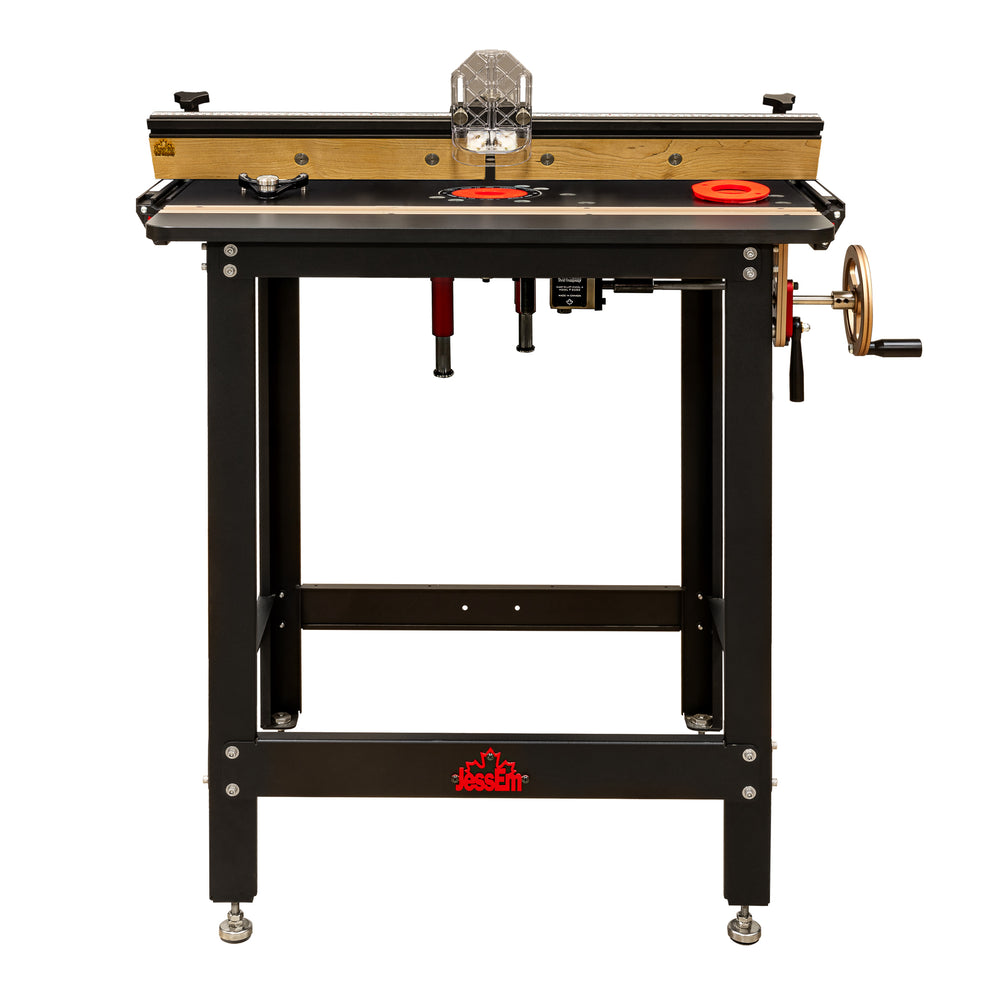

Includes
- JES-04400
- JES-02202
- JES-05150

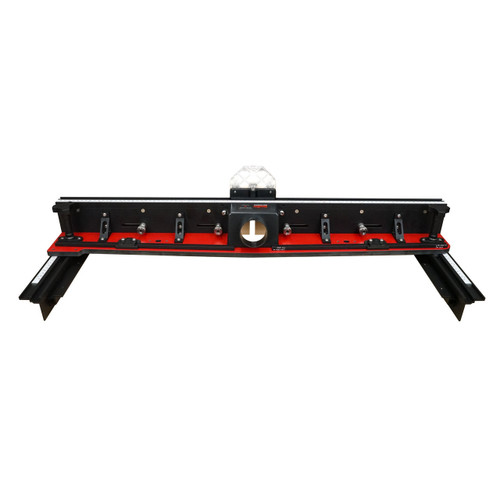

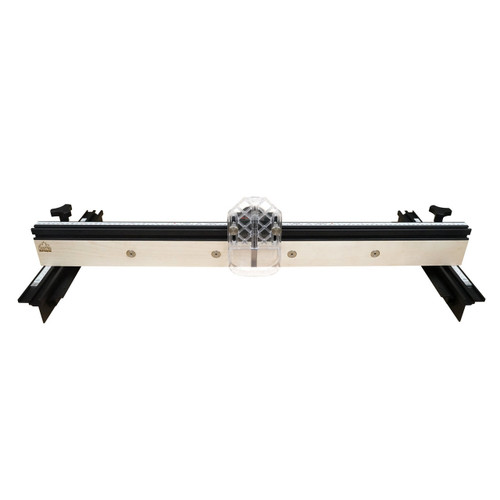

JES-04400 Overview
The Mast-R-Fence III. Manufactured in our Canadian facility, this router table fence not only raises the bar, but also elevates the visual allure of your workshop, delivering both practically and aesthetically from project-to-project.
Features
- Precision Engineering and Materials: The Mast-R-Fence III starts with a solid foundation, featuring a red phenolic base that ensures a perfectly flat surface. Crafted with meticulous attention to detail, the aluminum extrusion is precision machined and adorned with a sleek black anodized finish, guaranteeing durability and heightening the aesthetic of your shop.
- Elevated Fence Knobs: Unlike plastic high boy knobs found on other fences, we've raised the bar by machining ours from 6061-aluminum, ensuring both functionality and visual appeal.
- High-Quality Components: The entire fence is constructed using stainless steel hardware and components, offering a timeless, beautiful look that will withstand the test of time.
- Adjustable Sub-Fences: Setting it apart from the competition, the Mast-R-Fence III features Torrefied Maple sub-fences, expertly cut, machined, and laser engraved in our state-of-the-art woodshop, Achieve precision with ease. The sub-fence faces can be effortlessly adjusted using convenient locking knobs located on the backside of the fence.
- Efficient Dust Collection: Our meticulously designed dust port fitting boasts an inside diameter compatible with a 2-1/4in diameter vacuum hose fitting and an outside diameter compatible with a 2-1/2in vacuum hose fitting.

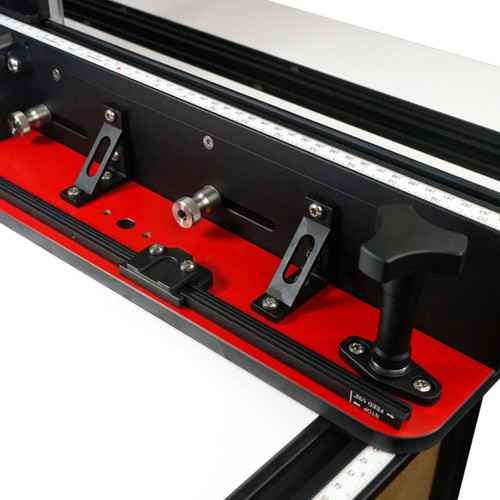

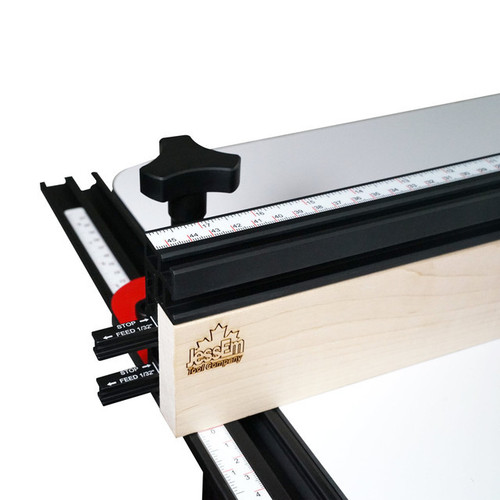

- Unique Fence Face Shimming Bars: Included with the fence, our exclusive fence face shimming bars are laser engraved, with one side designed to offset the fence face by 1/32in and the other by 1/16in. When not in use, they conveniently store on the backside in the shimming bar holder.
- Micro-Adjuster Compatibility Enhance the precision of your Mast-R-Fence III with our Micro Adjuster (04550), specially designed to work seamlessly with this premium router table fence.
The Mast-R-Fence III, an embodiment of woodworking excellence, offers a timeless blend of artistry and functionality that will be cherished by craftsmen for years to come.
Dimensions
- Fence dimensions 36in long X 3-9/16in high X 4-7/8in deep
- Fits tables 32in long
- Fits tables from 3/4in to 1-1/2in thick
- Dust Port dimensions 2-1/4in inside diameter X 2-1/2in outside diameter
- Fence face dimensions 2-1/2in high X 17-3/4in long each
- Fence can be used on all JessEm tops

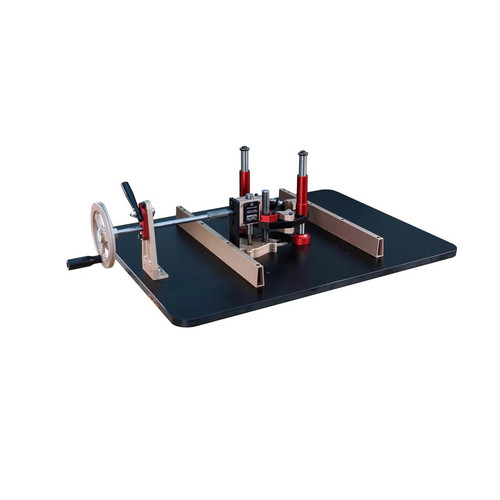

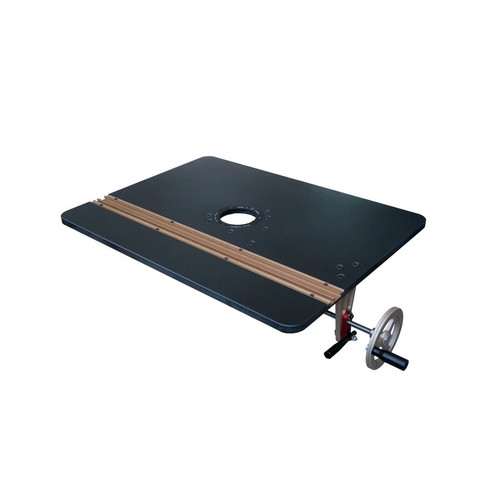

JES-02202 Overview
The Ultimate router Table Top and Lift Combo
Redesigning the Mast-R-Lift Excel has been top priority here at JessEm. The Mast-R-Lift Excel is our top of the line table and if we were going to redesign it there was a lot to live up to. The new Mast-R-Lift Excel II lives up to the name and is a product we are very proud to introduce. We have added many great features to the Excel we knew our customers would want.
The Mast-R-Lift Excel II is JessEm's top of the line Router Table. There are many great features added to this Excel that our customers wanted. They added double sealed bearings to the lift spindle, 6 double sealed bearings to the height adjustment mechanism (actuated through 2 gear boxes) and 3 double sealed bearings to the Cam Lock. This will provide you with a lifetime of use, even with the heaviest routers on the market, your Excel II will be able to raise and lower with ease.
All of JessEm's Lifts have the patented feature of adding tension to the threaded spindle which will remove any backlash while still adding some resistance to the rotation to the thread. This removes any vibration from the thread clearance and also prevents the spindle from moving and changing your setting while routing. This feature is included on their Mast-R-Lift Excel II as well. They wanted to go one step further with the Excel II, so they added a dedicated looking mechanism for heavy duty long term routing operations. Now, not only do you have the patented tensioning feature but they also have added a cam lock that is accessible from the same location as the crank handle. A simple twist ensures your Excel II is locked securely in place, giving you more confidence that the height is set and locked.
The Shafts on the Mast-R-Lift Excel II, like all of JessEm's Router Lifts are pressed into a shaft mount with hydraulic pressure. By pressing the shafts into a larger diameter mount they are able to attach the shafts to the top plate and fasten in place with more than one screw. This spreads the lateral load and provides a very rigid and durable mount that will withstand the toughest routing operations. All the machined components on the Mast-R-Lift Excel II including the phenolic table top are machined on a CNC, all of the aluminum non wear components on the lift are anodized for appearance, corrosion resistance and some wear resistance.
The underside is pre-drilled for their TA fence, Mast-R-Fence II, Mast-R-Fence III, Rout-R-Table Stand and ALTS Stand.
Table top measurements: 24 x 32in - 3/4in thick.
JES-05150 Overview
Experience the pinnacle of durability and craftsmanship with our all-new Heavy Duty Router Table Stand, proudly made in Canada. Precision-engineered in-house, this stand is constructed from robust 14-gauge steel and boasts a sleek black satin textured finish. With a design tailored for a perfect 90-degree square cabinet, this stand stands strong without obstructions. Reinforcing its quality, the braces are cut from the same 14-gauge steel and meticulously hemmed for exceptional strength and finish. The iconic JessEm logo, cut from 14-gauge steel, features a striking red satin finish and graces the front lower brace.
Features:
- Canadian-Made Excellence: Crafted with precision in Canada
- for exceptional quality.
- Robust Construction: Manufactured using durable 14-gauge steel for long-lasting performance.
- Sleek Finish: Powder coated with a black satin textured finish for a refined look.
- Tailored Design: Specifically designed for a perfect fit within 90-degree square cabinets.
- Reinforced Braces: Hemmed braces for superior strength and impeccable finish.
- Iconic Branding: The JessEm logo, cut from 14-gauge steel, adds a touch of elegance. Easy Assembly: Includes pre-installed Pem Nuts for hassle- free setup.Versatile Compatibility: Fits all JessEm tops and the Mast-R- Lift Excel Il table.
- Includes Non-Slip Leg Levelers: Ensures stability and adaptability to various surfaces.
Dimensions:
- Height: 35"
- Width: 26"
- Depth: 22"
Achieve precision and stability with the JessEm Heavy Duty Router Table Stand. Experience the difference in craftsmanship and enhance your woodworking projects. Order now and transform your workspace.
