Features:
- Powerful 1.75 HP motor
- All ball bearing die cast construction
- Conveyor belt tracking is easy to adjust
- Easy clamping sanding belt loading system
- 4" dust chute and rear hook to support dust collection hose

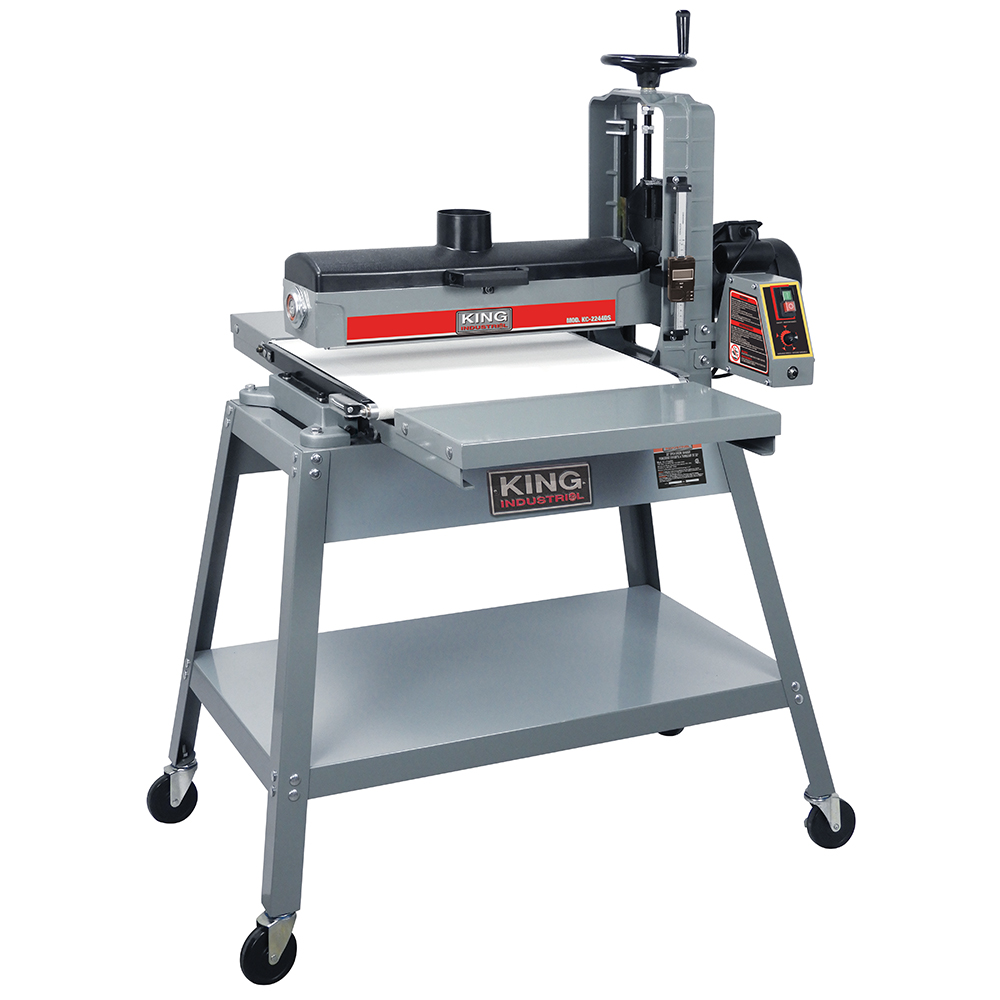

- Comes with metal stand with 4 caster wheels for mobility
Specifications:
- Drum motor: 1.75 HP, 15 Amp.
- belt feed motor: 1/8 HP
- maximum width of sanding: 2 x 22"
- maximum sanding capacity per pass: 1/64"
- maximum thickness of board: 5"
- maximum thickness of board: 1/8"
- minimum board length: 2-1/4"

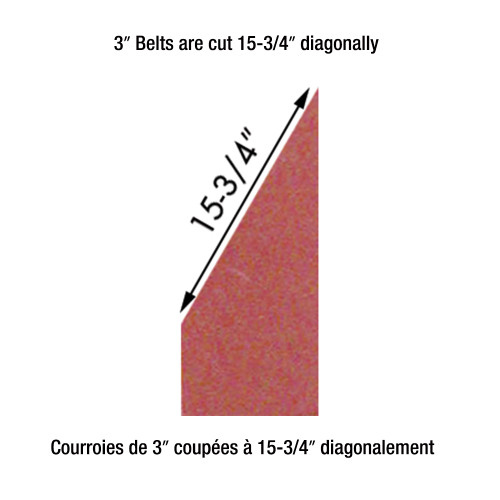

- belt: 3" x 127-3/4"
- feeding speed: 0-31 SIPM
- number of sanding drums: 1
- drum speed: 1,720 RPM
- voltage: 110V, 60 Hz, 1 phase
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 48" x 43-3/8" x 61-1/2" / 257 lbs
- PACKAGE DIMENSIONS (LXWXH) / WEIGHT: 45-5/8" x 25-5/8" x 26" / 273 lbs
IMPORTANT! With its open ended design this machine can sand a 44” wide piece in 2 passes
