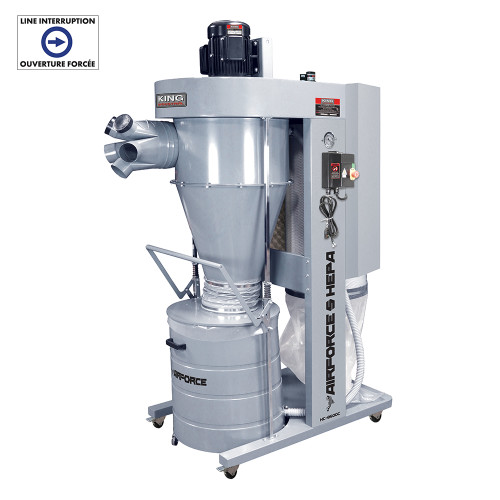

5 HP CYCLONE DUST COLLECTOR
Features:
- Powerful 5 HP, 240V TEFC motor
- Superior dust collection and air filtration
- Cyclonic action separates heavy debris from the fine particles and directs them into the steel drum
- Fine dust particles are collected in the HEPA canister filter with heavy-duty clear plastic bag
- 54 Gallon steel drum with quick release handle and castor wheels for easy disposal
- Canister filter isolation panels with foam insulation lowers noise levels
- Auto clean system automatically cleans the inside of the canister filter
- Differential pressure gauge indicates the air flow efficiency of the system
- Radio frequency remote control
- Complete with 4 locking caster wheels for mobility
Specifications:
- MODEL: KC-8500C
- AIR SUCTION CAPACITY (real / nominal): 2701 / 4400 CFM
- NOISE LEVEL READING AT: 36"76 dB
- STATIC PRESSURE (inch of water): 14.5
- STEEL DRUM CAPACITY: 54 Gallon
- DUST PORT OPENING: 5 x 4" / 1 x 10"
- MOTOR: 5 HP, 25 Amp.
- VOLTAGE: 240V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH): 35" x 65-1/2" x 91-5/8"
- WEIGHT: 592 lbs
- UPC: 772995016587
