Overview:

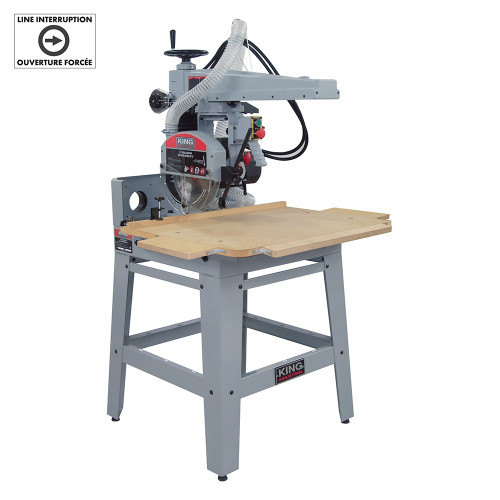

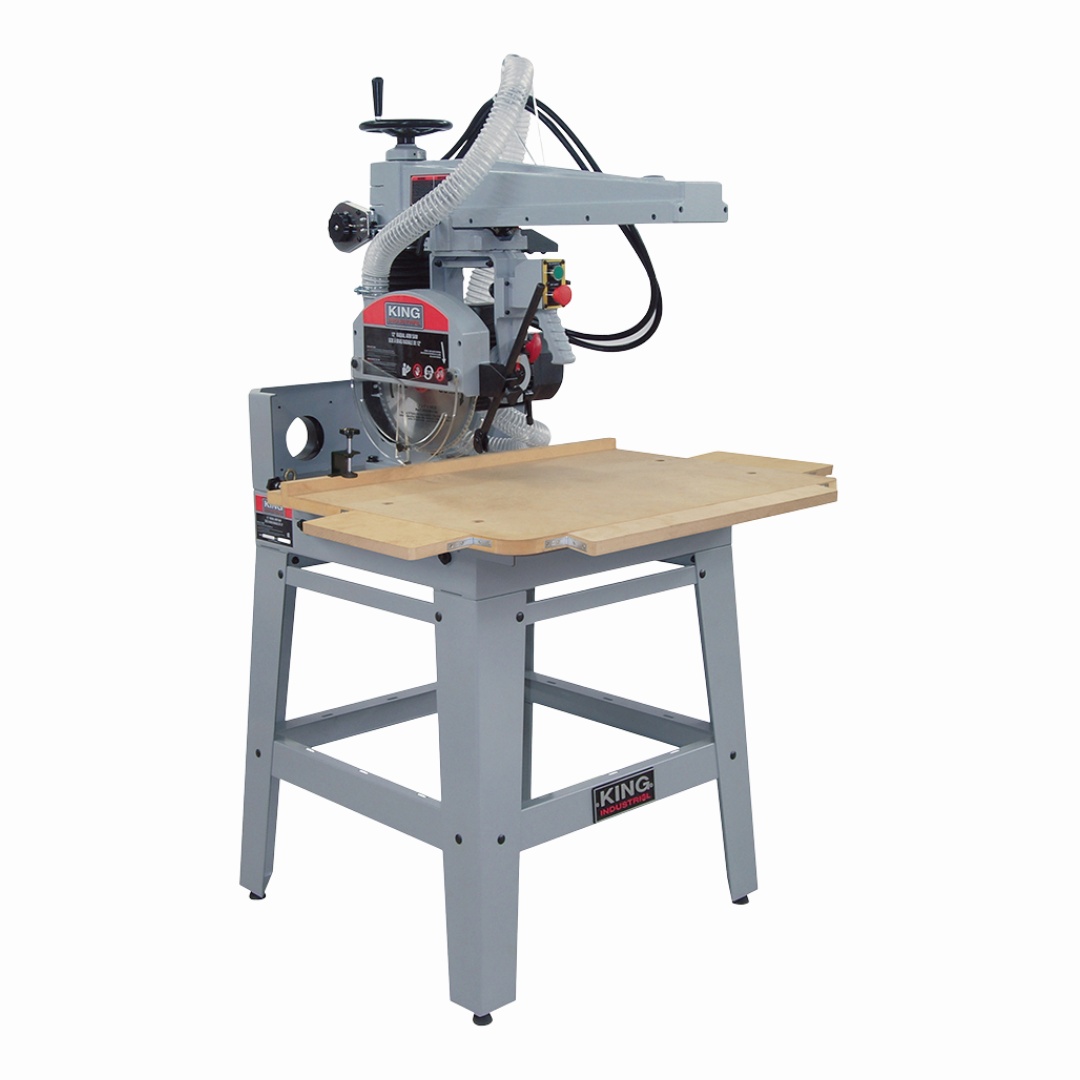

Industrial rated radial arm saw has the versatility to crosscut, bevel cut, miter cut and swivel to a rip position to cut down panels precisely and accurately.
Features:
- Powerful 2 HP, 220V single phase motor
- Industrial rated radial arm saw has the versatility to crosscut, bevel cut, miter cut and swivel to a rip position to cut down panels precisely and accurately

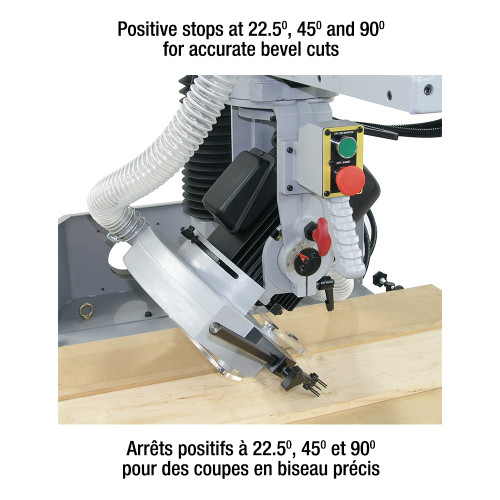

- Precision indexing with positive stops at 22.5°, 45° and 90° for accurate bevel cuts
- Automatic built-in mechanical blade brake system
- Oversized MDF table top
- Magnetic safety switch with keyed lock preventing unauthorized use of the radial arm saw
- Two 4in dust chutes for dust collector hook-up
- Includes 12in negative rake blade, adjustment wrenches and hex keys

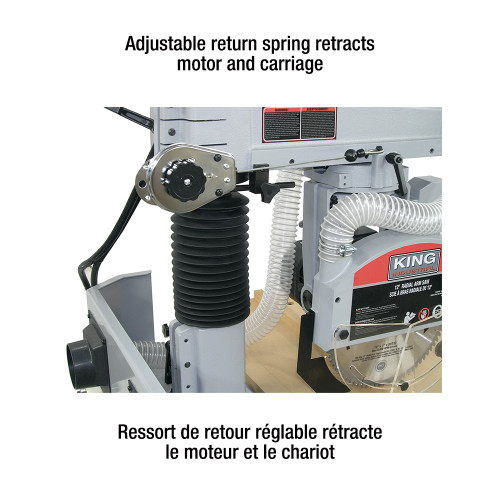

- Adjustable return spring retracts motor and carriage
Specifications:
- Blade Diameter: 12in
- Blade Arbor (with 1in Bushing): 5/8in
- Maximum Depth of Cut (10in/12in): 2in / 3in
- Maximum Depth of Cut at 45° (10in/12in): 2in / 3in
- Maximum Crosscut Capacity: 16in
- Maximum Rip Capacity: 26-3/8in
- Dado Capacity: 13/16in
- MDF Table Size: 35-3/8in x 27-1/2in
- Height of Table from Floor: 36-3/4in
- Motor: 2 HP, 8.5 Amp.
- Voltage: 220V, 1 phase, 60 Hz
- Assembled Dimensions (L x W x H): 35-3/8in x 43in x 71in
- Assembled Weight: 395lb
- Package Dimensions (L x W x H): 30in x 37-3/4in x 34in
- Package Weight: 485lb
