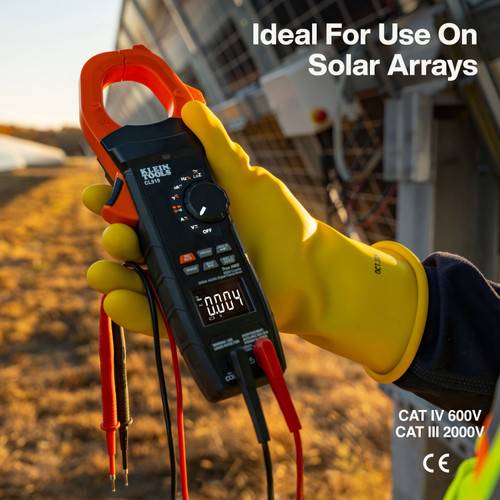

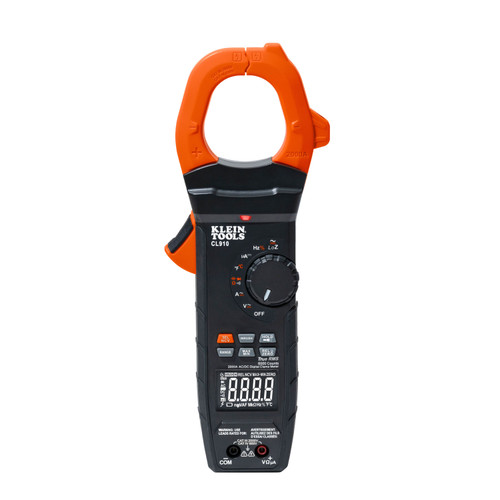

Klein Tools High Voltage Digital Clamp Meter is a professional-grade clamp meter engineered for extreme high-voltage applications up to 2000V and 2000A. It features TRMS auto-ranging accuracy, integrated worklight, and superior backlit display and is perfect for solar panel installations, wind turbines, and power distribution networks. Hands-free operation with test lead holder and magnetic hanger compatibility for safe, efficient renewable energy work.
Features:
- 2000V AC/DC voltage measurement capability specifically designed for high-voltage applications including power distribution networks and renewable energy systems
- 2000A AC/DC current range with inrush current measurement through connected clamp for comprehensive high-power electrical testing
- Advanced True Root Mean Squared (TRMS) auto-ranging technology provides professional-grade accuracy on complex waveforms and non-linear loads in demanding environments
- Backlit dial and reverse-contrast LCD with integrated work light provides superior visibility and illuminates work area in all conditions
- Designed to withstand tough jobsite conditions, this meter is rated IP40, CAT III 2000V, CAT IV 600V, and will withstand up to a 2-Meter drop
- Hands-free operation features include test lead holder mounted on clamp plus compatibility with optional magnetic hangers (Cat. No. 69445 or Cat. No. 69417) for safe high-voltage work
Specifications:
- Type: CAT IV Clamp Meter
- Application: Variety of Electrical Diagnostic and Troubleshooting Applications
- Special Features: Transflective Reverse-Contract Display; Lighted Dial; Built-in Worklight; Built-in Lead Holder
- Material: ABS
- Batteries: 2 x AA
- Battery Life: 40hr
- Auto-Power Off: Yes
- Jaw Size (Inch): 2
- Jaw Size (cm): 5.1
- Drop Protection: 6.6ft (2m)
- Display: Backlit Reverse-Contrast with 6000 Count LCD
- Functions: AC/DC Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability
- Auto Ranging: Yes
- TRMS: Yes
- Voltage: 2000V AC; 2000V DC
- Frequency: 10Hz-60kHz
- Current: 2000A, AC/DC
- Capacitance: 6000uF
- Ohms (Resistance): 60MOhm
- AC Voltage: 2000V
- DC Voltage: 2000V
- DC Polarity Indicator: Yes
- DC Micro-Amp: 200uA
- Temperature Range: -14 to 1000F (-26 to 538C)
- Ingress Protection: IP40
- Accuracy: See Instructions
- Standard: CAT IV 600V, CAT III 2000V, Class 2, Double Insulation, CE, UKCA
- Overall Length (Inch): 4.32
- Overall Length (cm): 11
- Overall Height (Inch): 11.37
- Overall Height (cm): 28.9
- Overall Width (Inch): 1.98
- Overall Width (cm): 5
- Weight (oz): 20.7
- Weight (g): 587
- UPC: 092644694677

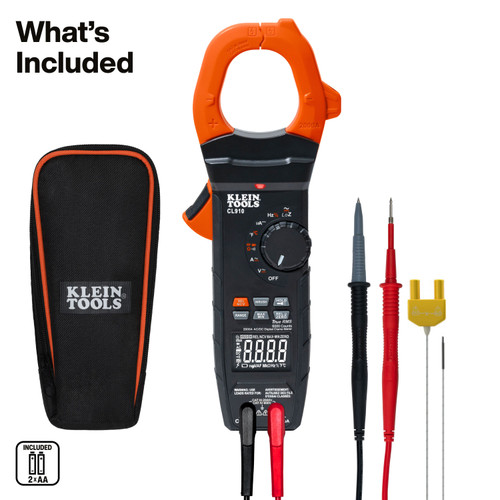

Includes:
- (1) Clamp Meter
- (1) Right-Angle Input Test Leads
- (1) Thermocouple
- (1) Carrying Case
- (1) Instruction Manual
- (2) AA Batteries
