Overview:

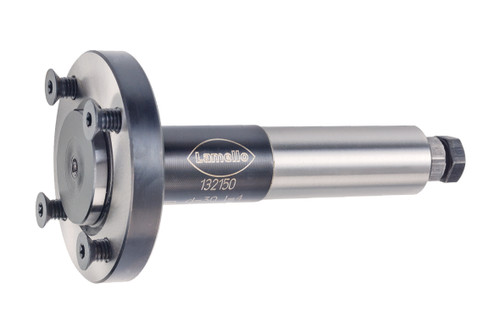

The Lamello 132152 P-System CNC Cutter Arbor is a precision tool holder designed to mount Lamello's P-System diamond and carbide groove cutters on a CNC machine or angle aggregate when direct fitment isn't possible. Engineered for production cabinet shops and custom millwork operations using Lamello's revolutionary P-System joinery, this arbor lets you cut form-locking P-System grooves automatically as part of your CNC routing program — dramatically reducing manual labour while maintaining Lamello's signature precision.
Features:
- Holds Lamello P-System groove cutters (LAM-132142 and LAM-132143) when direct CNC aggregate fitment isn't available
- 16mm shaft diameter for compatibility with common angle aggregates and CNC tool holders
- 50mm shaft length, 85mm overall length
- Compatible with all P-System diamond disc groove cutters (Ø 30mm, NL 4 x M4 x Ø 48mm)
- Precision-machined for repeatable cutting accuracy
- Enables CNC-driven P-System groove cutting for bulk production of P-System connectors (Clamex P-14, Tenso P-14, Divario P-18)
Specifications:
- Shaft Diameter: 16mm
- Shaft Length: 50mm
- Overall Length: 85mm
- Bore Compatibility: Ø 30mm cutters with 4 x M4 mounting at Ø 48mm
- Compatible Cutters: LAM-132142 (Z3), LAM-132145 (Z6), and other 30mm-bore P-System cutters
- Application: CNC machine angle aggregates, edge processing aggregates
Warnings:
- Ensure CNC aggregate has enough clearance to perform the complete depth of cut when using this arbor with a groove cutter
- If the aggregate doesn't allow full depth of cut, consider using a Lamello P-System CNC shaft tool cutter instead
