Overview:
The Lamello Zeta P2 Positioning Pins CNC (Ø5mm) are used to precisely position the Zeta P2 biscuit joiner when working in combination with a CNC machining centre. Pre-drilled Ø5mm positioning holes are created in the workpiece on the CNC machine, then the positioning pins are inserted into the Zeta P2 to locate the machine exactly at the correct position for P-System groove milling. This workflow eliminates manual measurement, ensures repeatable accuracy across production runs, and allows the positioning pins to prevent workpiece twisting without the need for additional dowels. Sold as one pair (2 pieces).
Features:
- Enables precise CNC-aided positioning of the Zeta P2 biscuit joiner for P-System groove cutting
- Inserted into the Zeta P2 to align the machine to pre-drilled Ø5mm positioning holes made on the CNC machining centre
- Prevents workpiece twisting without the need for additional dowels
- Compatible with both the corded Zeta P2 and the Zeta P2 Cordless
- Sold as 1 pair (2 pieces per pack)
Specifications:
- Art. No.: 251048
- Pin Diameter: Ø5mm
- Quantity: 2 pieces (1 pair)
- Compatible Machine: Lamello Zeta P2 (corded and cordless)
- Application: CNC positioning for P-System groove cutting
Includes:

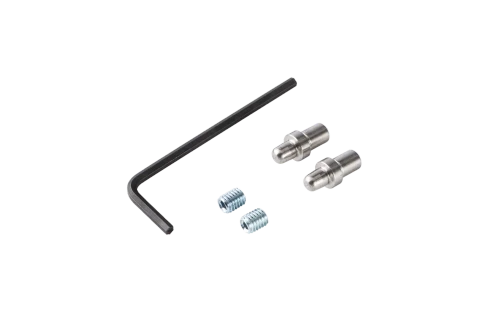

- (2) Zeta P2 Positioning Pins CNC, Ø5mm
