Overview:

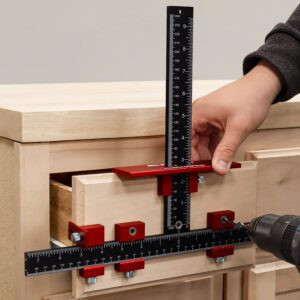

Tackle cabinet installation projects like a pro with the Milescraft CabinetPRO hardware installation jig. Designed for kitchen renovators, finish carpenters, and serious DIYers, the CabinetPRO eliminates the guesswork of laying out cabinet pulls, knobs, and handles. The all-metal construction keeps the jig rigid through repeated installs, while precision laser-etched scales in both inches and metric ensure accurate spacing every time. Reversible design transfers from door to door — and drawer to drawer — without resetting.
Features:
- 100% machined aluminum construction — no flex, no slop
- Reversible design drills both left and right door handles with a quick flip — no new settings needed
- Quick-set hardened steel drill guides adjust to required spacing for any handle, knob, or pull
- Dual edge stops perfectly position the jig on doors and drawers
- High-visibility laser-etched scales in both imperial (inches) and metric (mm)
- Included extension ruler expands range from 1-1/4in up to 32in for wide drawers, tall doors, and long hardware
- 32mm spacing between drill guides allows drilling up to three cabinet shelf-pin holes per pass
- Hardware spacers automatically set the guides to the correct width for handles
- Centering notches allow alignment to center marks; drill guides can adjust from zero

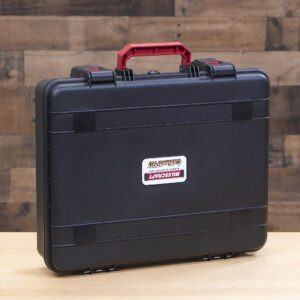

- Heavy-duty foam-lined polypropylene case stores the jig with current setup intact for instant pickup
Specifications:
- Material: Machined Aluminum
- Design: Reversible for left & right doors
- Total Range: 1-1/4in to 32in (32mm to 815mm)
- Main Ruler Range: 15in (380mm)
- Extension Ruler Range: 18in (460mm)
- Drill Guide Material: Hardened steel
- Drill Guide Spacing: 32mm (for shelf-pin compatibility)
- Transport Case: EPE foam-lined, impact-resistant polypropylene
Includes:
- (1) CabinetPRO main jig body
- (1) Extension ruler (18in)
- (1) 5mm brad point drill bit
- (1) 2mm hex key
- (1) 2.5mm hex key
- (3) Hardware spacers
- (1) Foam-lined transport case
