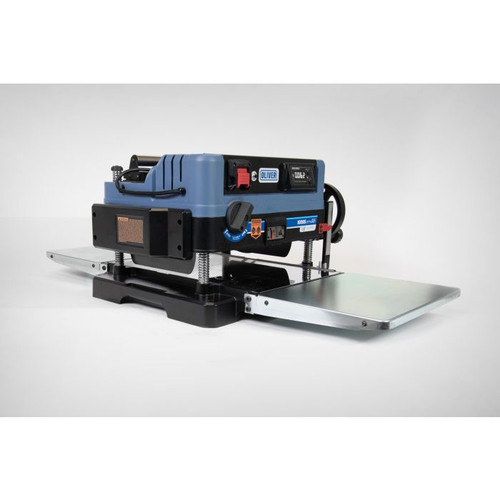

The Industries only 220V 15" Benchtop Helical Cutterhead Planer
Oliver Machinery's 10055 15” Benchtop Planer combines everything we know about building planers, from current and previous generations, and adds to our already industry leading benchtop line-up. We anticipate the new 10055 will be a category leader with the Oliver HCX Helical Cutterhead, increased cutting capacity, and powerful 2.5HP 1Ph 230V motor.
Features
- Powerful 2.5HP 1Ph 12Amp 230V motor
Plenty of power for smooth cuts and no blowing 110V breakers - 2-Speed gearbox provides 12 or 22 FPM feed rates
- 4-post design ensures cutter head alignment to table
- Oliver HCX Helical Cutterhead (not segmented or spiral)
Read more about our HCX Helical Cutterheads here - Oliver DRO for precise material removal
- Large 15” x 23” table size (15"x48" with included extension tables)
- 4-depth stops allow easy set-up from 1/4” to 1”
- Elevation crank with lock includes an easy-to-read scale
Lock in your thickness without worry of the carriage moving - 4” Dust port to evacuate shavings
Reversible for left or right exit - Safety switch features overload protection and lock-out
- CSA listed
Specifications
| Attribute | Value |
|---|---|
| Model Number | 10055 |
| CutterHead | Oliver HCX Helical |
| Phase (Ph) | 1Ph |
| Stock Number | 10055.201 |
| Maximum Stock Width | 15" |
| Maximum Depth of Cut | Material under 6.5" width: 1/8"Material over 6.5" width: 3/64" |
| Maximum Stock Thickness | 6" |
| Minimum Stock Thickness | 1/8" |
| Minimum Stock Length | 8" |
| Dust Port Diameter | 4" (reversible for left or right exit) |
| Minimum CFM Required | 600 CFM |
| Feed Speeds | 12 FPM or 22 FPM |
| Table Size | 15" × 23" |
| Table Size w/ Extension Wings | 15" × 48" |
| Cutterhead Speed | 5,600 rpm |
| Number of Knives (Helical) | 40 |
| Footprint | 28" × 23" |
| Footprint – with Table | 28" × 48" |
| Motor | 2.5 HP – 230V, 1Ph, 12A (NEMA 6-15 plug, 7 ft cord) |
| Overall Dimensions | 28" W × 23" D × 16" H (extensions folded)29" W × 27" D × 20" H (shipping crate) |
| Net Weight | 158.7 lb |
| Gross Weight | 172 lb |
