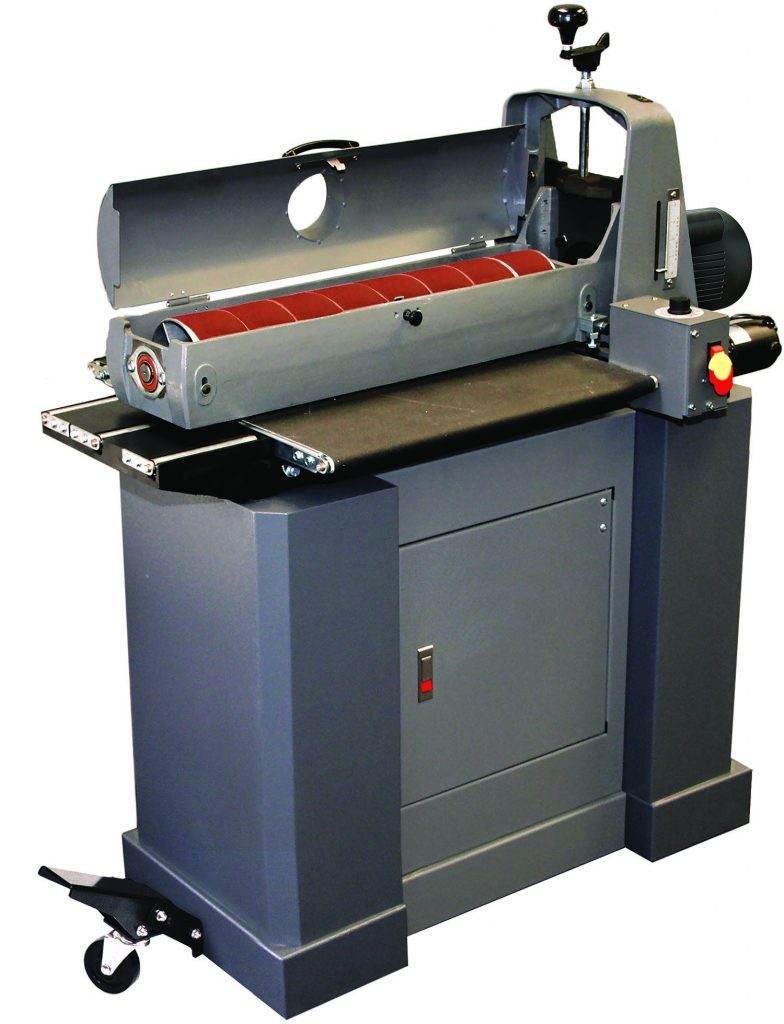

SuperMax SMX-72550 25/50 Drum Sander With Stand

$3,299.99
Brand:
SKU:
SMX-72550
Availability: In Stock Online Availability: Out of Stock Availability: Special Order - Email info@atlas-machinery.com for pricing
SMX-60-50,SMX-71938-DRO,SMX-71938-7F-CL,SMX-60-0322

The SuperMax 25-50 Drum Sander is the largest open-ended drum sander on the market. Sand 25in in a single pass, and up to 50in in a double pass. Expand the scope of projects you’re able to complete, while increasing speed and consistency in which you’re able to do them!

The 25-50 Drum Sander comes standard on the Closed Mobile Base Stand. The drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are available for purchase.

Specifications

  • Sanding Capacity: Maximum Width (in): 50 (two passes)
  • Minimum Length (in): 2-1/4
  • Maximum Thickness (in): 4
  • Minimum Thickness (in): 1/32
  • Dimensions (in): 27D x 46W x 53H (on stand)
  • Drum: 5 x 25 extruded aluminum
  • Drum Speed: 1740 RPM
  • Dust Hood: 1- 4in vacuum port, min. 600 CFM recommended
  • Conveyor Motor: 43 in.-lb. torque, direct drive D.C. motor, ranged variable 0-10 FPM
  • Drive Motor (TEFC): 1-3/4 HP
  • Power Requirements 110 V 20 amp
  • Shipping Weight (lbs): 369 (3 boxes incl. stand)

Features



  • 25in sanding in a single pass, 50in in a double pass!
  • More room for easy access to abrasives- no special tool needed
  • Closed stand has built-in wheels and storage
  • New mobile base helps stand and machine to move with ease
  • Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
  • Indexed alignment setting Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 25in, the index lever will properly adjust the conveyor for flawless wide sanding.
  • Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments.
  • Drum will never go out of alignment The drum carriage is bolted to the base, preventing any movement or alignment issues.
  • IntelliSand Technology: Automatically adjusts conveyor speed based on load
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no flex in conveyor, guaranteeing flatness to less than .010in across the width of the sander
  • Prevents gouging, damaging or burning stock
  • Provides consistent finish even with varying grain pattern and density
  • Greatly increases abrasive planing and dimensioning speed
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
  • Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools.
  • Self-cooling drum prevents overheating and extends abrasive life
  • Tension rollers are adjustable in height and hold down pressure, eliminating snipe
  • Excellent dust extraction as dust cover is formed to shape of drum
  • Heavy-duty cast iron construction for strength, rigidity and reduced vibration
  • Mobile Base allows for stand and machine to be to moved easily
  • Metal, not plastic, is formed to maximize air flow and dust extraction
