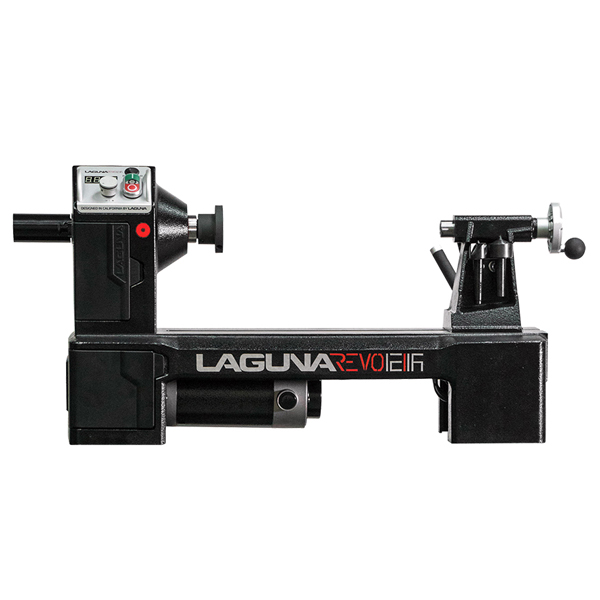

The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package.

Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo with 45° chamfered edge.

Specifications

• Motor: 1 HP DC Permanent Magnet Motor
• Controller: Pulse Width Modulation (PWM)
• Electrical Requirements: 110V-1PH-60HZ
• Recommended Breaker Size: 110V – 15 AMP
• Speed Range High 650 – 3500 RPM
• Speed Range Mid 325 – 1750 RPM
• Speed Range Low 50 – 525 RPM
• Distance Between Centers 15.5in
• Swing Over Bed 12-1/2in
• Swing Over Banjo 9-1/2in
• Max. Outboard Swing 16in
• Spindle Bore 3/8in
• Spindle Taper MT2
• Spindle Thread 1inx 8 TPI (both ends)
• Front Bearing 6006LLU
• Rear Bearing 6005LLU
• Indexing 24 positions w/ Lock
• Drive belt Poly-V Belt 6 Grooves
• Tail stock quill travel 2-1/2in
• Tail stock taper MT2
• Bed Length 29.4in
• Tool Rest Length 6in
• Tool Rest Post Dia. 1in
• Faceplate Dia. 3in
• Certification CSA C/US 256540
• Floor to bed height 6.7in no pads
• Floor to Spindle Center 13in no pads
• Overall Size L29.4in W8.9in H17.4in
• Shipping Dimensions L35.8in W14.in H20.5in
• Net Weight 118 LBS
• Shipping Weight 125 LBS
