Model provides an excellent combination of high torque and maneuverability and can replace air impact wrenches for tightening large diameter bolts
3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
Trigger switch with full speed mode (Variable speed / Full speed) reduces fatigue in continuous operation.
40Vmax XGT Delivers 2,320 ft.lbs (3,150 Nm) Of Torque
Features:

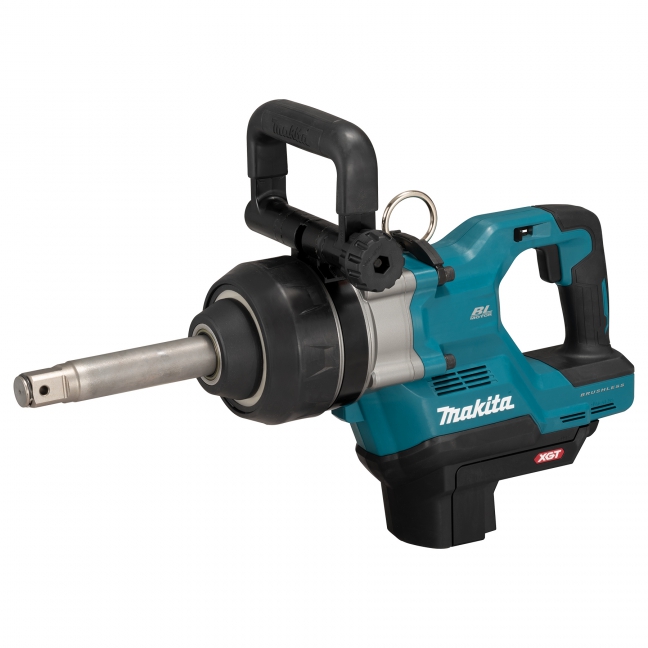

- 40V MAX XGT brushless 1" (25.4 mm) 3,150 Nm (2,320 ft.lbs.) impact wrench with forward/reverse rotation auto stop mode
- 1" (25.4mm) square drive D-handle impact wrench provides an excellent combination of high torque and maneuverability and can replace air impact wrenches for tightening large diameter bolts
- This model is equipped with a long anvil
- Designed with a larger hammer in the radial direction to efficiently increase the moment of inertia of the hammer, providing an excellent combination of high torque and maneuverability while suppressing increase in hammer size
- By designing the motor to be positioned vertically, Makita has achieved a reduction in the overall length of the tool and a suppression of the reaction force on the hand at startup
- Trigger switch with full speed mode (Variable speed / Full speed) which means full speed is reached with less trigger pull, reducing fatigue in continuous operation
- Variable speed mode or Full speed mode can be selected depending on applications.
- Ring illumination LED - The use of a ring illumination LED reduces the shadow of the socket on a workpiece, providing a better view of the workpiece
- Ring LED has preglow/afterglow functions and light mode
- Toolless installation of Side handle
- Side handle can be installed 360° without a tool and the angle of the holding section can be adjusted back and forth, making it suitable for a variety of operations.
- Auto-stop system available in both forward/reverse rotation modes
- 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
- Rubber joint design - The housing section for battery installation, which is independent of the main body of the tool, has a rubberized anti-vibration structure that suppresses chattering of the terminals and wear of the battery rails.
- Tool hanger (Ring) allows to hang the tool on pipes, hooks, etc.
- Two-finger trigger shaped for easy pulling even with a gloved hand
- Equipped with a purpose built genuine Makita brushless motor
- Variable speed control by trigger
- eXtreme Protection Technology (XPT) offers maximum protection against dust, dirt and debris for optimal performance in extreme conditions
- Electronic 4 stage impact power selection for added versatility
Specifications:
| Battery Capacities | 40V Max Li-Ion |
| Square Drive | 1" (25.4 mm) |
| No Load Speed: | 0 - 1,200 / 0 - 850 / 0 - 700 / 0 - 600 RPM |
| Impacts Per Minute: | 0 - 1,750 / 0 - 1,500/ 0 - 1,300 / 0 - 1,200 IPM |
| Maximum Fastening Torque | 2,300 ft. lbs (3,150 Nm) |
| Nut-busting Torque (reverse) | 2,950 ft. lbs (4,000 Nm) |
| Vibration Level | 33.4 m/s² |
| Noise Level | 103 dB(A) |
| Dimensions (L x W x H) | 22-1/2" x 5-5/16" x 12-1/2" (570 mm x 135 mm x 316 mm) |
| Net Weight | 24.1 lbs (10.9kg) |
Includes:
- D-Style Side Handle (122G63-9)
*Tool Only. Batteries and Charger Sold Separately.
