Overview:
Small laser. Great performance. Precise alignment and marking.

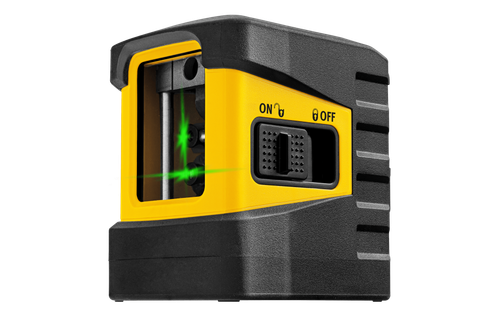

The STABILA LAX 60 G features exceptional line quality thanks to GREENBEAM technology. The bright, razor-sharp laser lines enable precise work even in daylight, with a range of up to 100 ft (30 m). The compact laser is ready for immediate use and its long battery life ensures maximum efficiency for marking and alignment work. In manual mode, lines can be positioned flexibly at any angle and in pulse mode, you can extend the working range with an optional receiver. STABILA – Reliable, high-quality and made for professionals.
Features:
- Ultra compact, battery-operated cross line laser for efficient work on the horizontal and vertical levels
- Precise work with a high levelling accuracy of ±1/8in @ 30 ft (0.3 mm/m)
- STABILA GREENBEAM technology: direct work on extremely bright and sharp green lines up to a distance of 100 ft (30 m)
- In conjunction with optional receivers, pulse-modulated lines extend the working range to up to 260 ft (80 m)
- Powerful laser diodes: long operating time of up to 15 hours
- Manual mode: laser positioning at any inclination with locked pendulum
- Fast self-levelling – immediate use thanks to pendulum technology
- Easy to operate via two buttons
- Shock-absorbent STABILA soft grip casing protects the laser against damage from falling
- Flexible positioning: 1/4in thread for attaching to tripods and rare-earth magnet system for securing to metallic objects
- Set includes 9-1/2 ft. Telescoping Support Pole and Mounting Bracket for versatile positioning on the jobsite
- IP 54 protection rating
Applications:
- Tiling work: marking out tile layout, aligning and laying floor and wall tiles
- Electrical installation: marking switches and sockets, aligning cable ducts, aligning and mounting lights
- Plumbing, heating, and air conditioning: aligning pipe hangers, laying cables and heating pipes, mounting radiators and sanitary facilities
- Joinery: aligning and assembling kitchen cabinets, aligning countertops
- Painting: masking and covering work, adhering borders, wallpapering
- Drywall construction: suspending ceilings in conjunction with a wall bracket
Specifications:
- Model: LAX 60 G
- Laser Colour: Green (GREENBEAM technology)
- Laser Class: 2
- Output: <7 mW
- Laser Wavelength: 510-530 nm
- Self-Levelling Range: ±4°
- Levelling Accuracy: ±1/8in @ 30 ft (0.3 mm/m)
- Measuring Range (visible): 100 ft (30 m)
- Measuring Range (pulse mode with optional receiver): 260 ft (80 m)
- Operating Life: Approx. 15 hours
- Power Supply: 3x AA 1.5V (included)
- Protection Rating: IP 54
- Tripod Connection: 1/4in thread
- Mount Options: Rare-earth magnets and 1/4in thread

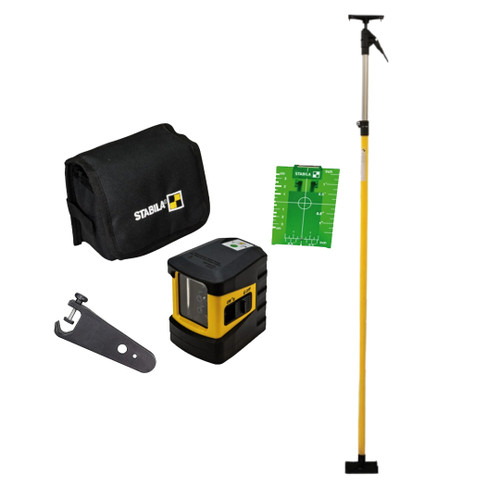

Includes:
- (1) LAX 60 G Cross Line Laser
- (1) 9-1/2 ft. Telescoping Support Pole
- (1) Mounting Bracket
- (1) Target Plate
- (1) Belt Pouch
- (3) AA 1.5V Batteries
