Stabila LAX 500G 12V 7-Piece Cross-Line Laser Kit (03520)
The Stabila LAX 500G is a high-performance cross-line laser with plumb dots, designed for professional accuracy and efficiency on the jobsite. Featuring GREENBEAM technology, it delivers sharp, highly visible lines up to 130 ft (40 m), making alignment and leveling tasks faster and more precise.
With a durable protective housing and flexible positioning options, this laser system is built for demanding environments. Paired with the REC 230 RG receiver, it extends usability over long distances, even in bright conditions where laser lines are not visible.
Features:
- Self-leveling cross-line laser with plumb dots for horizontal and vertical applications
- GREENBEAM technology for bright, razor-sharp lines up to 130 ft (40 m)
- High-performance diodes provide extended vertical line coverage
- Manual mode allows positioning at any angle with pendulum lock
- Pulse-modulated lines compatible with line receivers
- Long runtime up to 20 hours with 12V Li-Power battery
- Fast recharge time of approximately 45 minutes
- Shock-absorbing protective housing with soft grip and protective sliders
- Removable base for working over tracks and base plates
- Multiple mounting options including 1/4 in thread, magnets, and wall bracket

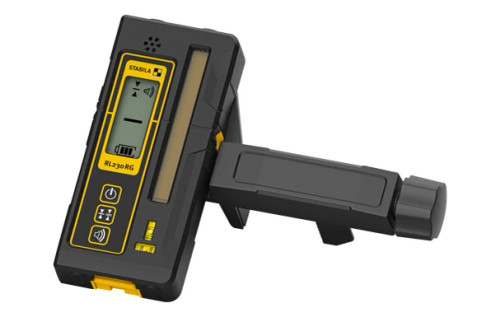

Receiver Features:
- Detects pulse-modulated laser lines (green or red) over long distances
- Dual-sided illuminated digital display for easy reading
- Visual arrow indicators for precise alignment
- Adjustable acoustic signals with volume control (loud and quiet modes)
- Two sensitivity settings: Fine (±1/32 in) and Coarse (±1/8 in)
- Waterproof and dustproof with IP66 rating
- Integrated magnet system and mounting bracket for versatile use
- Battery status indicator
- Up to 45 hours operating time
Specifications:
- Laser Type: Cross-line with plumb dots
- Working Range: Up to 130 ft (40 m)
- Battery Type: 12V Li-Power 2.0 Ah
- Runtime: Up to 20 hours
- Charging Time: Approx. 45 minutes
- Receiver Sensitivity: ±1/32 in (fine), ±1/8 in (coarse)
- Receiver Protection Rating: IP66
- Receiver Line Height: 3-1/2 in (90 mm)
- Receiver Runtime: Up to 45 hours
Includes:
- (1) LAX 500G Cross Line and Plumb Laser
- (1) REC 230 RG Line Receiver
- (1) 12V Li-Power 2.0 Ah Battery (07626)
- (1) SC30CAS Charger
- (1) Laser Base
- (1) Wall Bracket
- (1) Target Plate
- (1) Carrying Case
