Overview:

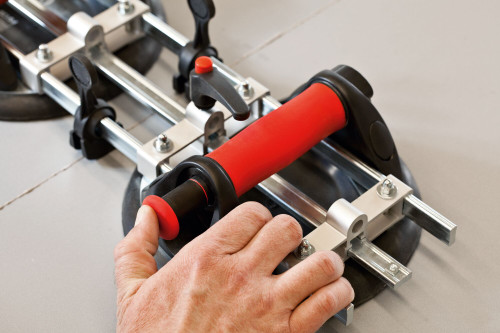

Vacuum pumps with control function: The required vacuum is generated with only a few movements of the pump - for a maximum vacuum and top clamping force up to 1200N. The status of the vacuum can be checked at any time via a marking ring on the pump tappet and brought back up to the maximum by repeated pumping.

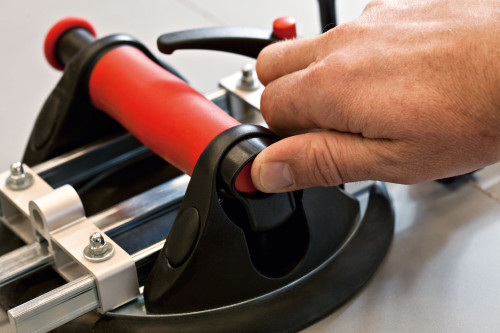

Release button: By simply pressing the release button, the vacuum disappears and the seaming tool can be removed quickly.

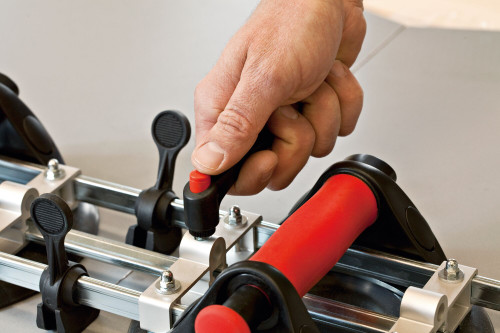

Quick adjusting screw: To quickly adjust the distance, simply undo the screws and slide the suction cups into the desired position via the guide rails.
Sturdy construction: The proven BESSEY all-steel rails, which run in anodised aluminium profiles, keep the suction discs on precisely the same level, even under high clamping pressures. This guarantees a precise finished result.
Features:
- For clamping and positioning large and potentially heavy components with a smooth surface, such as artificial stone, ceramic, granite, Corian, plastic, sheet metal and glass
- Manual vacuum pumps for maximum suction power, and therefore a maximum level of horizontal clamping force up to 1200N
- Marking ring on the pump lever to permanently check for a reliable vacuum
- Practical quick adjustment function for rapid adjustment of the distance between the two suction cups
Specifications:
- Order Number: PS130
- Opening: 5-130mm
- Length: 715mm
- Width: 215mm
- Weight: 4.08kg
- Areas of Application: Furniture and joinery works; Kitchen construction and shop fitting; Interior fittings
- Material / Surface: Base body aluminium, anodised; Rail made of galvanised steel; Spindle with trapezoidal thread in rolled steel, galvanised; Handle made of 2-component plastic; Remaining parts made of plastic
- Care Instructions: Clean the rails with solvent. Clean and oil the spindle regularly. Clean rubber plates with clear water if necessary (keep free of dust).
Warnings:
- Read and follow the instruction manual.
