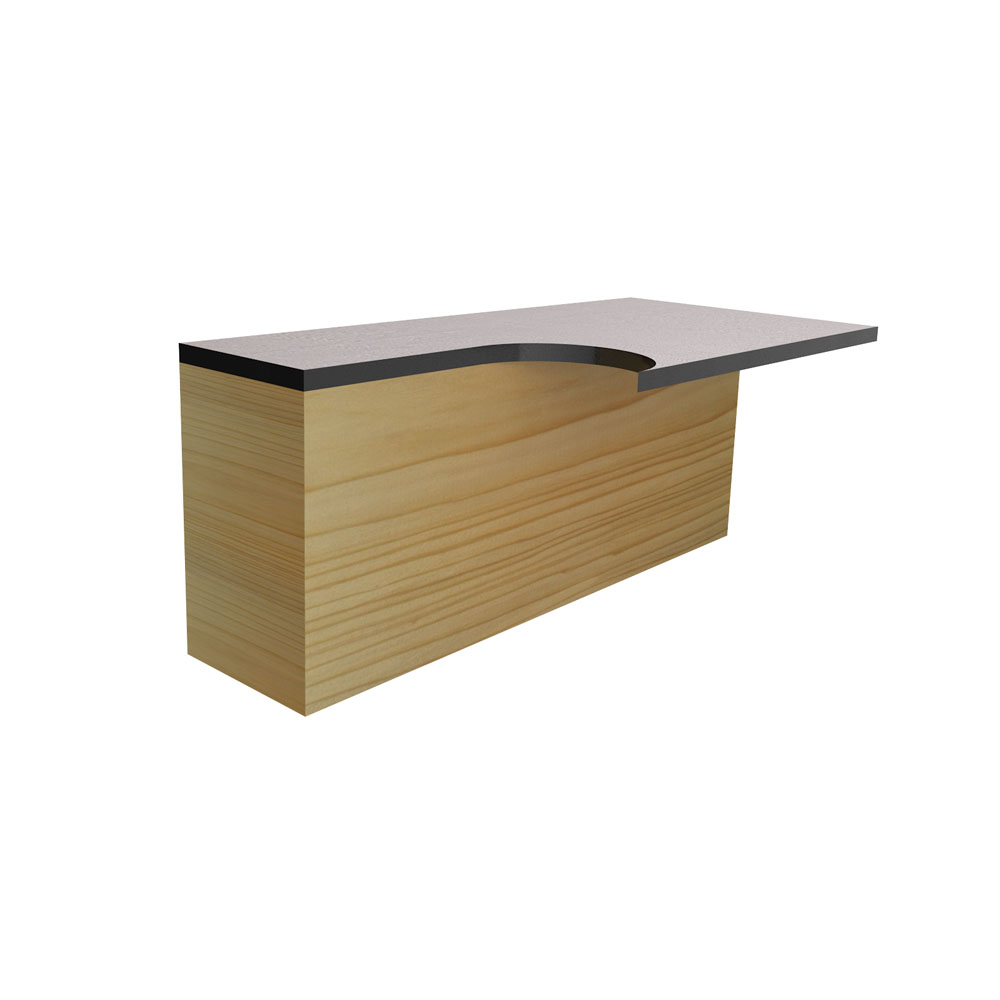

We have designed a series of truly indispensable bits available in a wide range of sizes for your woodworking needs. For precision work on laminates or quick template work with excellent finishing.
Features:
- Warning : California Proposition 65
- Axial Angle
- Tool with Bearing
Specifications:
- Item Code : 806.629.11

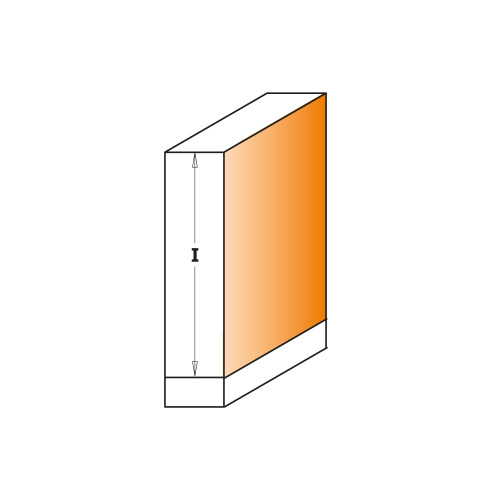

- Cutting Length : 1-1/2''
- Diameter : 1/2''
- Total Length : 3-45/64''
- Shank Diameter : 1/2''
- Number of Cutting Edges : 2
- Material : Tungsten Carbide Tipped
- Right-hand or Left-hand rotation : RH
Shop Tips:
- These bits are excellent for making through mortises. Use a straight bit (#711.130.11) to groove the through mortise area, then use the drill bit (#517.130.31) to bore a through hole at the end of the groove.
- Turn the workpiece over to end the mortise. Use the flush trim bit with a cutting length slightly longer than the fillet, following the groove made on the opposite side of the workpiece with the ball bearing guide.
- 791.062.00 Ø9,3 replace bearing 791.002.00 (Ø9,5) after resharpening.791.063.00 Ø12,5 replace bearing 791.003.00 (Ø12,7) after resharpening.791.062.00 791.002.00 791.063.00 791.003.00
- 706.064.11 - HWM706.064.11 706.064.11
- 806.064.11 - HWM806.064.11 806.064.11
- 906.693.11 Warning! Long cutting edge. Carefully make several shallow passes to prevent damaging the tool. The warranty does not cover improper or incorrect use of the tool.
