Overview:

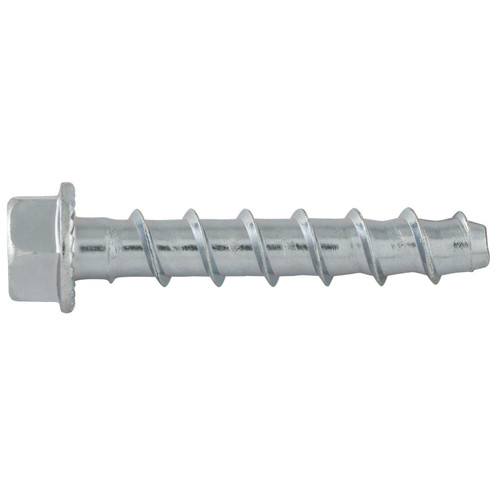

The Screw-Bolt+ anchor is a one piece, heavy duty screw anchor with a finished hex head or flat head (countersunk). Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+ is available with a standard bright zinc-plated finish or mechanically galvanized plating which offers more corrosion resistance.
Features:
- Designed for use with ANSI standard tolerance drill bits
- Patented thread design offers toughened threads for tapping high strength concrete
- Low installation torque in concrete and masonry base materials
- Universal product for concrete and grouted/solid masonry
- Fast installation with powered impact wrench, but can also be installed manually
- Can be installed closer to a free edge than traditional expansion anchors
- Fully removable and reinstallable in same hole (see www.DEWALT.com)
- Ratchet teeth on underside of hex washer head lock against fixture

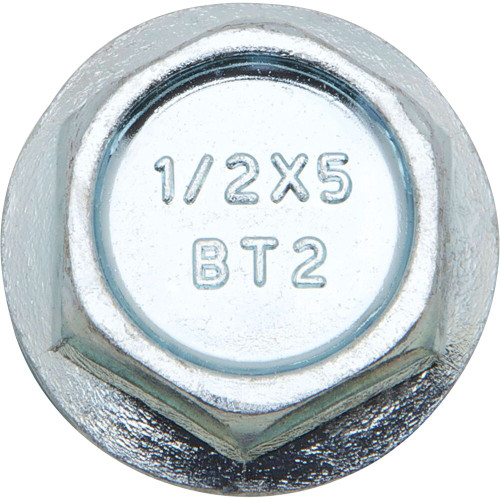

- Diameter, length and identifying marking stamped on head of each anchor
Applications:
- Racking, shelving and material handling
- Support ledgers and sill plate attachments
- Barriers, guards and temporary supports
- Glazing and window attachments
- Retrofits, repairs and maintenance
- Fencing, railing and stair stringers
- Cracked and uncracked concrete
- Wind and seismic loading (SDC A - F)
Specifications:
- Catalog Number PFM1411020: Anchor Size 1/4in x 1-3/4in, Thread Length 1-5/8in, Finish Zinc Plated, Pack Qty 100
- Catalog Number PFM1411060: Anchor Size 1/4in x 2-1/4in, Thread Length 1-5/8in, Finish Zinc Plated, Pack Qty 100
