Overview:

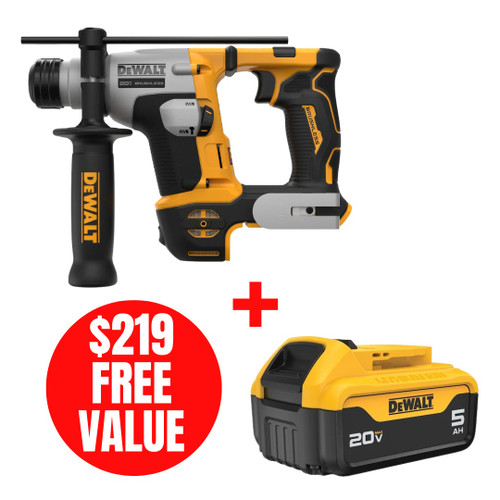

Take on jobs in tight spaces with this high-performance ATOMIC 20V MAX 5/8in Brushless Cordless SDS Plus Rotary Hammer. Featuring a brushless motor and a durable German-engineered mechanism, this tool delivers 1.4 Joules of impact energy. The lightweight and compact design makes this tool ideal for rod hanging, concrete forming, cable tray and strut mounting, clip and bracket mounting, and railing mounting. It is part of the PERFORM and PROTECT product line, integrated with the SHOCKS ACTIVE VIBRATION CONTROL System and becomes OSHA Table 1 Compliant when used with the DWH200D shroud and DWH161D1 dust extractor. Bundled with a DCB205 20V MAX XR 5.0Ah battery for extended runtime.
Features:
- Fast drilling in concrete with 1.4 Joules of impact energy
- Lightweight design - ideal for rod hanging, concrete forming, cable tray and strut mounting, clip and bracket mounting, and railing mounting
- Brushless motor and German-engineered mechanism for efficient performance and runtime
- SHOCKS Active Vibration Control System reduces vibration felt by the user at the handles compared to rotary hammers without this feature
- OSHA Table 1 Compliant when paired with DWH200D shroud and DWH161D1 dust extractor
- Mode selector switch - quickly switch between drill and hammer drill applications
Specifications:
- Voltage: 20V MAX
- Motor: Brushless
- Chuck: 5/8in SDS Plus
- Impact Energy: 1.4 Joules
- No-Load Speed: 0-1,060RPM
- Blows Per Minute: 0-1,100BPM
- Optimal Concrete Drilling: 5/32in - 1/2in
- Core Bit Capacity: 1/2in
- Modes: Drill, Hammer Drill
- Side Handle: 360° adjustable
- Vibration Control: SHOCKS Active Vibration Control System
- Vibration Measurement: 8.8 m/s²
- Tool Length: 10-7/16in
- Tool Weight: 4.4lb
Includes:
- (1) DCH172B ATOMIC 20V MAX 5/8in Brushless Cordless SDS Plus Rotary Hammer
- (1) 360° Side Handle
- (1) Depth Rod
- (1) Belt Hook
- (1) DCB205 20V MAX XR 5.0Ah Lithium-Ion Battery
