Overview:

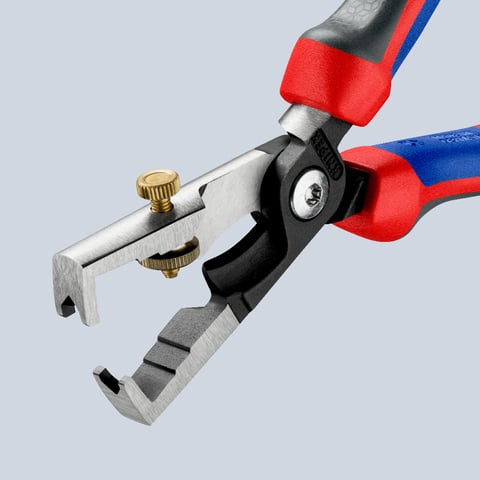

Cutting and stripping - two indispensable tools for electrical installation in one pair of pliers. The KNIPEX StriX insulation stripper with cable cutter is forged from high-grade special tool steel and is multi-stage oil hardened. The bolted joint ensures precise movement of the pliers without handle wobble. Reliably strips conductors up to 5.0mm diameter or 10mm² cross-section, and the non-slip shear blade cleanly cuts copper and aluminium cables up to 15mm (5 x 2.5mm²) without crushing. With comfort handles made of three ergonomic components for optimized handling and with two KNIPEXtend interfaces for extensions.
Features:
- Insulation strippers with cable shears - two essential electrical installation tools in one pair of pliers
- Integrated cable shears for the clean cutting of Cu and Al cables without crushing up to 15mm (5 x 2.5mm²)
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC
- Universal adjustment of the stripping blades by means of a knurled screw and lock nut
- Stripping of single, multi and fine stranded conductors with plastic or rubber insulation up to 5.0mm or 10mm² cross-section
- Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11mm and 16mm)
- Slim dimensions for easy access into confined areas
- Bolted joint ensures precise, zero-backlash operation of pliers
- High-grade special tool steel, forged, multi-stage oil-hardened
- With comfort handles (multi-component grips) for optimized handling
Specifications:
- Length: 180mm (7-1/4in)
- Surface Finish: Black atramentized / lacquered / burnished
- Handles: Comfort handles (multi-component grips)
- Cutting Capacity (Cu/Al cable, multi-stranded): 50mm² / 15mm diameter
- Stripping Capacity: Up to 10mm² / 5.0mm diameter
- AWG Capacity: 8
- Cutting Edge Hardness: Approx. 57 HRC
- Material: High-grade special tool steel, forged, multi-stage oil-hardened
- KNIPEXtend Interfaces: 2
- Made In: Germany
- Weight: 1lb
