Overview:
The Pocket-Hole Jig 520PRO is Kreg's most versatile jig yet. It's the essential jig for project builders who need an easy-to-use joinery solution wherever you work — in the backyard, on the driveway, or even in a friend's garage.
The 520PRO is loaded with features, like the 360-degree rotating handle that helps the jig adapt easily to nearly any pocket-hole project. Integrated VersaGrip clamping technology features a pump-action handle and 1:1 reverse trigger for quick, easy clamping and unclamping.
With its flexible design, you'll never have to worry about struggling with large boards or sheets to add pocket holes in the right places. Instead, the 520PRO works in almost any orientation, so you can easily reposition the jig, clamp it, and drill perfect pocket holes.
Preparing to drill pocket holes is easy. Preset material thickness settings on the drill guide block make setup fast for 1/2in, 3/4in, and 1-1/2in material. Plus, the adjustable stop offers repeatability when you need to drill multiple pocket holes in pieces of similar thickness. A sturdy steel-reinforced spine and hardened steel drill guides ensure that the 520PRO will deliver years of quality project building performance.
With a rugged handle, impact-resistant polymer, and reinforced with a steel frame, this jig is shop, jobsite, and backyard ready. The Pocket-Hole Jig 520PRO can even be transformed into a benchtop jig by adding the Kreg Pocket-Hole Jig Clamp (KPHA760) or Kreg Docking Station (KPHA750), sold separately.
Features:
- 360-degree rotating handle adjusts to nearly any pocket-hole project orientation
- Integrated VersaGrip pump-action clamping technology and 1:1 reverse trigger for quick, one-handed clamping and unclamping
- GripMaxx anti-slip clamping surface holds material firmly for worry-free drilling
- Preset material thickness settings for 1/2in, 3/4in, and 1-1/2in material — setup takes seconds
- Patented quick-setup drill bit and stop collar for fast, repeatable results
- Hardened-steel drill guides backed by a lifetime warranty
- Durable, impact-resistant polymer body with steel frame construction for shop, jobsite, and backyard use
- Docking station ready — converts to a benchtop jig with the Kreg Docking Station (sold separately)
- VersaGrip trigger handle tested over 12,000 clamping actions for long-term reliability
Specifications:
- Capacity: 1/2in, 3/4in, and 1-1/2in material thickness
- Construction: Impact-resistant polymer body, steel frame, hardened-steel drill guides
- Drill Guide Warranty: Lifetime
- Compatible Accessories: Kreg Pocket-Hole Screws, Pocket-Hole Plugs, Micro-Pocket Drill Guide Kit (KPHA530), Easy-Set Drill Bit, Docking Station (KPHA750), Pocket-Hole Jig Clamp (KPHA760)

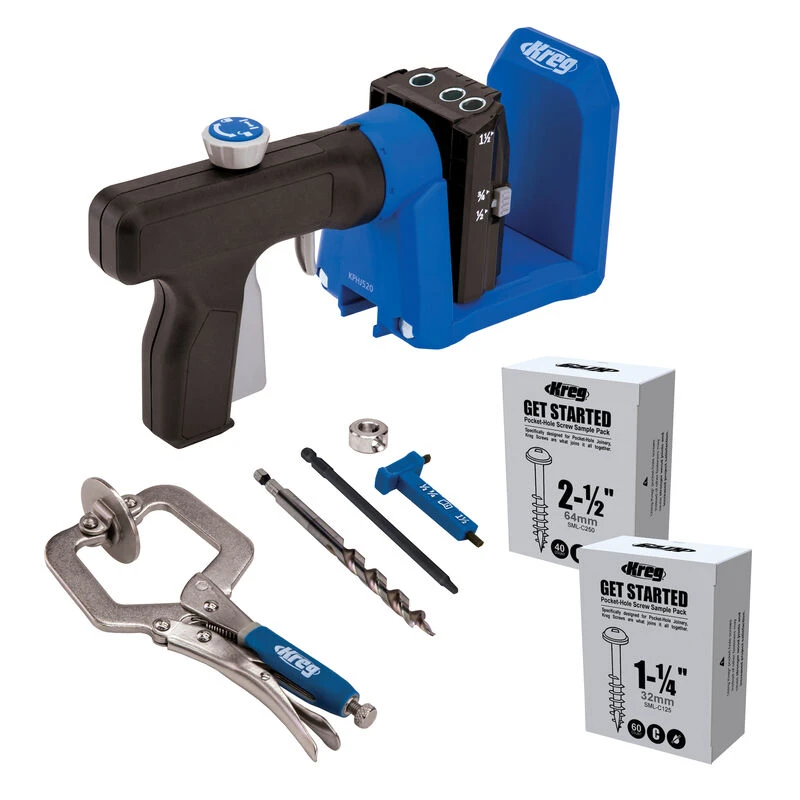

Includes:
- (1) Kreg Pocket-Hole Jig 520PRO
- (1) Easy-Set Drill Bit
- (1) 6in #2 Driver Bit
- (1) Easy-Set Stop Collar
- (1) Material Thickness Gauge
- (60) Kreg Pocket-Hole Screws
