Overview:

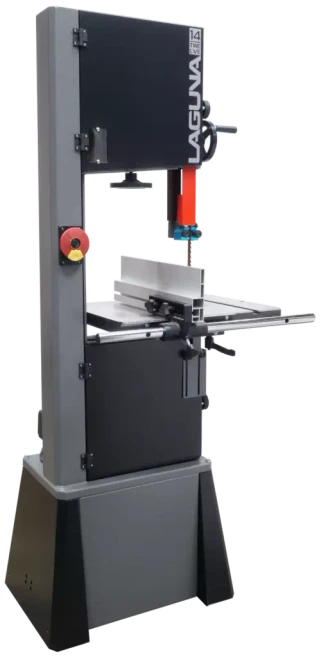

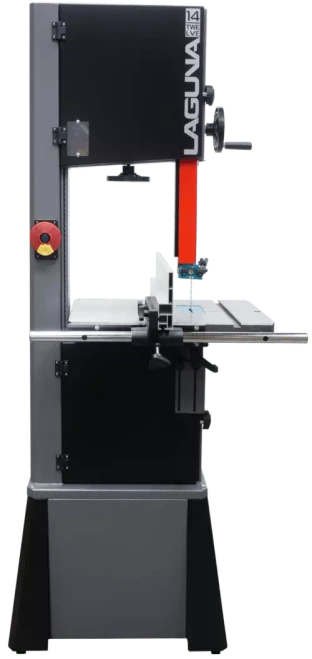

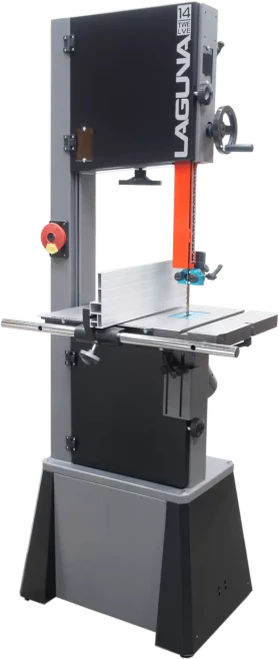

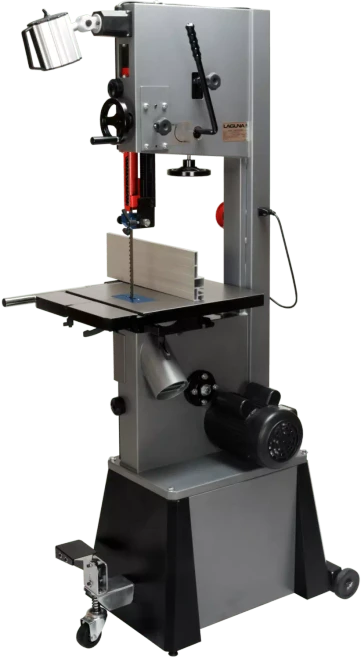

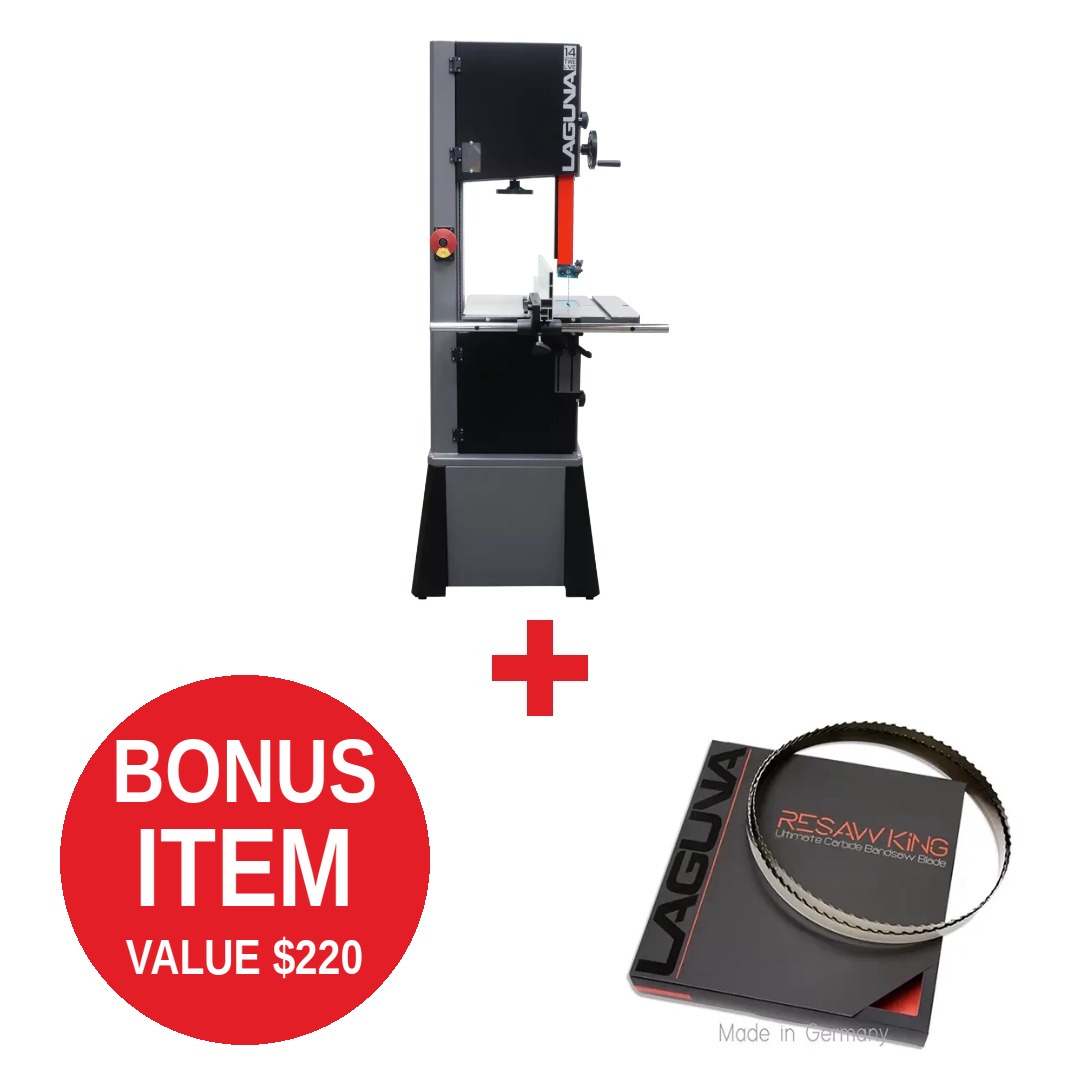

Laguna 14|12 Bandsaw packaged with a 3/4in x 115in Resaw King carbide bandsaw blade.

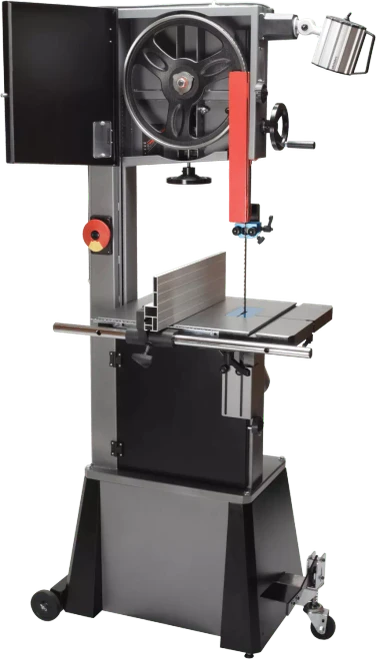

The 14|12 Bandsaw is a 110V saw that feels like a 220. Features include pyramid shaped spine, 1-3/4HP TEFC Motor, quick release tension, 115V outlet and micro polished 21in x 16in table mounted onto oversized Trunion paired with Aluminum Hi/Low Fence. Solid Cast Wheels are electronically, dynamically balanced & fitted with polyurethane one-piece tires designed to run cooler & last longer than conventional tires. The worm gear & pinion is ultra-smooth and engineered to have minimum flex even when fully extended. This is a trade mark of Laguna, just like the famous ceramic Laguna guides. Double windows allows you to check both tension & tracking while the machine is running.

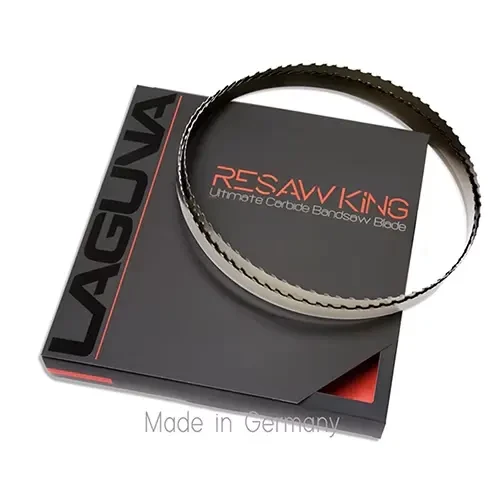

The Resaw King is perhaps the world's finest resawing blade. Manufactured with C4 carbide teeth, this blade allows you to cut ultra-smooth, wafer-thin veneers with minimal waste. Woodworkers demanding the best will be impressed.
The triple vari-tooth design minimizes vibration and lowers harmonics. Teeth are individually brazed and ground to perfection using diamond wheels on Laguna's custom-built Shark grinder designed exclusively for this blade.
The Resaw King is the ideal blade for anyone cutting hardwoods or exotics, providing ultra-smooth cut quality with minimal material loss.
Features:
- Laguna Guides
- 13in Resaw Capacity
- 4in Dust Port
- Table Height: 38in
- 110V Outlet
- Tension Window
- Tension Indicator
- Tracking Window
- Cast Iron Wheels
- Resaw King: Made from a C4 carbide-tipped alloy, the Resaw King can be resharpened 4-5 times
- Resaw King: Variable tooth spacing significantly reduces vibration while producing sleek smooth cuts
Specifications:
- Table Tilt Right: 45°
- Table Tilt Left: 7°
- Positive Stop: 90°
- Table Size: 21-1/2in x 16in
- Quick-Release Tension
- Rack & Pinion Upper Guide
- Heavy Duty Cast Trunion: 8in x 13in
- Included: 6ft Cord With Plug
- Plug: NEMA 5-15P
- Premium Anodized Aluminum Throat Plate
- Hi/Low Aluminum Fence: 18in x 5-1/2in x 1/2in
- Dual Voltage Motor: 115/230, Pre-Wired 115V
- Motor: 14/7A TEFC
- HP: 1-3/4, 115/230V
- Safety Key
- Stand Included
- Blade Length: 115in
- Min Blade Width: 1/8in
- Max Blade Width: 3/4in
- Shipping Weight: 350lb
- Shipping Dimensions (L x W x H): 55in x 22in x 25in
- NEMA Plug: 5-15P
- Cord: 6ft
- Resaw King Blade Size: 3/4in x 12-14-16mm Vari Tooth Pitch x 115in
