Recalibrating All 10” Bandsaws

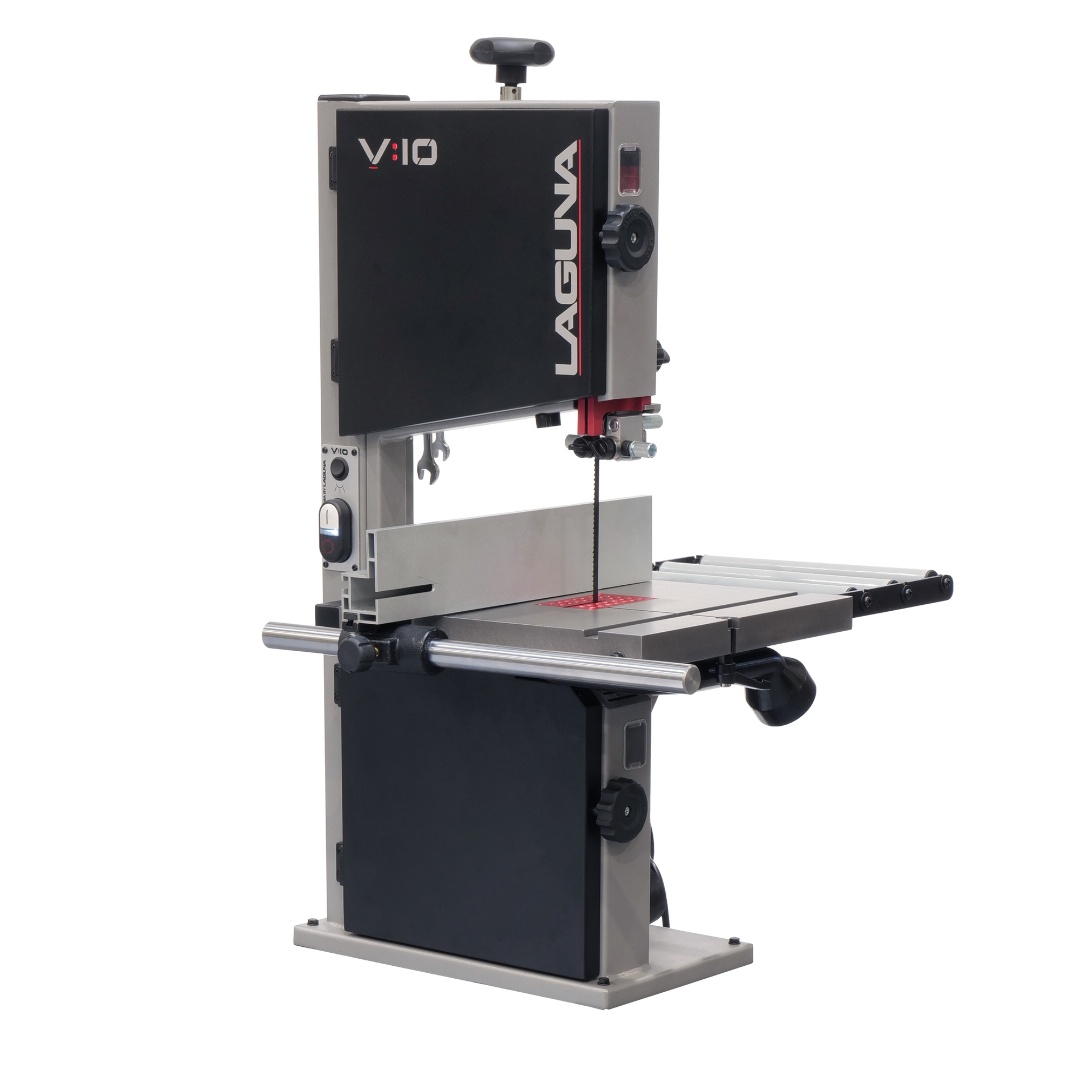

The All-New Laguna V:10 110V, 1HPbandsaw leads the competition with many Best-In-Class features for 10” bandsaws. Our smallest bandsaw is loaded with innovative features normally found in larger machines. These features along with the superior performance of the V:10 make it the best value for the price in 10” bandsaws.
Best-In-Class Features:
● Cast Iron Wheels – Only 10" woodworking bandsaw on the market with this feature
● 1 HP Induction Motor – Delivers consistent power for demanding cuts
● 5.75” Resaw Capacity – Best for 10” Bandsaw
● Advanced Dust Collection – Dual dust ports including thru-table extraction for cleaner operation
● Integrated Lighting – Built-in LED work light with 120V outlet for optional auxiliary lighting
● Quick-release magnetic under-table dust port
● Perforated Throat-Plate Insert with levelling screws
● Roller Bearing blade guides with micro-adjustment
● Hi/Low fence with solid steel rail
● Dual blade tracking windows
● Quick-release blade tension lever
● Dual blade speeds
Specifications:
● Motor - 1 HP Induction Motor
● Power - 120 Volt 60 Hz
● Flywheel Size - 10” Diameter
● Resaw Height - 5.75” (146 mm)
● Throat - 9-5/8” - 245 mm)
● Blade Length - 70-1/2” (1791 mm)
● Blade Width - Min. 1/8” - Max 1/2” (3.18 - 12.7 mm)
● Blade Speed - 1515 High / 3280 Low Ft/Min - (462 / 1000 m/min)
● Table Size - 13-3/4” x 12-1/2” (350 x 318 mm) (+ 1.25” left extension)
● Table Tilt - Left -5° / Right 45°
● Table Height - 14-1/2” (368 mm) (without optional stand)
● Dust Port Diameter - 2-1/2” x 2 (64mm)
● Base Size - 9-1/4” x 15-3/4” (235 x 400 mm)
● Overall Size - 22-1/2” x 21” x 34-1/2” (546 x 533 x 876 mm) LxWxH
● Included: 3/8” Blade
Optional Equipment:
● Adjustable Height Stand - 110001
● Roller Outfeed Table - 110004
● Caster Set - 110002
● 3-Blade Combo Pack - 110003
● Auxiliary LED Work Light – ALEDSPINE
● Magnetic Base for Auxiliary Lamp - ALED-STRONGMAG
● Resaw King Blade - BBRK-12-7012
