Overview:

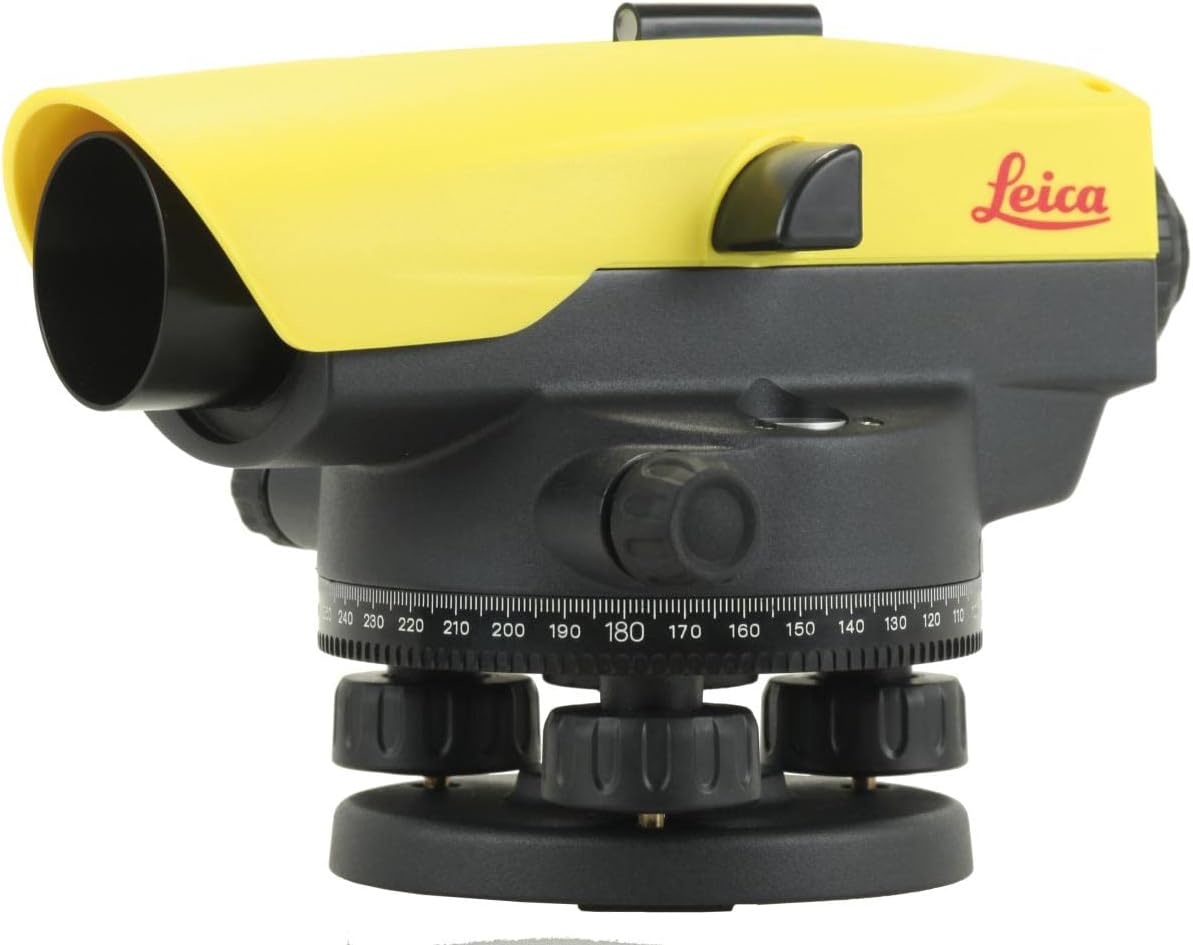

The Leica NA524 is a professional automatic level offering 24x magnification and a distinctive, proven design built for accurate measurements even on the most difficult levelling sites. Its rugged construction is built to withstand the harshest field conditions, making it a reliable choice for year-round outdoor use in surveying and construction layout.
Features:
- Quick and easy measurements with consistent, repeatable accuracy
- Unique design delivers the highest quality of results for all levelling needs
- Manufactured for the most rugged sites and the harshest conditions
- Backed by the expert knowledge of Leica Geosystems with more than 270 service centres worldwide
- Top-notch manufacturer warranty
Specifications:
- Standard deviation: 1.9mm / km (double-levelling, ISO 17123-2)
- Telescope image: Upright
- Magnification: 24x
- Objective aperture: 36mm
- Shortest target distance: < 1.0m
- Field of view at 100m: < 2.1m
- Multiplication factor: 100
- Additive constant: 0
- Working range: +/-15'
- Setting accuracy (standard deviation): < 0.5"
- Sensitivity: 8' / 2mm
- Graduation: 360 degrees
- Weight: 1.5kg
- Operating temperature: -20 to +50 degrees C
- Protection: IP56
Includes:
- Automatic Level
- Carry Case
- CD User Manual
