Overview:

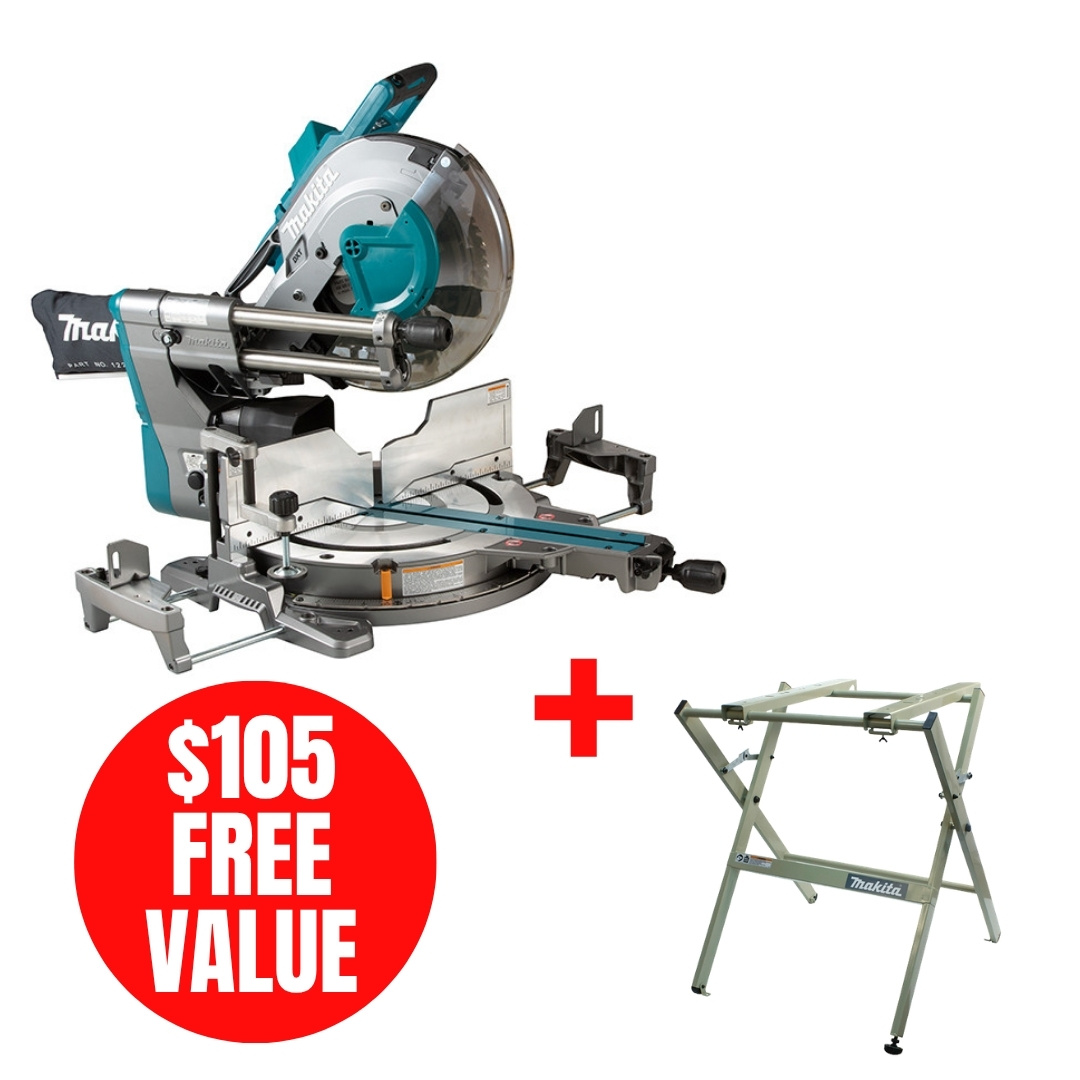

This Atlas bundle pairs the Makita LS003GZ 40V MAX XGT Brushless 12in Dual Bevel Sliding Compound Miter Saw with a bonus Makita Folding Miter Saw Benchtop Stand (198688-9). The LS003GZ delivers the power of a corded tool in a cordless platform, with the 40V MAX XGT BL motor enabling cutting as fast as a corded slide compound miter saw. Cutting capacity of up to 203mm crown moulding (vertically nested), 171mm baseboard (vertical), and 382mm crosscuts at 90 degrees. The included folding benchtop stand provides a stable, portable work surface for jobsite use.
Features:
- AWS (Auto-Start Wireless System) uses Bluetooth technology to communicate between tool and vacuum for wireless control when used with Makita AWS cordless tools
- Independent AWS push-button switch allows operator to run dust extractor when miter saw is not running for maximum dust collection and cleaning after operation
- Brushless DC motor with high power to weight and size ratio generates less heat buildup and is ideal for prolonged use in manufacturing and production applications
- "Zero clearance" rail forward design enables saw to be placed against wall to maximize effective work space
- Extendable sub-tables help stabilize long material cuts
- Shadow line projects cut line onto work material for precise alignment
- Dual zone dust extraction ports suppress dust scattering of wood chips
- LED light illuminates the working area for improved visibility
- Precision miter angle adjustment achieved simply by turning a knob on the turn base
- Large bevel lock lever is easy to operate even with saw placed close to the wall
- Constant speed control maintains stable speed under heavy load
- eXtreme Protection Technology (XPT) offers maximum protection against dust, debris, and liquids
Specifications:
- Voltage: 40V MAX XGT
- Battery: BL4040 (40V, 4.0Ah - sold separately)
- Blade Size: 12in (305mm)
- Max Crosscut at 90 degrees: 382mm
- Max Crown Moulding (vertical nested): 203mm (8in)
- Max Baseboard (vertical): 171mm (6-3/4in)
- Bevel Range: 0 degrees to 48 degrees (dual bevel)
- Miter Range: 0 degrees to 60 degrees left and right
- Positive Stops: 0, 15, 22.5, 31.6, 45, 60 degrees (left and right)
- Motor: Brushless DC (BL)
- No-Load Speed: 3,200 RPM
- Bonus: Makita Folding Miter Saw Benchtop Stand 198688-9
Includes:
- (1) Makita LS003GZ 40V MAX XGT 12in Sliding Compound Miter Saw (Bare Tool)
- (1) 12in 60T Carbide-Tipped Saw Blade (B-66983)
- (1) Dust Bag (122852-0)
- (1) Vertical Vise (126617-2)
- (1) Triangle Rule (762001-3)
- (1) Holder 90 (327145-2)
- (1) Hex Wrench 6 (781044-6)
- (1) Makita Folding Miter Saw Benchtop Stand 198688-9 (Bonus)
