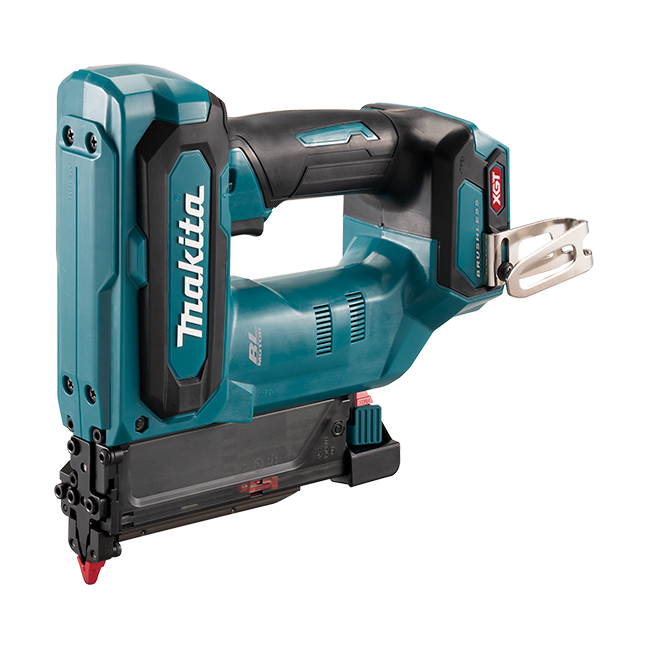

Makita MAK-PT001GZ 40V MAX XGT Cordless 23 ga. Pin Nailer (Tool Only)



  • Tool Only, Batteries and Charger Sold Separately.
  • Nose Adapter (422844-2)
  • Safety Goggles (195246-2)
  • Hex Wrench 3 (783201-2)
  • Hook (346317-0)


  • Brushless DC motor with high power to weight ratio generates less heat build up and is ideal for prolonged use in manufacturing / production applications
  • Low reaction force mechanism for easy, high-quality nailing of long pins in hard density materials
  • Slim contact tip design enables precise fastening in wood trim, crown molding, baseboard, cabinetry and other woodworking applications!
  • On-board depth control dial for quick and easy adjustment
  • Trigger lock-off feature prevents accidental firing for increased operator safety
  • Anti-dry fire mechanism prevents added wear on drive pin
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Magazine window enables fast identification of remaining pin capacity
  • LED job light with pre-glow and after-glow features illuminates work area
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation


  • Battery Capacities: 40V Max Li-Ion
  • Magazine Capacities: 100 nails
  • Gauge: 23 ga.
  • Pin Length: 5/8", 11-16", 1", 1-3/16", 1-3/8" (15, 18, 25, 30, 35 mm)
  • Vibration Level: 2.5 m/s²
  • Noise Level: 79 dB(A)
  • Overall Length: 10-3/8" (265 mm)
  • Net Weight: 3.8 lbs (1.7 kg)
