Overview:
The Milescraft 1348 DrillMatePRO is a professional-grade portable drill press that brings guided, repeatable drilling to any job site or workshop. Its all-metal construction - machined aluminium guide head with bronze bushings - provides the rigidity and accuracy normally associated with a bench-mounted drill press, in a portable package. The 1/2in (13mm) keyed chuck with a 3/8in hex spindle accepts the full range of drill bit sizes for heavy-duty work. Drill angles from 0 to 60 degrees are infinitely adjustable for angled boring work. Arrives fully assembled out of the box.
Features:
- All metal construction - machined aluminium guide head with bronze bushings for durability and precision
- Large 1/2in (13mm) keyed chuck handles all standard drill bit sizes
- Infinite angle adjustments between 0 and 60 degrees
- Extruded aluminium guide head with bronze bushings for smooth, controlled travel
- Dual spring design for increased balance and control while drilling
- Independent depth stop with its own guide bar - no interference with springs
- Built-in V-groove base channel holds and centres round stock for drilling
- Guide head lock feature holds position when changing bits or setting depth
- Large rubber-coated handles add extra control
- Built-in rubber feet prevent movement and protect the workpiece
- Compatible with the separately available 1349 DrillFence edge guide
Specifications:
- Material: Machined aluminium
- Chuck: 1/2in (13mm) tapered B16
- Chuck key: 1/2in (13mm)
- Spindle size: 3/8in (9.5mm) hex
- Bearings: Dual ball bearing spindle
- Drilling angles: 0 to 60 degrees
- Drill bit clearance: 9in (229mm)
- Travel with springs: 6in (152mm)
- Travel without springs: 8in (203mm)
- Travel without springs + depth stop: 8.5in (216mm)
- Base opening: 3.5in (89mm)
- Base dimensions: 7-1/16in x 7-1/16in (180mm x 180mm)
- Guide bar diameter: 0.55in (14mm)
- Distance between guide bars: 4-3/8in (111mm)
- Product height: 13-5/8in (346mm)

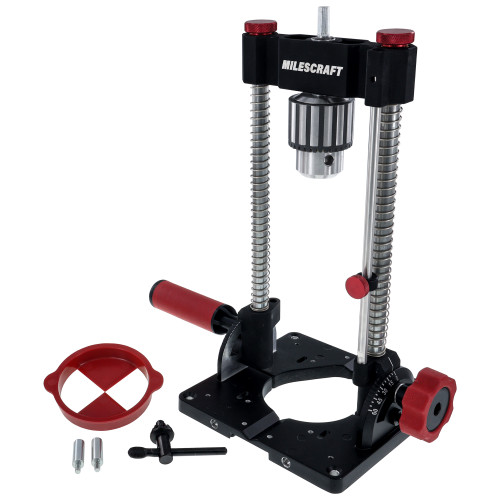

Includes:
- DrillMatePRO (assembled)
- Angle Adjust Knob
- Support Handle
- Centering Pins (2)
- Alignment Disk
- 1/2in Chuck Key
