Overview:

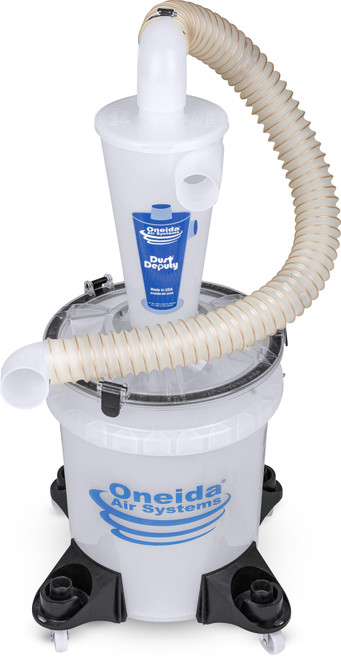

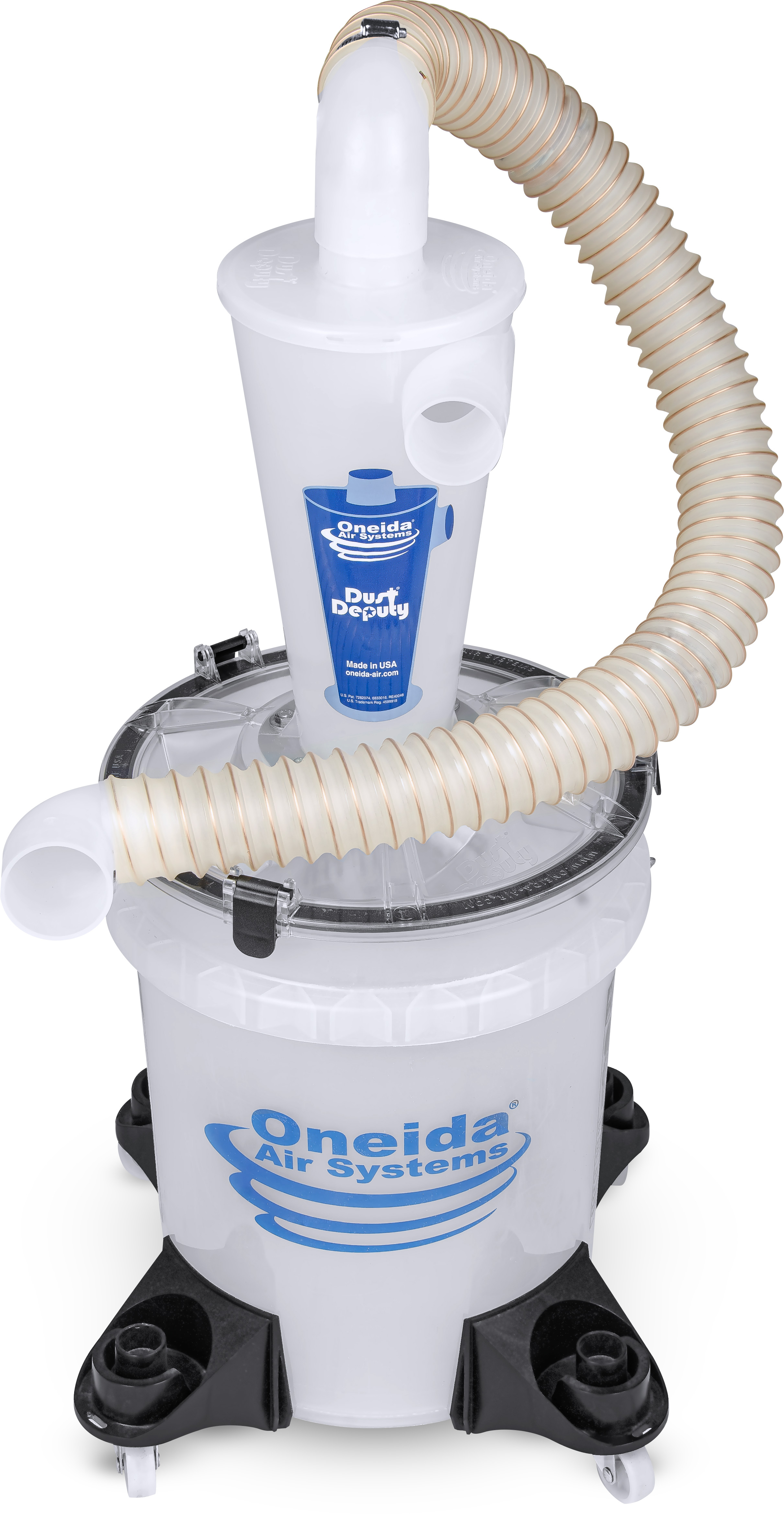

The original and still the best! Now 20% more efficient with Neutral Vane Technology, the Dust Deputy Deluxe Cyclone Kit lets you work the way you want to. Injection molded from a translucent anti-static resin, the unique design of the Dust Deputy cyclone uses centrifugal force to capture and remove up to 99.9% of dust and debris from the air-stream before it reaches your vacuum's filter, eliminating clogged filters and suction loss! The Dust Deputy will save you significant time and money on expensive replacement filters and dust bags, and keeps your wet/dry vac operating at peak performance! This simple and efficient design can be adapted for use with any make, size, or model shop vacuum and features tapered 2.0in ports that fit the cuffed 2.5in hoses that come standard with most shop vacuums.
The buckets included in the Dust Deputy Deluxe Kit are made from a thick, heavy-duty plastic that is up to 40% thicker than competing buckets, and are fully collapse-proof under high vacuum pressures.
Features:
- Original cyclone design stops up to 99.9% of fine dusts and bulk debris from clogging your vacuum's filter - eliminating suction loss while saving you time and money on expensive replacements
- Neutral-vane technology improves separation efficiency by 20%
- All-clear components let you see how full the bin is from far away
- Upgrades any make and model shop vacuum with 1.5in to 2.5in hose fittings
- Collapse-proof 5-gallon bucket will not fold under high vacuum pressures
- Reinforced, quick-release, latching cyclone lid allows for fast and easy emptying
- Caster Mounts widen the cyclone kit's base for a highly stable and portable setup
- Highly flexible, wire-reinforced, polyurethane vacuum hose
- Anti-static components significantly reduce the likelihood of static shocks
- Patented design - Made in the USA
Specifications:
- Separation Efficiency: Up to 99.9%
- Bucket Capacity: 5 gallon
- Inlet Port: 2in O.D. (tapered), 1-3/4in I.D.
- Outlet Port: 2in O.D. (tapered), 1-3/4in I.D.
- Hose Compatibility: 1.5in to 2.5in hose fittings
- Cyclone Material: Translucent anti-static resin (All-Clear)
- Construction: Injection-molded
Includes:
- (1) Dust Deputy Cyclone Separator (all-clear, anti-static)
- (1) 5-Gallon All-Clear Collapse-Proof Bucket
- (1) Cyclone Lid with quick-release latch
- (1) Wire-reinforced polyurethane vacuum hose
- (1) Elbow adapter
- (1) Caster Mounts with external stabilizing mounts
- Hardware (gasket, clamp band, O-ring, bolts, washers, nuts)
Warnings:
- Not for use in positive-pressure applications (i.e., when connected to a blower instead of a vacuum) - a container with a locking lid is recommended for blower applications
- For use with wood dust only; all other materials should be reviewed by a Oneida Air Systems technical representative prior to use
- Not for use with flammable, explosive, or combustible materials
- Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes
