Overview:

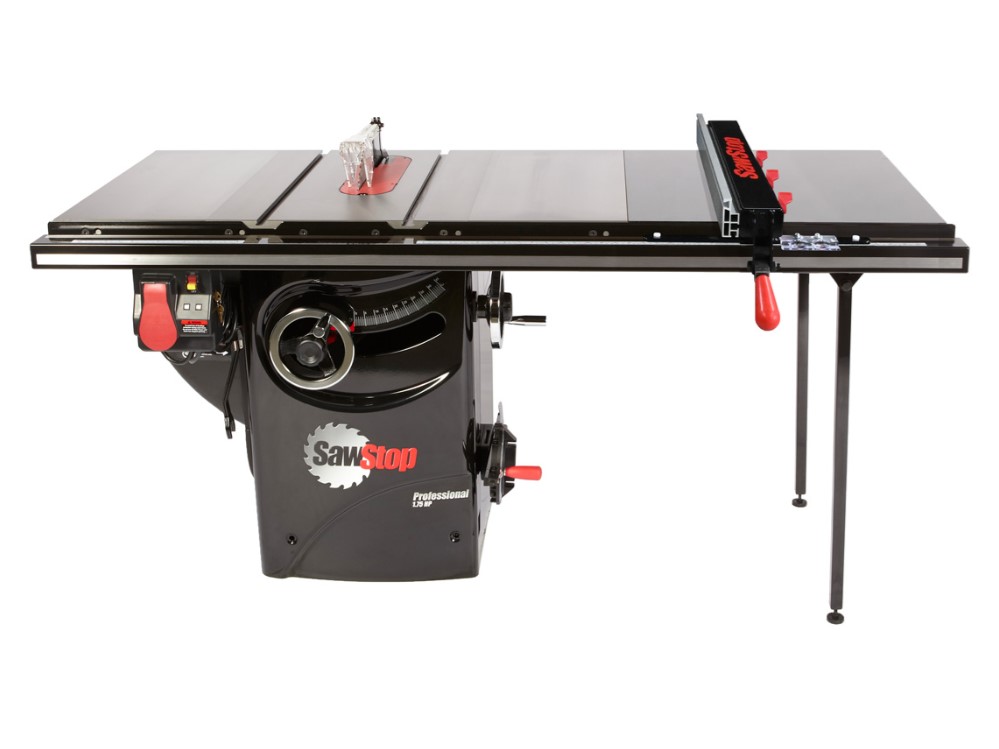

Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw. The 36in Professional T-Glide Advance Fence System provides smooth operation, three operating positions (high, low, L-fence), a dovetail groove for attaching accessories and jigs, precision measurement with two magnifying indicators (high and low position) and sure lockdown without deflection. SawStop's patented Safety System stops a spinning blade on contact with skin in less than 5 milliseconds, and drops it below the table, minimizing a potentially life-altering injury to a mere scratch.
Features:
- SawStop patented Safety System stops a spinning blade on contact with skin in less than 5 milliseconds, dropping the blade below the table surface
- 36in Professional T-Glide Advance Fence System with three operating positions (high, low, L-fence), dovetail groove for accessories and jigs, and two magnifying measurement indicators
- Trunnion and arbor built for precision, strength, and stability
- Gas piston elevation delivers smooth and easy adjustability
- Table flatness measured diagonally at 0.010in maximum gap
- 99% dust collection above the table with available dust collection blade guard (TSG-DC, sold separately) and below the table with advanced blade shrouding
- Available Overarm Dust Collection (TSA-ODC, sold separately) routes dust away from the blade into a 4in port
- On-board computer constantly checks all systems to ensure reliable, safe operation
- Motor configurable from 120V to 220V with optional kit (available for purchase separately)
Specifications:
- Model: PCS175-ATGP36
- Motor: 1.75HP, 120V, 14A (configurable to 220V with optional kit)
- Motor Configuration: 60Hz TEFC
- Blade: 10in, 40-tooth professional grade, 5/8in arbor
- Max. Depth of Cut (0 degrees): 3-1/8in
- Max. Depth of Cut (45 degrees): 2-1/4in
- Max. Rip Right of Blade (36in Fence): 36-1/2in (with optional 36in rails)
- Max. Rip Left of Blade: 12-1/2in
- Dado Diameter: 8in (requires dado brake cartridge & insert)
- Dado Max. Width: 29/32in
- Table in Front of Blade (max. elevation): 10-1/4in
- Table Behind Blade (max. elevation): 7-1/2in
- Hand Wheels: 7in diameter, cast iron with chrome handle
- Overall Dimensions (36in): 69-1/8in W x 33in D x 34in H
- Saw Body Footprint: 19-3/8in W x 19-3/8in D (Cabinet)
Includes:
- (1) 10in Professional Cabinet Saw (PCS175)
- (1) 36in Professional T-Glide Advance Fence Assembly
- (1) Rails & Extension Table
- (1) Micro Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10in 40-Tooth Blade
- (1) Standard Lockdown Insert
- (1) Standard Brake Cartridge
- (1) Owner's Manual
- (2) Hardware Packs
- (1) 3mm Hex Key
- (1) 5mm Hex Key
- (1) 8mm Hex Key
- (1) Blade Spacing Adjustment Gauge
