Overview:
Vertical and horizontal workholding and reliable indexing on a variety of workpieces.

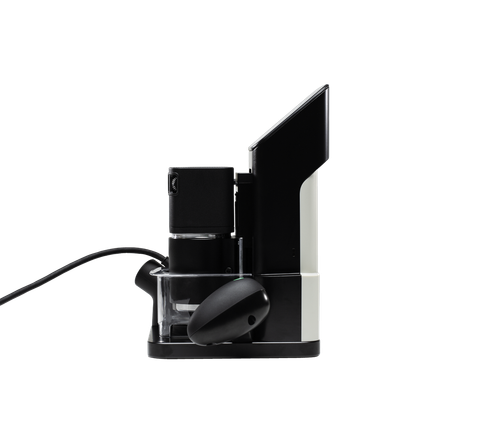

Shaper Origin is a handheld CNC router - a category of tool Shaper invented almost a decade ago. It has the familiar form factor of a traditional router, with the precision of a high-end CNC machine. You steer Origin following the path on-screen, while it makes small "auto corrections" within a 1.2cm range, leaving you with perfect results. Cutting joinery, profiles or patterns, and engraving for signage can all be handled directly on-tool, no programming required. It also works with almost any design software you use.
Features:
- Touch screen: Capacitive multi-touch full-color LCD
- Brushed Motor Spindle: Produced with Festool to Shaper specifications
- WiFi & USB: Over the air software updates, USB port allows easy offline transfer of design files
- Dust Port: Fits most standard 27mm & 36mm suction hoses
- Origin utilizes ShaperTape (the domino looking stuff) and an on-board camera to accurately track its position while you are working
- Automatic Cut Correction: Auto corrects within a 12mm range. Automatically retracts when you go out of bounds
- Highly Precise: Achieve tight-fitting joinery, inlays, accurate templates, hardware installation, and more
- Assembled in Germany: Designed and Engineered by Shaper. Assembled by Festool in Germany
- Compact Design: Get CNC performance in a hand tool footprint
- Set Up Your Workspace: Begin by scanning your work area. Origin automatically detects and stores this as a Workspace
- Add Designs: Easily create or import designs; no programming required
- Start Cutting: Switch the spindle on and get cutting. Make changes on the fly to adjust for real-world fit. Origin autocorrects your movements so you get perfect results
- Bring CNC Precision to the Jobsite: Weighing in at ~21lb (9.75kg) Origin is easy to come along for the ride from the workshop to the worksite. Shipped in a robust Systainer-3 from Tanos, Origin also stacks with your other equipment from Festool
- 3 Year Festool Warranty: All Origin purchases are backed by a 3 year Festool warranty
Specifications:
- Weight: 6.75kg
- Height: 306mm
- Depth: 227mm
- Width: 339mm
- Collet: 1/4in, accepts any commonly available 8mm shank router bits
- Depth of Cut: 43mm, digitally adjustable depth-of-cut, automated touch-off sensor
- Input Power: 120VAC (60Hz)
- Tanos Systainer3: 10.6kg (Origin packaged with accessories), 39.37cm W x 29.21cm D x 43.18cm T
- SKUs: SO2-NN, SW1-AA
Includes:
- (1) Shaper Origin (SO2-NN)

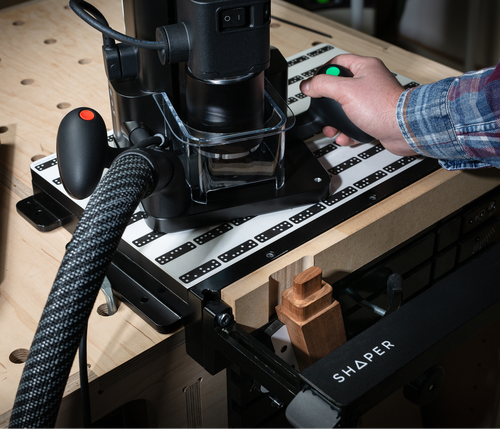

- (1) Shaper Workstation (SW1-AA)
- (1) Tanos Systainer3
- (1) ShaperTape (a single roll provides 45m of tape)
- (1) 4mm T-Hex Wrench, for spindle removal
- (1) 19mm Wrench, for loosening the collet
- Router Bits: 3mm bit, 6mm bit, 60° engraving bit
