Overview:

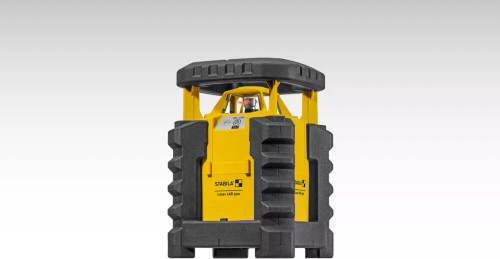

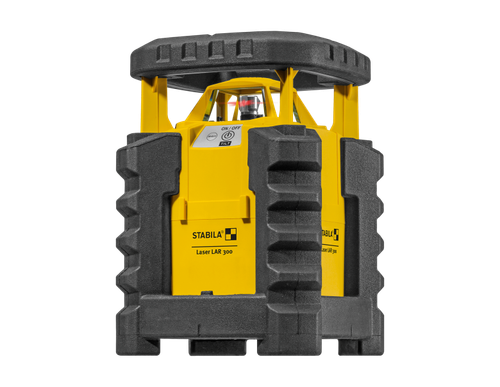

Are high accuracy, ruggedness and efficiency key when it comes to your measuring tasks? If so, the LAR 300 is the ideal partner for you. This quality product "Made in Germany" enables precise horizontal leveling, especially in outdoor areas. The laser is very easy to operate and in conjunction with the REC 300 Digital receiver, supports quick and reliable work in an area of up to 2600ft (800m). The integrated protection systems mean that nothing stops this laser - neither falling, nor rain, nor dust. Typical STABILA - because lasting precision is the deciding factor.
Highlights:
- Extremely tough thanks to the STABILA PROTECTOR system.
- Extremely simple operation.
- High-performance receiver - extremely large working area of up to 2600ft (800m) in diameter.
- Deviations from the reference height can be read directly from the receiver display.
- Waterproof and dustproof (IP 65).
Features:
- Fully automatic motor-driven rotary laser for horizontal applications - ready for immediate use with fast, self-leveling within 10 seconds.
- High leveling accuracy of ±1/8in @ 100ft (±0.1mm/m).
- Quality and precision, made in Germany.

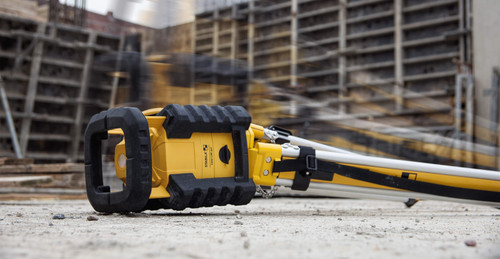

- Extremely tough thanks to the STABILA PROTECTOR system - perfect protection, even when the laser is dropped from a tripod at a height of up to 6ft (1.8m): just set up the tripod again, switch on and carry on measuring.
- Dustproof and waterproof (IP 65).
- Resistant to heat and cold from 14°F to 140°F (-10°C to +60°C).
- Exceptionally easy to operate at just the touch of a button.
- Large working area with set receiver - up to 2600ft (800m) diameter.
- Correct heights quickly - digital read-out shows you exact distance from grade, arrows point you and down.
- Receiver with visual and acoustic guidance as well as two displays.
- 5/8in thread for attaching to a tripod.
- Hard case for easy transport.
- Compatible with commercially available machine controllers.
Applications:
- In bricklaying - creating a perfect, level foundation.
- In reinforced concrete construction - concreting foundations.
- In carpentry and wood construction - adjusting the height of the ring beam.
- In civil engineering and pipeline construction - for example, trenching.
- In gardening and landscaping work - laying out garden areas, paths and paving.
Specifications:
- Laser class: 2
- Output: <1mW
- Laser wavelength: 635nm
- Self-levelling range: ±5°
- Levelling accuracy: ±1/8in @ 100ft
- Diameter of working area for set receiver: 2600ft
- Operating life: 80h
- Protection rating: IP 65
- Tripod connection: 5/8in-11
Includes:
- (1) LAR 300 rotary laser
- (1) REC 300 receiver with clamp
- (1) BST-S construction tripod
- (1) Hi/Lo elevation rod
- (1) Hard case
- (2) D 1.5V batteries
- (2) AA 1.5V batteries
