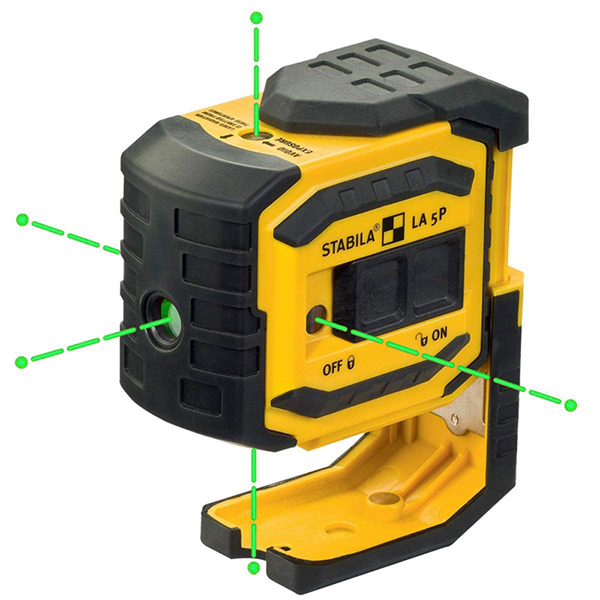

Stabila STAB-03165 LA5PG 5 Point Laser

$350.00
SKU:
STAB-03165

Features:

  • STABILA Type LA-5P, Self leveling 5 point/dot laser with pouch, framing base, target plate, metal wall mount plate and batteries.
  • Transfer plumb points from floor to ceiling and layout right angles/square.
  • 5 Bright tight dots visible over 50ft.
  • Up dot accuracy tolerance: Will not exceed 3/32in @ 30ft.
  • Down dot accuracy tolerance: Will not exceed 1/8 @ 30ft.
  • Level dot accuracy tolerance: Will not exceed 3/32in @ 30ft
  • Square dot accuracy tolerance: Will not exceed 1/16in @ 30ft
  • Warranty: Up to 2 years from the date of purchase.
  • Mechanical off/on switch with automatic pendulum lock.
  • V Groove rare earth magnetic mount is built into the housing.
  • Self -leveling range: 4.5 degrees
  • Up to 20 hours of run time on 3-AA batteries.

Specifications:

Laser class

2
Output < 1 mW
Laser wavelength 635 nm
Self-levelling range +/- 4.50°
Levelling accuracy +/- 3/16 in @ 30 ft
Laser beam accuracy (up) +/- 3/16 in @ 30 ft
Laser beam accuracy (down) +/- 1/8 in @ 30 ft
Measuring range of visible point 60 ft
Operating life 20 h
Protection class IP 54
Tripod connection 1/4"-20
