Overview:

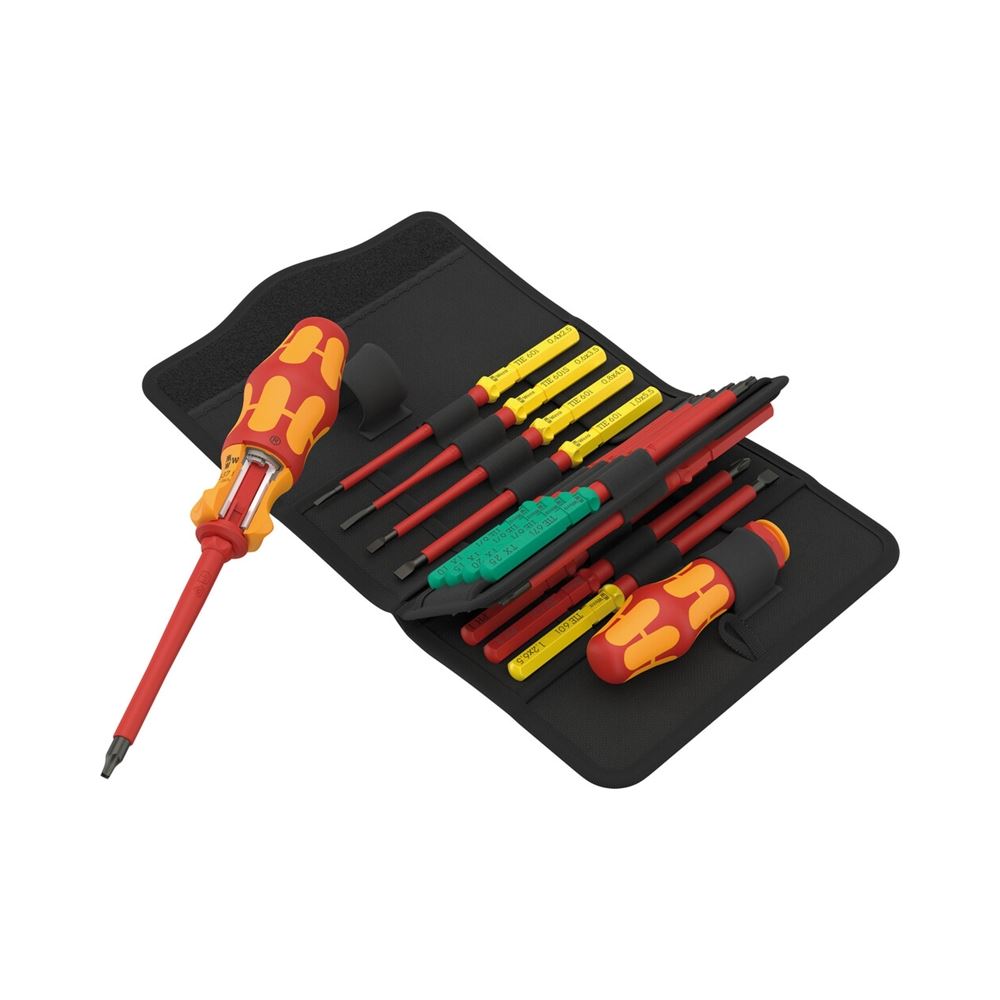

17-piece Kraftform Kompakt VDE set. One 837 i RA bladeholding screwdriver with ratchet functionality (40 teeth, 9° return angle), one 817 VDE bitholding screwdriver, 15 VDE blades with Take it easy Tool finder: Colour coding by profile and laser-engraved size indication. Individually tested tools as per IEC 60900. Individually tested in a water quench at 10,000 V for safe working at the approved voltage of 1,000 V. In a robust belt pouch.
Features:
- Imperial blade sizing — all 15 VDE interchangeable blades in SAE/Imperial dimensions
- One Kraftform Kompakt VDE 837 i RA bladeholding screwdriver with ratchet functionality (40 teeth, 9° return angle) for interchangeable blades; one 817 VDE bladeholding screwdriver for interchangeable blades
- The 837 i RA bladeholding screwdriver with ratchet integrated in the handle ensures fast and safe working
- High working speed: the ratchet can also be used to spin when screwdriving
- Ergonomic intuitive switching to clockwise/counterclockwise or position 0
- VDE blades (157mm length) with practical spinning function, anti-roll protection and Take it easy tool finder: colour coding by profile and laser-engraved size indication
- Individually tested tools as per IEC 60900 — individually tested in a water quench at 10,000 V for safe working at the approved voltage of 1,000 V
- PlusMinus screwdrivers for use in terminal blocks, control cabinets, switches, relays, and sockets
- VDE blades with reduced shaft diameter (iS) and integrated protective insulation, allow sunken screws and spring elements to be accessed
- In a robust folding belt pouch
- Compatible with Wera 2go
Specifications:
- Part Number: 05006619001
- System: Imperial (SAE)
- Pieces: 17
- Blade Length: 157mm
- Ratchet Teeth: 40
- Return Angle: 9°
- VDE Rating: 1,000V AC / 1,500V DC
- Tested to: IEC 60900 (10,000V water quench)
- Standard: GS certified
- Country of Origin: Czech Republic
Includes:
- (1) 837 i RA Kraftform bladeholding handle with ratchet (19 x 115mm) — 05057490001
- (1) 817 VDE Kraftform bladeholding handle (19 x 98mm) — 05003990001
- (2) KK VDE 62 i Phillips blades (1PH 1 x 157mm; 1PH 2 x 157mm)
- (2) KK VDE 65 i PZ/S Pozidriv/Slotted blades (1# 1 x 157mm; 1# 2 x 157mm)
- (4) KK VDE 67 i TORX blades (TX 10, TX 15, TX 20, TX 25 x 157mm)
- (4) KK VDE 60 i Slotted blades (0.4 x 2.5; 0.8 x 4; 1 x 5.5; 1.2 x 6.5 x 157mm)
- (1) KK VDE 60 iS Slotted reduced-diameter blade (0.6 x 3.5 x 157mm)
- (2) KK VDE 68 i Pozidriv blades (1# 1 x 157mm; 1# 2 x 157mm)
- (1) Robust folding belt pouch
