Overview:
Zyklop Mini ratchet for the direct mounting of the Zyklop 8790 FA special sockets with 1/4in and Hex 11 hexagon drive.
Features:
- The 8790 FA special sockets have a very low overall height (18mm), ideal for screw connections where space is limited
- Zyklop Mini 2 ratchet in a drop-forged solid steel design
- Fine-pitched ratchet mechanism, small return angle of 6°
- Switching from clockwise to counterclockwise rotation and vice versa via the reversing lever
- 10 Zyklop 8790 FA special sockets with 1/4in and Hex 11 hexagon drive and ball stop groove; chrome-vanadium
- Hollow design of the Zyklop Mini ratchet 8005 and the sockets 8790 FA; the thread rods (up to M6) can pass completely through the tool during screwdriving

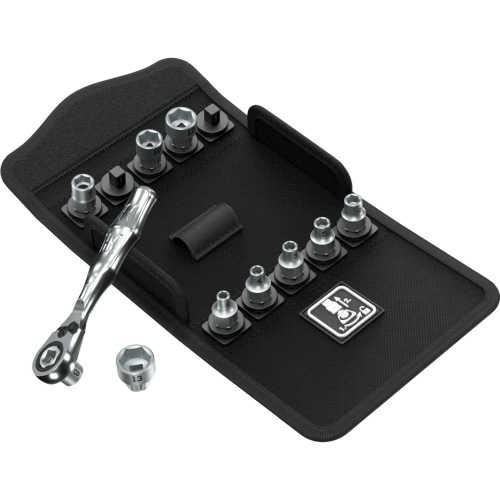

- Textile box with twist-to-unlock system: secure storage and easy removal of the sockets
- The Zyklop Mini ratchet 2: The Zyklop Mini ratchet 2 is suitable for the direct mounting of the Zyklop 8790 FA special sockets.

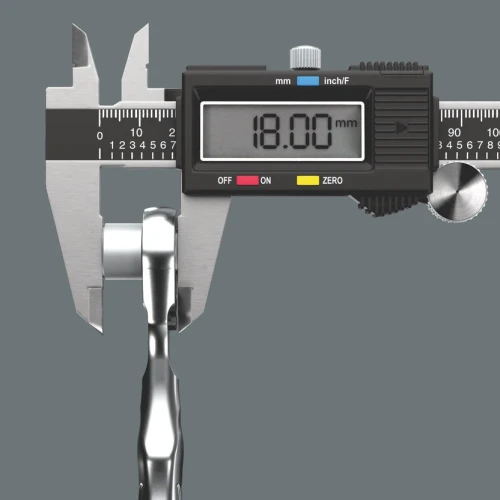

- For small spaces: With its small size, the Zyklop Mini ratchet is ideal for all particularly tight installation spaces - especially in combination with the low-profile (18mm) 8790 FA sockets.
- Small return angle of 6°: The fine-toothing mechanism of the Zyklop Mini ratchet 2 with 60 teeth allows a small return angle of 6° for precise working.
- Solid steel for high torque transfer: Thanks to the robust, drop-forged solid steel design of the Zyklop Mini ratchet, up to 65Nm can be transferred.
- Reversible clockwise/counterclockwise: Switching from clockwise to counterclockwise rotation and vice versa is easy using the reversing lever, which can also be operated with just one hand.
- Insert ratchet and sockets for thread rods: The head of the Zyklop Mini 2 ratchet is hollow in the centre - as are the 8790 FA sockets. This allows thread rods up to M6 to pass completely through the tool during use, and hexagon nuts can be tightened and loosened.
Specifications:
- Article Number: 05135021001
- EAN: 4013288238375
- Pieces: 11
- Drive: 1/4in and Hex 11 hexagon
- Socket sizes: 4, 4.5, 5, 5.5, 6, 7, 8, 10, 12, 13mm
- Socket height: 18mm
- Ratchet teeth: 60
- Return angle: 6°
- Max torque: 65Nm
- Weight: 752g
Includes:
- (1) 8005 Zyklop Mini 2 Ratchet, 107mm (05003660001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 4 x 18mm (05003665001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 4.5 x 18mm (05003666001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 5 x 18mm (05003667001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 5.5 x 18mm (05003668001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 6 x 18mm (05003669001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 7 x 18mm (05003670001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 8 x 18mm (05003675001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 10 x 18mm (05003690001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 12 x 18mm (05003684001)
- (1) 8790 FA Zyklop socket with 1/4in and Hexagon 11 drive, 13 x 18mm (05003685001)
- (1) Hook and Loop Fastener Strip 120, 120 x 50mm
