Overview:
The Bessey 660-S8 is the workhorse light-duty F-style bar clamp for welding, metal fabrication, and woodworking shops that need fast, dependable clamping pressure. Made in Germany using Bessey's own steel, this 8in capacity clamp delivers up to 726lb of clamping force across a 4in throat depth — significantly faster to set up than a C-clamp and considerably stronger thanks to Bessey's patented rail profile that delivers 20% more clamping force per spindle turn. The drop-forged U-shaped sliding arm transfers force evenly across the workpiece, while the heat-treated, high-carbon Acme threaded screw is engineered for years of dependable shop-floor service.
Features:
- All-steel construction Made in Germany using Bessey's own European steel
- Patented rail profile delivers 20% more clamping force per spindle turn for quicker setup
- Drop-forged U-shaped sliding arm provides straight-line power transmission and great stability
- High-strength electro-galvanized sliding pin T-handle, sized to match the clamp's load capacity
- Heat-treated, high-carbon Acme threaded spindle (tempered and quenched) for greater load capacity and longer service life
- Spatter-resistant finish suitable for light welding work
- Replaceable 1-1/2in standard swivel pad for field service

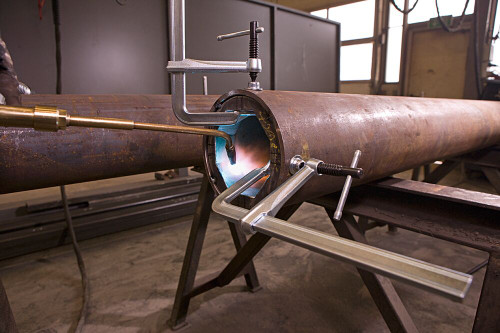

- Ideal for light welding, metal fabrication, and general shop clamping
Specifications:
- Clamping Capacity: 8in
- Throat Depth: 4in
- Clamping Force: 726lb
- Weight: 2.05lb
- Swivel Pad Diameter: 1-1/2in (replaceable)
- Spindle Diameter: 5/8in
- Spindle Threading: ACME thread
- Nominal Rail Profile: 7/8 x 11/32in
- Handle: T-Handle, steel, zinc plated
- Bar Material: Steel
- Series: Bessey 660-S (Light Duty)
- Country of Origin: Germany
