Overview:

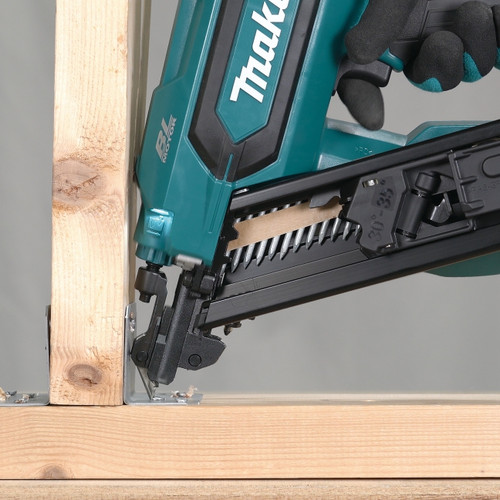

The Makita DBN640Z 18V LXT Brushless Metal Connector Nailer is purpose-built for driving nails into pre-punched holes in metal framing hardware, including joist hangers, truss clips, and restraint straps in structural timber applications. Its pneumatic spring drive system delivers consistent, low-recoil driving performance without requiring gas cartridges or an air compressor. Powered by Makita's 18V LXT battery platform, the tool delivers up to 1,000 nails on a single 6.0Ah battery charge.
Features:
- Pneumatic spring firing mechanism rapidly fires metal connector nails from 38-64mm in length
- Brushless motor provides increased efficiency, longer runtime, and reduced maintenance requirements
- Full sequential actuation mode supports controlled, single-shot nailing for enhanced safety and accuracy
- 30-35° angled collation magazine holds up to 31 nails for access to tight corners
- Anti-dry fire lockout triggers when 4-5 nails remain, preventing tool damage and empty misfires
- Tool-free driving depth adjustment for precise flush and countersink nailing
- Slim nose design improves visibility and access in tight spaces for accurate fastening in metal connectors
- LED work light with pre-glow and afterglow functions for illumination in low-light conditions
- eXtreme Protection Technology (XPT) for enhanced resistance to dust and moisture
- Operates on all Makita 18V LXT batteries
- Up to 1,000 nails per charge with a 6.0Ah battery
Specifications:
- Voltage: 18V
- Nail Length: 38-64mm (1-1/2in to 2-1/2in)
- Nail Gauge/Diameter: 3.3-4.1mm
- Collation Angle: 30-35 degrees
- Magazine Capacity: 31 nails
- Drive System: Pneumatic spring
- Firing Mode: Full sequential only
- Anti-Dry Fire: Yes (triggers at 4-5 nails remaining)
Includes:
- (1) DBN640Z Metal Connector Nailer (Bare Tool - battery and charger sold separately)

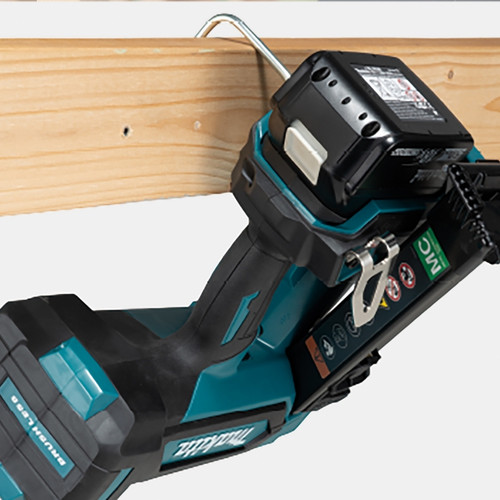

- (1) Hook Assembly (141X57-7)
- (1) Hook (347C14-9)
- (1) Hex Wrench 4mm (783202-0)
- (1) Plastic Carrying Case
