Overview:
The Milescraft HingeJigPLUS is a one-stop door installation solution for finish carpenters, renovators, and pro installers. The jig routs and installs door and jamb hinges, latches, and strike plate mortises quickly and accurately — and the included PinDoctor even helps remove your old door without damage. The padded, dual self-clamping design mounts in seconds and holds firm to ensure clean, consistent cuts, with no mounting screws or nails to mar the work. An adjustable hinge spacer creates five common hinge mortise positions (2-1/2in, 3in, 3-1/2in, 4in, and 4-1/2in), and the included templates handle three latch sizes and two strike plate sizes for full-installation versatility. Built for North American hardware standards, the HingeJigPLUS replaces a drawer of single-purpose templates with one professional-grade jig.
Features:

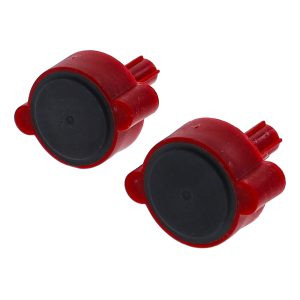

- Padded dual self-clamping design sets up quickly without screws or nails
- Adjustable settings fit all standard 1-3/8in and 1-3/4in thick doors
- Routs hinge mortises for 2-1/2in to 4-1/2in hinges (5 spacer positions)
- Reconfigures to rout hinges and strike plates on jamb / frame
- Cuts professional hinge mortises with 1/4in or 5/8in radius corners, or square (chisel required for square)

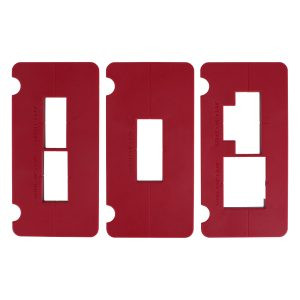

- Drop-in latch templates handle 1in x 2-1/4in, 1-1/8in x 2-1/4in, and 1-1/8in x 2-3/4in latches
- Drop-in strike plate templates rout 1-1/2in x 2-1/4in and 1-1/8in x 2-3/4in plates
- Bonus PinDoctor hinge pin removal tool helps remove existing doors
- Built-in depth setting gauge dials in router bit depth for different hinge thicknesses
- Includes custom 12mm router bit with 1/2in ball bearing for clean cuts
- Built-in storage compartments for router bit and self-centering hinge bit (sold separately)
Specifications:
- Manufacturer Part Number: 1229
- Compatible Door Thickness: 1-3/8in and 1-3/4in
- Hinge Sizes: 2-1/2in, 3in, 3-1/2in, 4in, 4-1/2in
- Hinge Corner Radius: 1/4in, 5/8in, or square (chisel required)
- Latch Sizes: 1in x 2-1/4in, 1-1/8in x 2-1/4in, 1-1/8in x 2-3/4in
- Strike Plate Sizes: 1-1/2in x 2-1/4in, 1-1/8in x 2-3/4in
- Router Bit: 12mm cutting head with 1/2in ball bearing (included)
- Door Mounting: Padded Dual Self-Clamping (no hardware required)
