Overview:

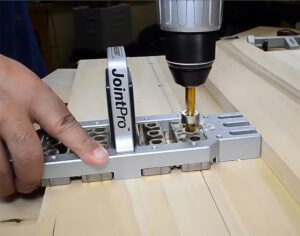

The Milescraft JointPro creates strong, accurate doweled joints for furniture, cabinetry, shelving, and casework — fast. Built around an all-steel chassis with interchangeable hardened steel bushing blocks, the JointPro lets you drill up to six matching holes per setup, so your edge, corner, and surface joints align dead-on every time. The self-clamping main body and detachable auxiliary clamp hold both workpieces firmly while you drill, and non-slip pads keep the jig from slipping or marring the wood. Two clamp positions (horizontal and vertical) make the jig flexible enough to tackle whatever joint your project calls for. Four guide bushings cover the most-used dowel sizes — 1/4in, 5/16in, and 3/8in — so the JointPro is ready to work straight out of the box.
Features:
- All-steel professional construction for daily-use durability
- Self-clamping main body holds workpieces in place — no separate clamp needed for the primary board
- Two detachable clamps allow horizontal or vertical positioning
- Auxiliary clamp lets you secure both boards simultaneously for precise hole alignment
- Interchangeable hardened steel bushing blocks drill up to 6 matching holes per setup
- Includes 4 guide bushings: 1/4in, 5/16in, 3/8in dowel sizes
- Non-slip pads prevent slipping and marring of the workpiece
- Creates strong edge, corner, and surface joints
- Multiple joint capabilities with unlimited board width
- Quality silver finish
Specifications:
- Manufacturer Part Number: 1311
- Material: All steel
- Maximum Opening Side 1: 2in
- Maximum Opening Side 2: 2-5/8in
- Holes Per Setup: Up to 6 matching
- Guide Bushings Included: 4 (1/4in, 5/16in, 3/8in dowel sizes)
- Clamp Configuration: Self-clamping main body + detachable auxiliary clamp
- Joint Types: Edge, corner, surface
- Finish: Silver
